A K 1 0 T O G A H | U P G R A D E I N S T R U C T I O N | I N/A K 1 0 -TO - G A H - E N R E V. A
6 Connect blue and pink into connections 9 and 10. The
remaining black, red, green and white wires should run up
the middle of the back of the lower CM30, as shown in Figure
42.

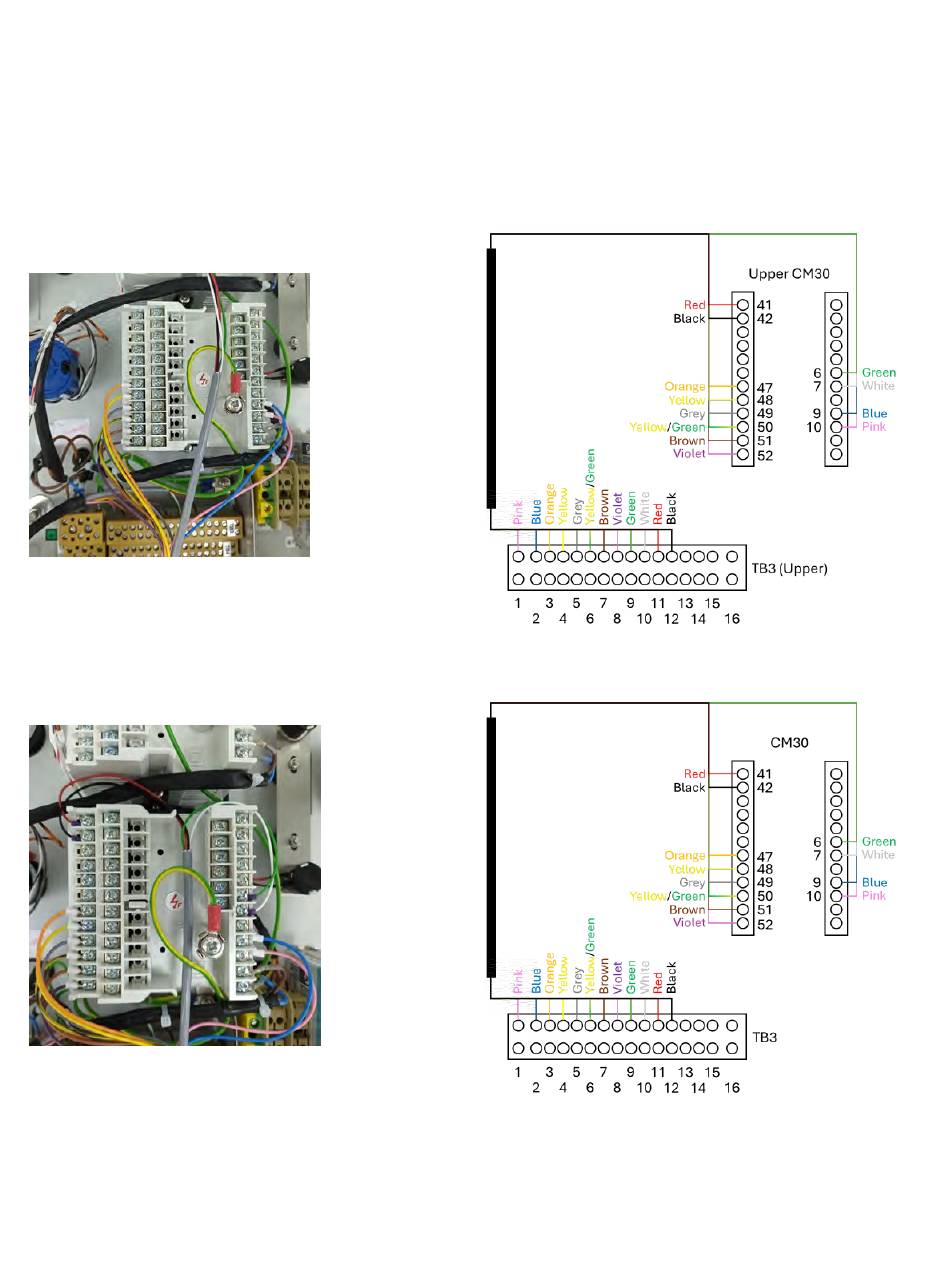

Figure 42 Blue and pink wires
7 Run the remaining cables up the center of the CM30 and
round to make the last connection into 6, 7, 41 and 42 as
shown in the wiring diagram. These four wires should track
around the top of the lower CM30 and flare outwards as
shown in Figure 43.
Figure 43 Wiring around the top of the CM30

5.9.7 Upper output cable loom

Wiring diagrams
Figure 44 Wiring diagram AK101 and AK102
Figure 45 Wiring diagram AK103 and AK104
19
