...5 Upgrade procedure
...5 .8 Install the new range selector switches
3 Slide the front half of the switch through the panel hole. The
alignment notch should ensure the correct orientation of the
switch.

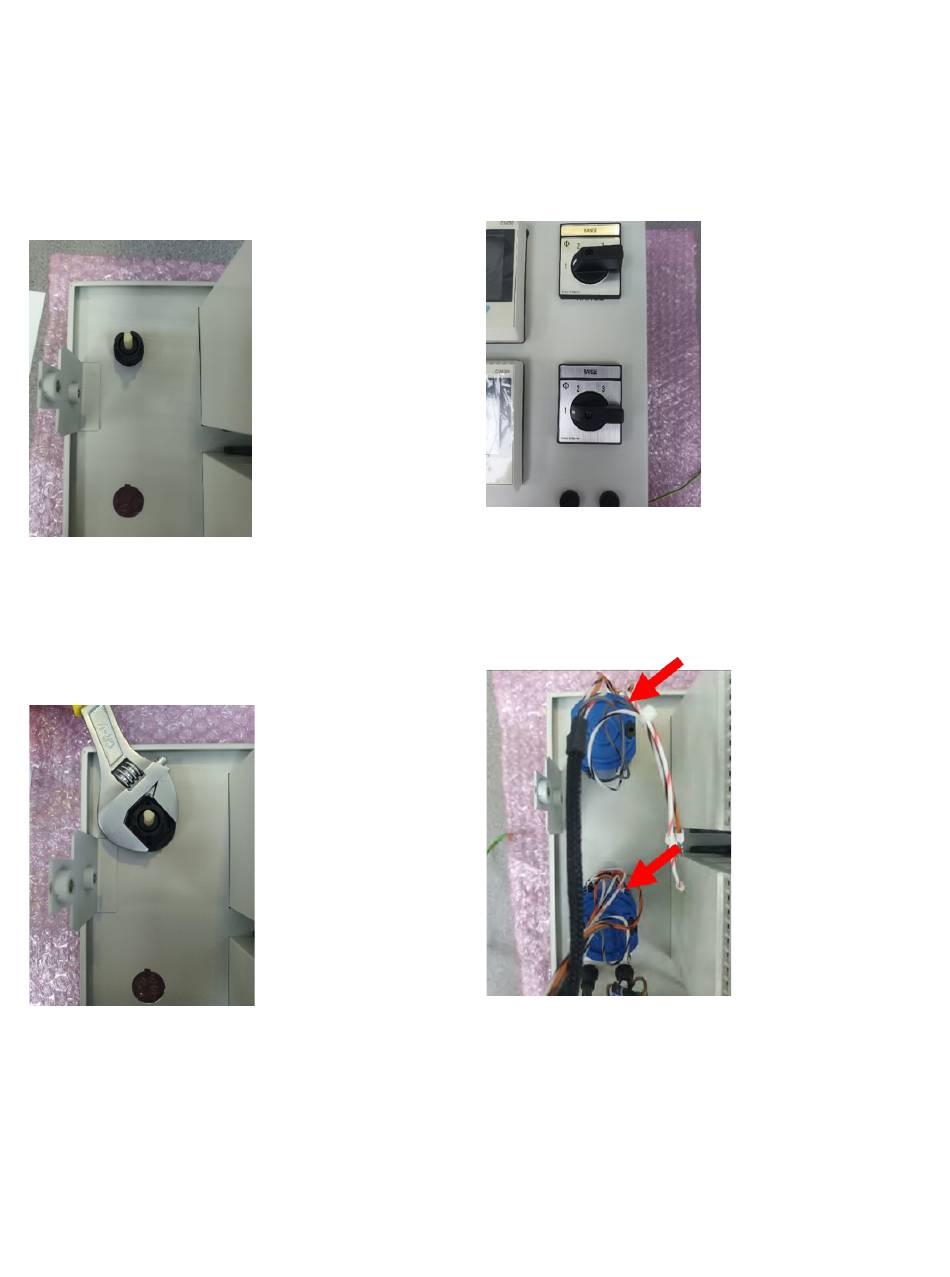

Figure 32 Front half of switch
4 Install the black nut, with the square bezel facing you. Be
careful not to overtighten. Use an adjustable spanner to get
it tight such that the switch casing does not turn in the panel
when the switch is turned. If the notch was carved well, you
should not need to tighten it much to get it to hold steady.
Figure 33 Tightening the black nut
5 AK102 only:
Repeat for the other switch.
6 Make sure that the switch(es) are set to position 1 from the
front.
Figure 34 Switch set to position 1
7 Slide the back half of the switch(es) onto the front switch
with the red lever(s) facing north east (see red arrows in
Figure 35). The connection is good when the red lever clicks
back into place.
Figure 35 Switches facing north east
