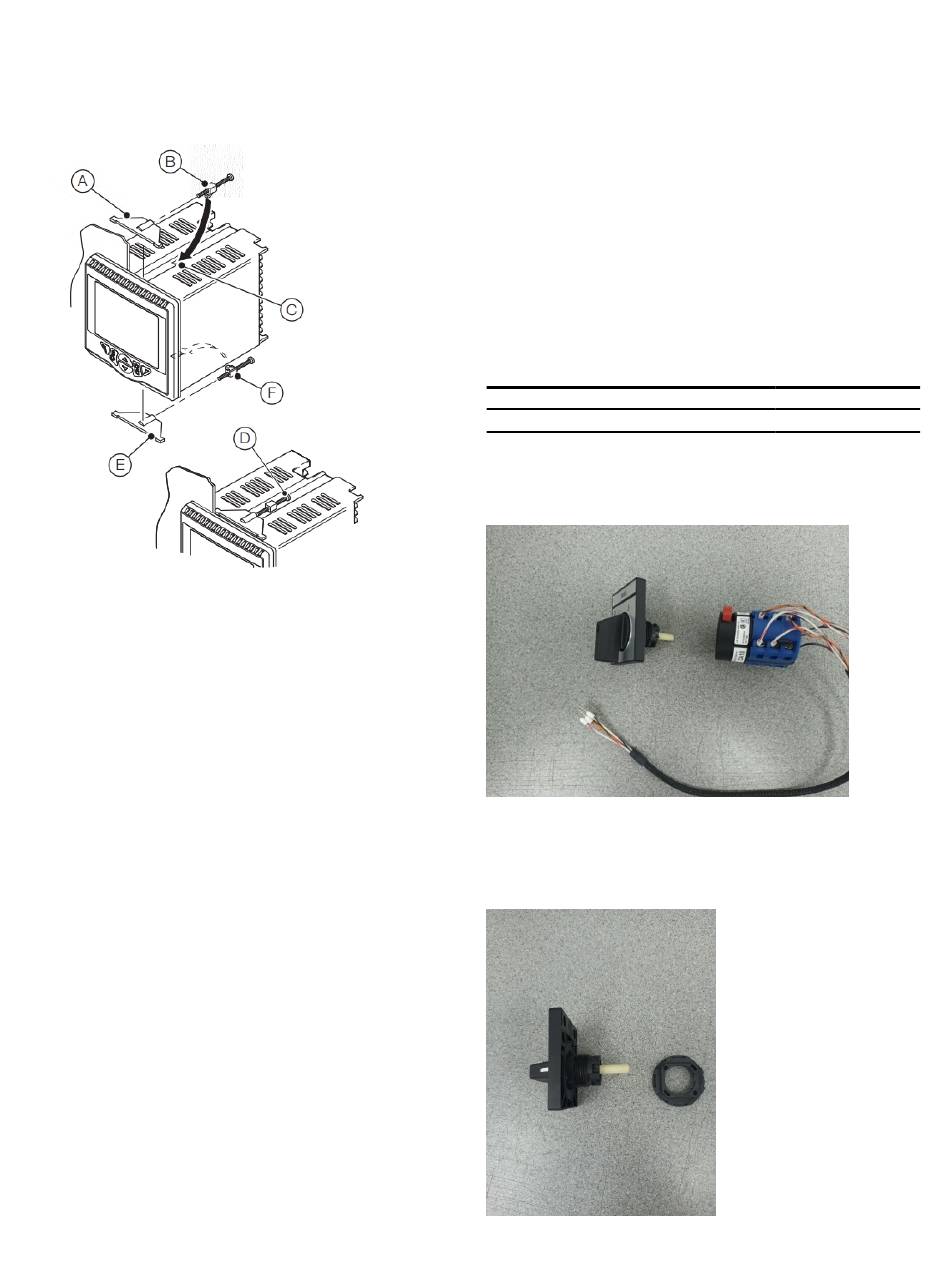

Figure 29 CM30 detail
3 Locate the panel clamp anchor B in slot C.
4 Tighten the panel clamp anchor screw D until panel clamp
A is secured against the panel.
Note:
Do not overtighten the screw.
5 Repeat steps to fit the lower panel clamp E and panel
clamp anchor F.

5 .8 Install the new range selector switches

5.8.1 Applicability

This section applies to:
• AK101
• AK102
• AK103
For AK104, which has no switch, go to: Section "5.9 Rewiring"
on page 17.

5.8.2 Requirements

Table 7 Tools required
Part number Description
Adjustable spanner
—

5.8.3 Procedure

1 Move the red spring-loaded toggle and then pull the front
half of the switch casing clear from the back half.
Figure 30 Spring-loaded toggle
2 Remove the black nut from the front half of the switch
casing.
Figure 31 Black nut
15
Quantity
1
