Remove The 4600 Displays; Requirements; Procedure - Abb Ak100 Upgrade Instruction Manual

A K 1 0 T O G A H | U P G R A D E I N S T R U C T I O N | I N/A K 1 0 -TO - G A H - E N R E V. A

5 .4 Remove the 4600 displays

5.4.1 Requirements

Table 4 Tools required
Part number Description
3 mm spanner
—

5.4.2 Procedure

1 Turn the panel onto its front.

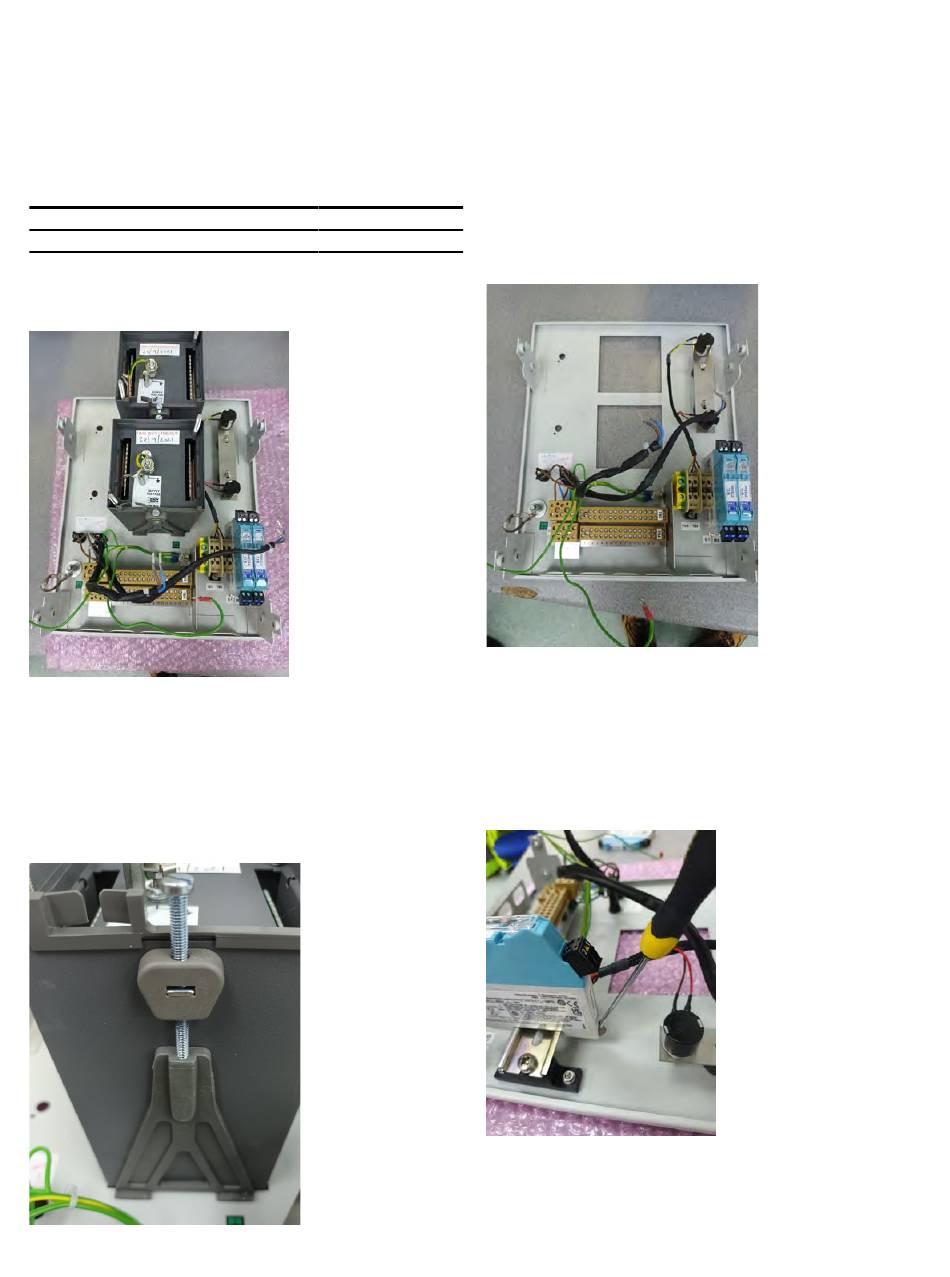

Figure 17 Panel
2 Loosen and remove the retaining screw on both Y-shaped
brackets.
Note:
The screw has to be undone almost completely in order to
remove the bracket from the 4600 housing.
Figure 18 Retaining screws
3 Once both brackets and screws have been removed, it should
be possible to slide the 4600 displays through the front of
the panel.
Quantity
1
4 AK101 and AK102 only:
Repeat for lower display.
Figure 19 Displays removed
5 Use the 3 mm screwdriver to get into the small slot and lever
off the isolation barrier(s).
Note:
Keep the barrier(s) for later. Do not discard them. It is
necessary to remove the barriers to drill the panel.
Figure 20 Isolation barrier
11
