...5 Upgrade procedure
...5 .3 Remove the range selector switches
4 Lift off the black outer shell.
Figure 14 Black shell removed
5 Use a 14 mm spanner to remove the brass retaining nuts
holding the switch.
The switch should be free to fall through the back of the
panel. The switch, along with the attached wiring should
now be completely free of the panel and can be discarded.

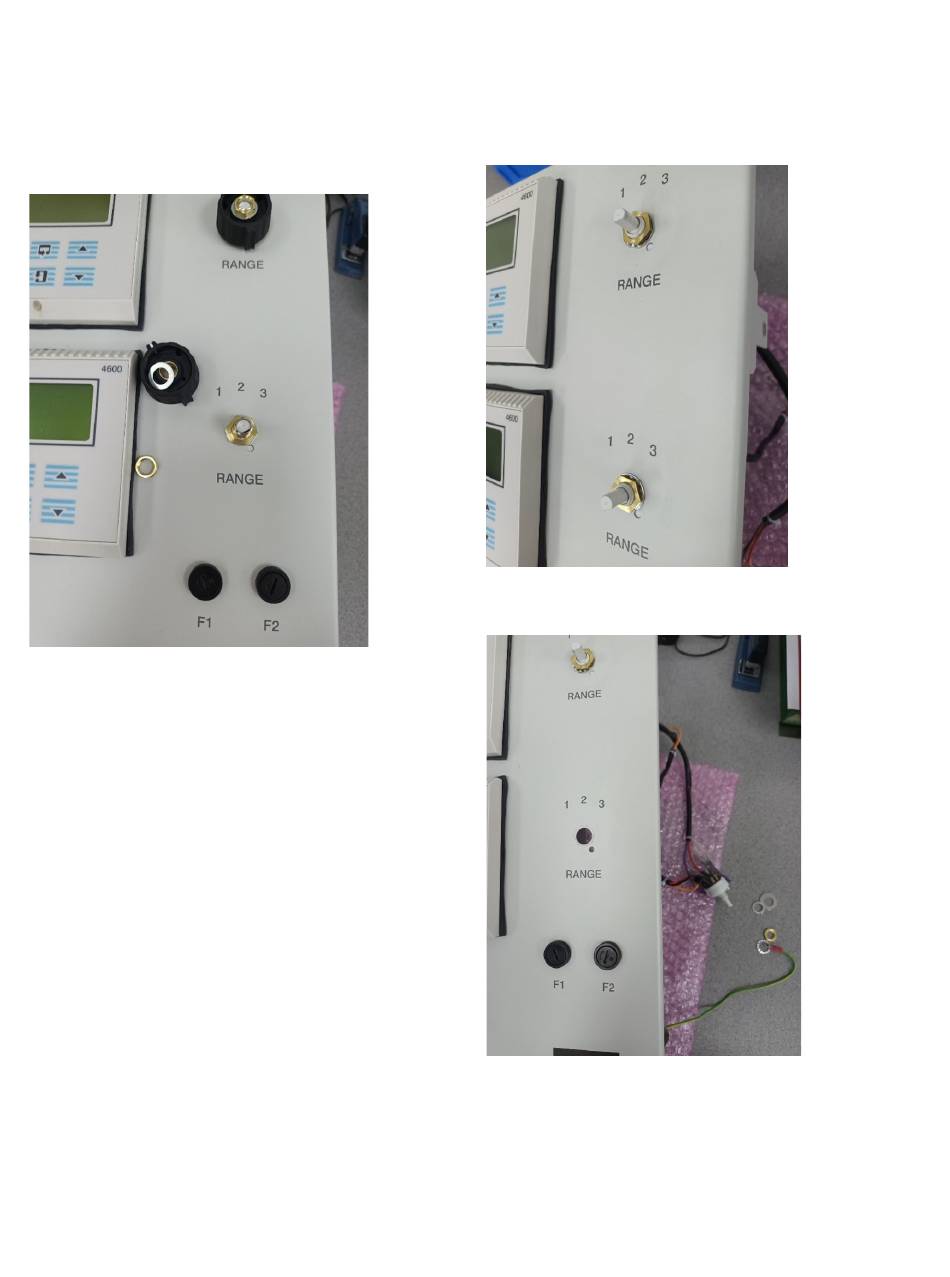

Figure 15 Range selector switch covers removed
Figure 16 Range selector switches removed
