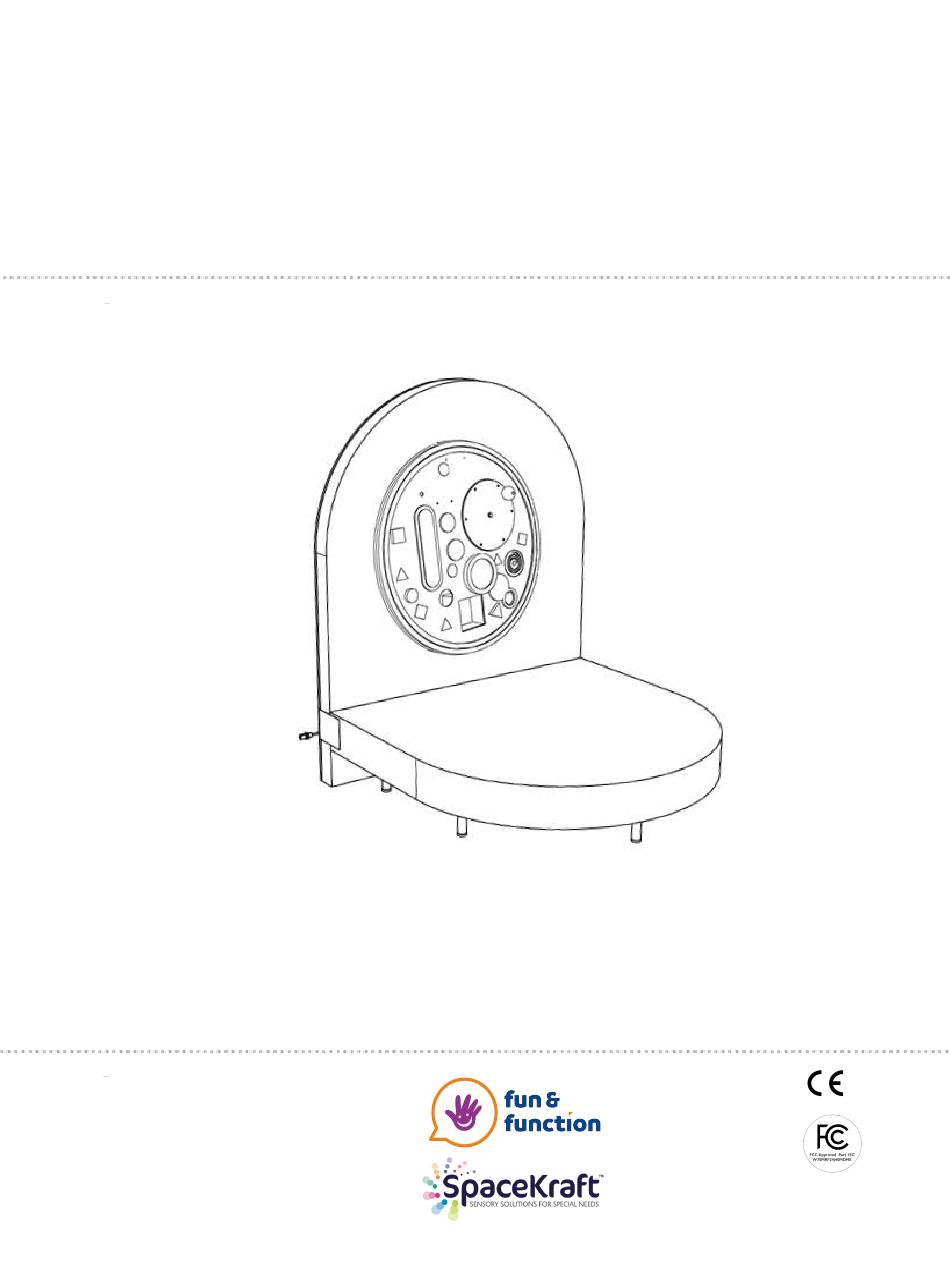

- Page 1 Round UV Musical Tactile Wall Panel with SensaSoft™ Panel and Platform SP7280 (panel), SP7288 (panel and platform) Installation Manual 82708_82706 November 2024...
-
Page 2: Table Of Contents
Contents Warnings Description includes Installation Connecting to SpaceKraft Equipment 9-11 Troubleshooting, Cleaning, Maintenance Guarantee Technical, Contact... -
Page 3: Warnings
Warnings All our equipment is designed for users with special needs. We suggest supervision at all times when using this equipment. For indoor use only. The panel uses a power supply. Do not use any other power cord other than the one supplied. - Page 4 Includes The wall panel and/or platform. The platform will be packaged separately. Wall Panel 2 x Wall Brackets - 39.4 inches (1000mm) Brackets are screwed to the back of the wall panel to prevent damage during shipping. Please unscrew the brackets from the back of the panel before installation.
-
Page 5: Installation
Installation The wall panel must be installed against a permanent wall of solid construction. An electrical outlet is required to make your panel work. The panel should be located near an electrical outlet. Brackets are supplied without screws or bolts. Proper screws or bolts will depend on the type of wall the panel will be attached to. - Page 6 We recommend two people to lift the panel onto the wall brackets. Step 3 Identify the three brackets on the rear of the wall panel and lift on to the wall brackets. The panel should stand on the floor if fitted correctly. The brackets stop the panel from tipping. Lift onto the wall brackets 3 x Rear...
-
Page 7: Connecting Power
Step 5 Push the platform to the wall panel and attach the two Velcro strips to the side of the wall panel. Wall panel Velcro Strips Platform Connecting Power Your wall panel is fitted with a Sensory panel. This requires an electrical outlet. - Page 8 Connecting other SensaSoft Products Every SensaSoft panel has an auxiliary cord to connect power to other SensaSoft panels. The entire range can run from one power outlet. To connect more panels, use the cord to the left of the wall panel. If this cord is not being used, tuck it behind the panel so it cannot be tampered with.
-
Page 9: Connecting To Spacekraft Equipment
Connecting to SpaceKraft Equipment Most of the SpaceKraft equipment can now be controlled using our SKNET wireless network. Most of the equipment is already pre-set Some functions such as volume controls and other user choices will need to be manually setup upon equipment setup. Please follow the guide to connect and change settings. - Page 10 Connecting to Smart Device Instructions using iPhone 1) Click on the Settings icon 4) Go into the phone browser. Type the IP address 3) Choose SK - 2) Settings Page - Click on Wi Fi. UV Music Panel In my networks. 192.168.4.1 or scan the QR code.
-
Page 11: Troubleshooting, Cleaning, Maintenance
Change to a di ff erent range of sounds by choosing a bank button and altering the Volume When you have chosen a bank another button will let you alter a sound volume. Troubleshooting Q - My panel is making no noise and not lighting up A - Make sure the electrical outlet is receiving power and the power cord is plugged in. -
Page 12: Fcc
Information about products that generate electrical noise USA and Canada This device complies with FCC and industry Canada RF radiate exposure limits set forth for general population. It must not not be co-located or operating in conjunction with any other antennas or transmitters. This device complies with Part 15 of the FCC rules. -
Page 13: Guarantee
Guarantee CONDITIONS OF GUARANTEE This guarantee is in addition to and does not in any way affect any statutory or other rights of consumer purchasers. If within the applicable guarantee period (as shown in 8 below) the appliance proves to be defective by reason of faulty design, workmanship or materials, we undertake subject to the following conditions to have the defective appliance (or any part or parts thereof) repaired, or at our discretion, replaced free of charge. - Page 14 Technical Electrical data Complies to: BS EN 60355-1 Generic EMC standards - Emission standard for residential, commercial and light-industrial environments Complies to: Toy Standard EN71 - part 1,2,3 Wall Panel - 59.4"H x 48"W x 5.5"D (1508.8mm x 1219mm x 139.7mm) Weighs 77 lbs.
