Indyme Solutions CB965-4-AD100 Programming And Installation Instructions

CB965-4-AD100 Wireless Receiving Door Help Button
Programming and Installation Instructions
Introduction

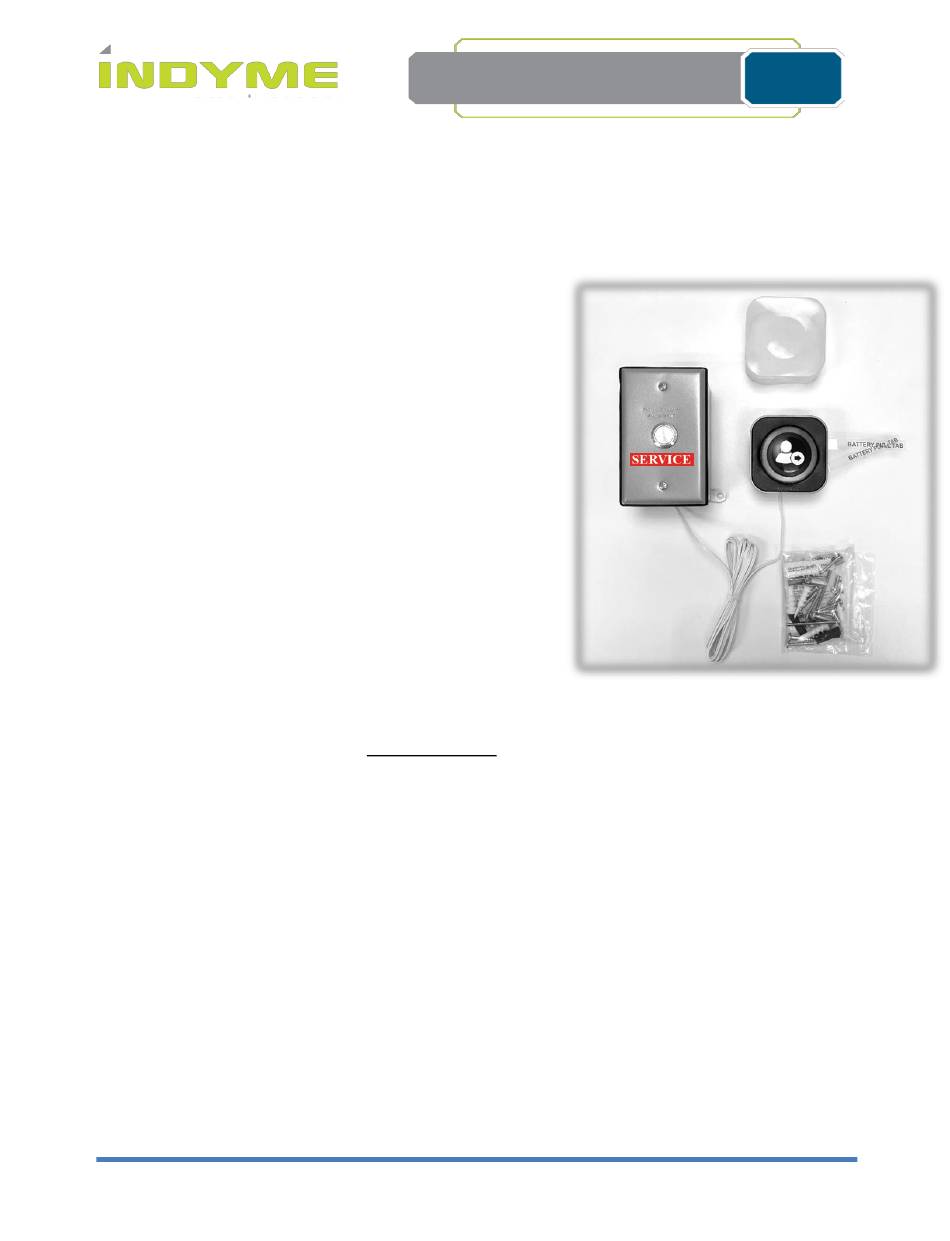

The CB965-4-AD100 is a 1-button help button with external
Outdoor Switch which allows delivery drivers or employees to
request assistance from outside at the front or rear door. The
CB965-4 is a member of the Global Solutions Family, which
operates in the 800MHz – 900MHz frequency spectrum. GSF
Help Buttons are designed to communicate with Indyme's
Smart Response infrastructure.
Programming Parameters
Many of the help buttons are pre-programmed at the factory
and labeled with location and address information. If your help
button is pre-programmed you can skip ahead to the installation
section of these instructions.
The CB965-4-AD100 is shipped in operating Mode 5.
CB965-4 help buttons have four primary programming parameters; Frequency Plan, Netcode, Address and
Operating Mode. These MUST be programmed in order to establish communication and ensure proper
operation. Identify the parameters for your configuration before you begin programming.
Using the programming instructions below set the following parameters in order.
•
Frequency Plan – defines the frequency for your GSF devices.
•
Netcode – unique identification code for the installation environment.
•
Address – alarm number associated with a control unit alarm event.
•
Operating Mode – defines how the help button will respond when activated.
Programming a help button requires a series of button presses. On the CB965-4, SET is the "large round
button" and RESET is the "raised button on the bottom". The assurance LED ring surrounds the SET
button. This LED ring will flash during programming to indicate your progress.
Help button Programming
Help buttons use a hierarchy-based menu structure. You must enter the Programming Menu first, then
select the desired submenu. Each submenu may have one or more options available. These options are
used to assign specific operational characteristics to the help button. Review the submenus/options
before you begin programming.
