Ezurio BTM41 Series Quick Start Manual

BTM411 Development Kit SPP
BTM41x Series
Quick Start Guide
1.1 Introduction
This quick start guide will demonstrate using the BTM411 in Serial Port Profile role to exchange serial data with a Windows XP computer equipped
with a BRBLU03 USB Dongle.

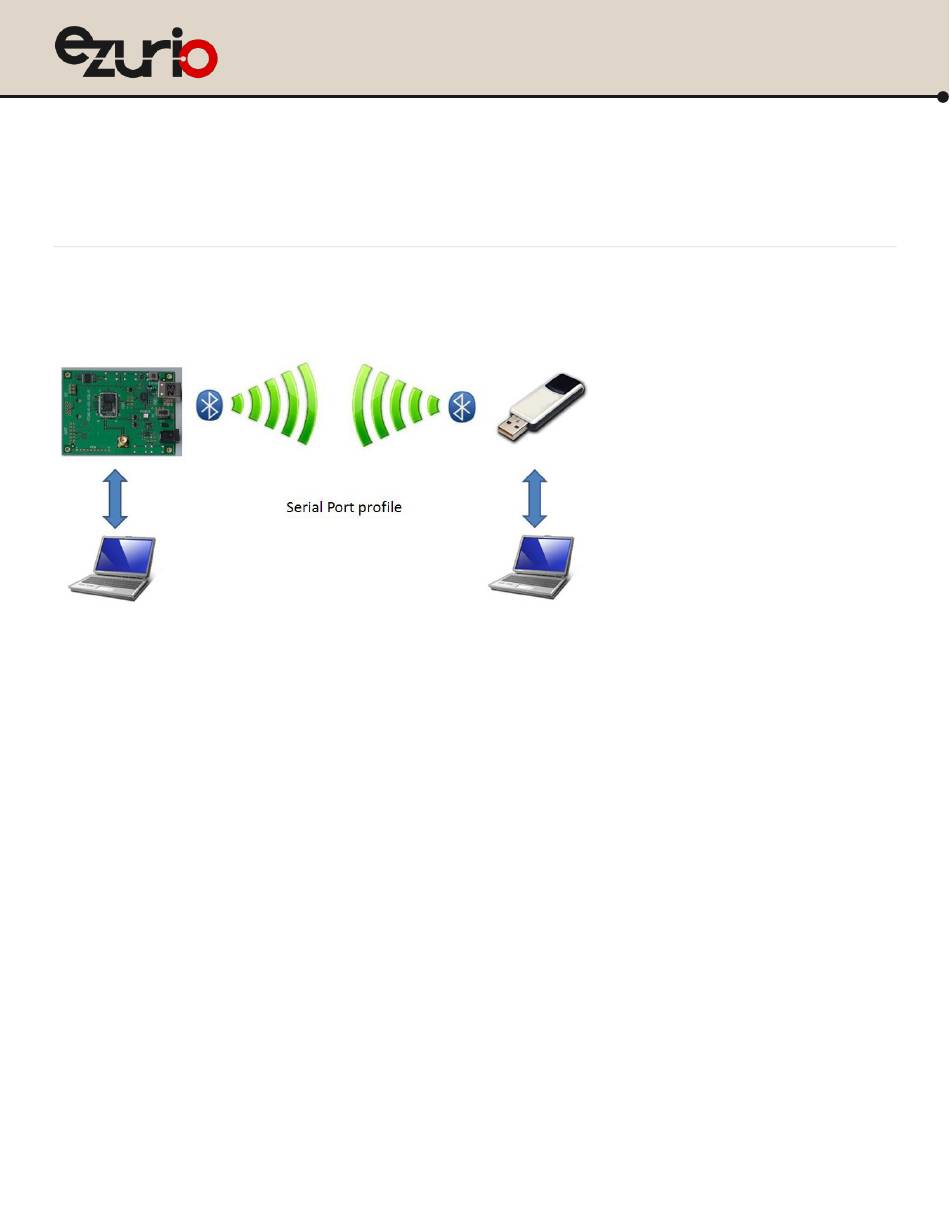

Figure 1: Serial Port Profile Communication
1.2 Requirements
▪ BTM411 Development Board
BRBLU030-010A0 USB Bluetooth Dongle
▪
USB Cable (A-B)
▪
Windows XP SP3 Computer
▪
▪ Terminal Software such as Ezurio terminal
▪ FTDI Driver
The development board USB socket provides both power and serial communications with the module. Ezurio provide a specialized terminal
program called Ezurio terminal but you can use your preferred terminal program in its place. This example uses the Microsoft Bluetooth stack and
software that comes with Windows XP SP and later. If your computer already has a different Bluetooth stack and software installed, such as
Widcomm or Toshiba, you may need to disable or remove it before continuing. Alternative you can modify the computer aspect of the procedure
below to match your existing stack and use the computers built in Bluetooth instead of the BRBLU0300-010A0.
1.3 Module Setup
▪ Install the FTDI VCP drivers if not already installed.
▪ Install your preferred terminal program if not already installed, we recommend using Ezurio terminal.
Connect the USB cable to the computer and development board, ensuring the switch on the development board is set to USB. Windows
▪
should find and install the development board as new hardware.
Identify the virtual COM port used by the development board using device manager on a Windows computer.
▪
▪ Open your terminal program and select the virtual COM port (9600 8N1) identified in step 4.
▪ Check you can communicate by sending the command "AT", which returns "OK".
▪ Send the commands as in the screenshot below to configure the BTM411.
https://www.ezurio.com/ 1
BTM411 Development Kit SPP
Quick Start Guide
