Summary of Contents for Pixii Home Outdoor Cabinet

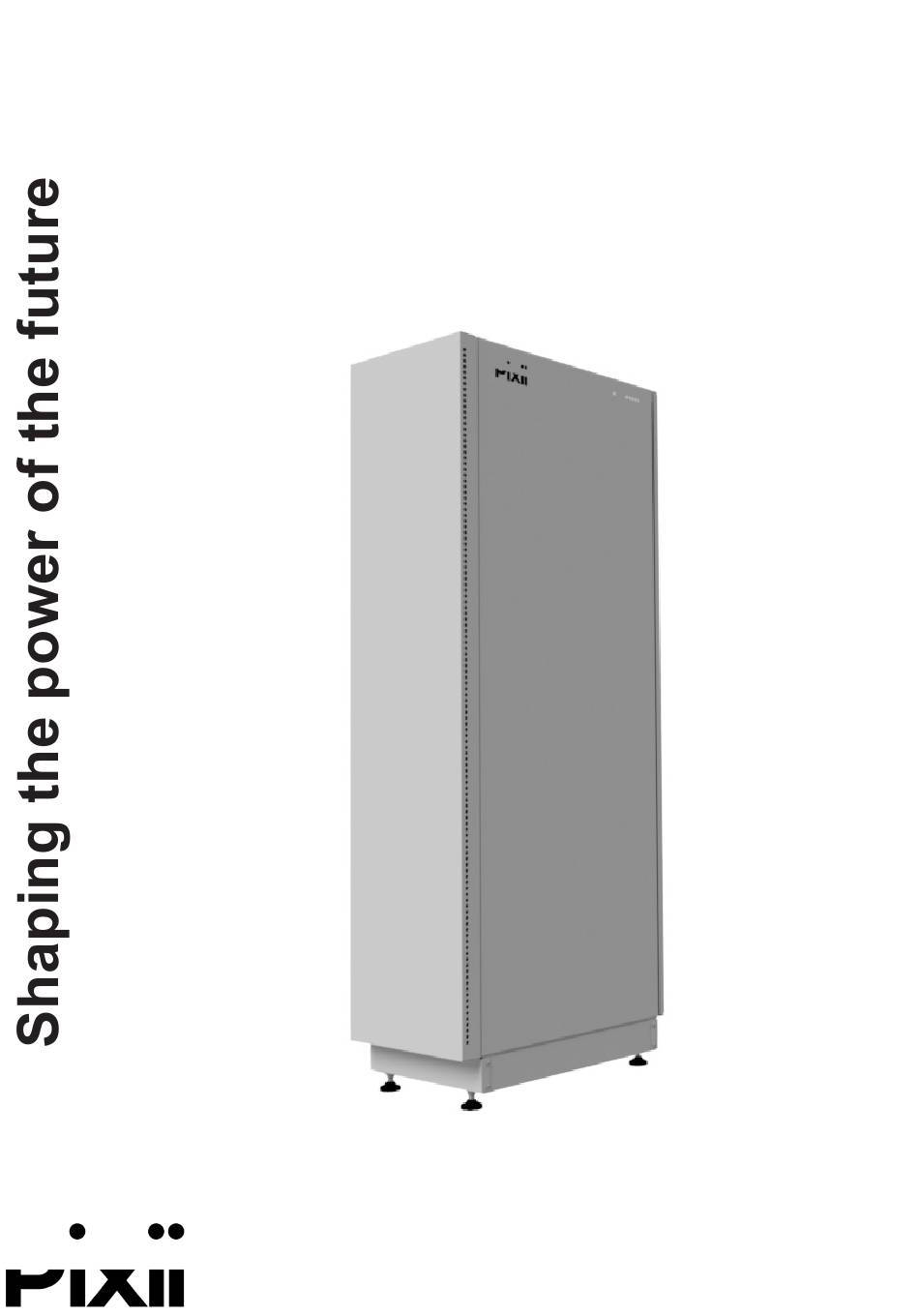

- Page 1 User Guide Pixii Home Outdoor Cabinet Grid tied energy storage system Document number: 16138, rev. 1.0 Public Author: Christoffer Jonsson Issue date: 10.09.2024...
-
Page 2: General Precautions
Commissioning and configuration of equipment should be done only by Pixii personnel or by other authorized and qualified persons. For safety reason, before you start installation, ensure all external power sources are disconnected, as well as internal battery and load fuses/breakers. - Page 3 Wear appropriate personal protective equipment when dealing with the battery module. • Remove watches, rings, or other metal objects. • Use tools with insulated handles. • Wear rubber gloves and boots. The battery module is heavy enough to cause severe injury. User Guide ● Pixii Home Outdoor Cabinet...
-
Page 4: Response To Emergency Situations
If the battery catches fire, it will produce noxious and poisonous gases. Do not approach. Wet batteries If the battery module is wet or submerged in water, do not try to access it. Contact Pixii or your distributor for technical assistance. - Page 5 Pixii. No part of this document may be reproduced, copied or transmitted (electronic or mechanic, including photocopying and recording) for any purpose to 3 party without the explicit written permission of Pixii. Copyright © Pixii 2024 Revision...
-
Page 6: Table Of Contents
5.4 Pixii Certified installer maintenance check ....... . . 24... - Page 7 User Guide ● Pixii Home Outdoor Cabinet...
-
Page 8: Introduction
Solution is integrated on the cabinet door with controlled air flow inside the cabinet. NOTE: Do NOT block the air vents and check their permeability on regular basis. Figure 1.1 Airflow diagram in the cabinet User Guide ● Pixii Home Outdoor Cabinet... -
Page 9: Installation Block Diagram
Figure 1.2 Single line installation block diagram - behind the meter (Peak shaving) Pixii Home Grid AC Meter AC Meter Load Figure 1.3 Single line installation block diagram - behind the meter with PV (PV self sufficiency) User Guide ● Pixii Home Outdoor Cabinet... -
Page 10: System Ratings
Introduction 1�3 System ratings 1�3�1 Electrical specifications The Pixii Home consist of modular converters, each of them providing transformers with Reinforced insulation between AC side and the DC side. AC Mains Type Max. Active Power (charge and discharge) 20kW Max. Apparent Power (charge and discharge) -
Page 11: Environmental Specifications
Current (inrush) 25Apeak Maximum output fault current 200Apeak/1ms Inverter topology Isolated Env. cat. (IEC 62040-1:2017) Outdoor Env. cat. (IEC 62109-1) Outdoor Env. cat. (IEC 62477-1) Outdoor Table 4. Environmental specifications * Without batteries installed. User Guide ● Pixii Home Outdoor Cabinet... -
Page 12: Mechanical Specifications
Depth 387 mm Weight (without modules and batteries) 62 kg Door Cover 3,5 kg Module 2 kg Shoto 3U battery 42 kg Table 5. Mechanical specifications DRAWN PeterBino CHECKED APPROVED Figure 1.4 Dimensions User Guide ● Pixii Home Outdoor Cabinet... -
Page 13: Installation Site
It is strictly required to follow local regulations if separation distances larger than the table above are required. NOTE: If the energy storage system is installed indoor, automatic sprinkler system is highly recommended and sometimes required. Local regulations must be adhered to. User Guide ● Pixii Home Outdoor Cabinet... -
Page 14: Packaging
PixiiHome system is marked with 2 system labels. One label is located on the inside of the cabinet (on the cabinet door) and one label is a separate sticker with the documentation. Figure 1.6 System label User Guide ● Pixii Home Outdoor Cabinet... -
Page 15: Function
I needed in the house or if needed more, as much as it can provide. 2�1�1 PV integrated inverter Figure 2.1 PV integrated inverter 2�1�2 PV external inverter Figure 2.2 PV external inverter User Guide ● Pixii Home Outdoor Cabinet... -
Page 16: Peakshaving
The Backup function is set to be released in Q3/Q4 2024. It will be a three-phase full backup power solution, requiring an external backup box to be installed in front of the Pixii Home. The backup box contains several relays and electrical components. Please note that local regulations need to be checked before installing a backup box. -
Page 17: Switching On The System
Figure 3.1 External breaker Switch ON internal battery breakers, if it has been turned OFF. Figure 3.2 Battery breakers NOTE: We recommend qualified electrician to open the cabinet and switch the batteries ON/OFF. User Guide ● Pixii Home Outdoor Cabinet... -
Page 18: Indicator Leds
3�2 Indicator LEDs The Pixii Home system comes equipped with 6 RGB LED located on the cabinet exterior. The purpose of these LEDs is to show the various states of operation the cabinet can be in. The LEDs will also indicate if any warnings are present in the web user interface. - Page 19 When the system is installed for off-grid operation, all SoC LEDs will light up green. Figure 3.6 Off-grid operation SoC less the reserved If the current SoC is lower than reserved amount, LED 1 will show as yellow. Figure 3.7 SoC less the reserved User Guide ● Pixii Home Outdoor Cabinet...
-
Page 20: Internet Portal / App
4 Internet Portal / App 4�1 Web interface, Local network To access the dashboard through Pixii user web interface you need to connect to the Pixii Home cabinet through the local network. The IP-adress can be found through your network settings. Login details you will get from your installer. -
Page 21: Pixiiboxes
If you want to have any more information on PixiiBoxes you can click on the upper right corner on the PixiiBox icon. Figure 4.2 PixiiBox icon for more information PixiiBox information menu appears. Figure 4.3 PixiiBox information menu User Guide ● Pixii Home Outdoor Cabinet... -
Page 22: Batteries
Internet Portal / App 4�1�2 Batteries For more information of Batteries, click on the battery icon. Figure 4.4 Battery icon for more information Battery information menu appears. Figure 4.5 Battery information menu User Guide ● Pixii Home Outdoor Cabinet... -
Page 23: Service Settings
You will be able to see how the system is operating. If there are any alarms and set user specific settings and services for your home needs. To learn more about the Pixii Home app please see xxxx_Pixii Home App – End user manual. User Guide ● Pixii Home Outdoor Cabinet... -
Page 24: Maintenance
The Maintenance needs to be done at least every second year. You will get a notification in your Pixii Home app when it is due. Then you need to contact your Pixii Certified installer do come out and do a maintenance on the system. The installer will then get a protocol on what needs to be done and checked. -
Page 25: Installation Procedure
Close the cabinet doors. Fans automatically shut off when doors are opened due to sensors in the doors. If doors are opened for a long period, Pixii Home will show a warning. If warning does not disappear when doors are closed, turn on a trigger to set the fans to 50% in Gateway >...
