Moza AY210 User Manual

Force feedback yoke base
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Quick Guide
AY210 Force Feedback Yoke Base
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AY210 and is the answer not in the manual?

Questions and answers

Related Manuals for Moza AY210

Summary of Contents for Moza AY210

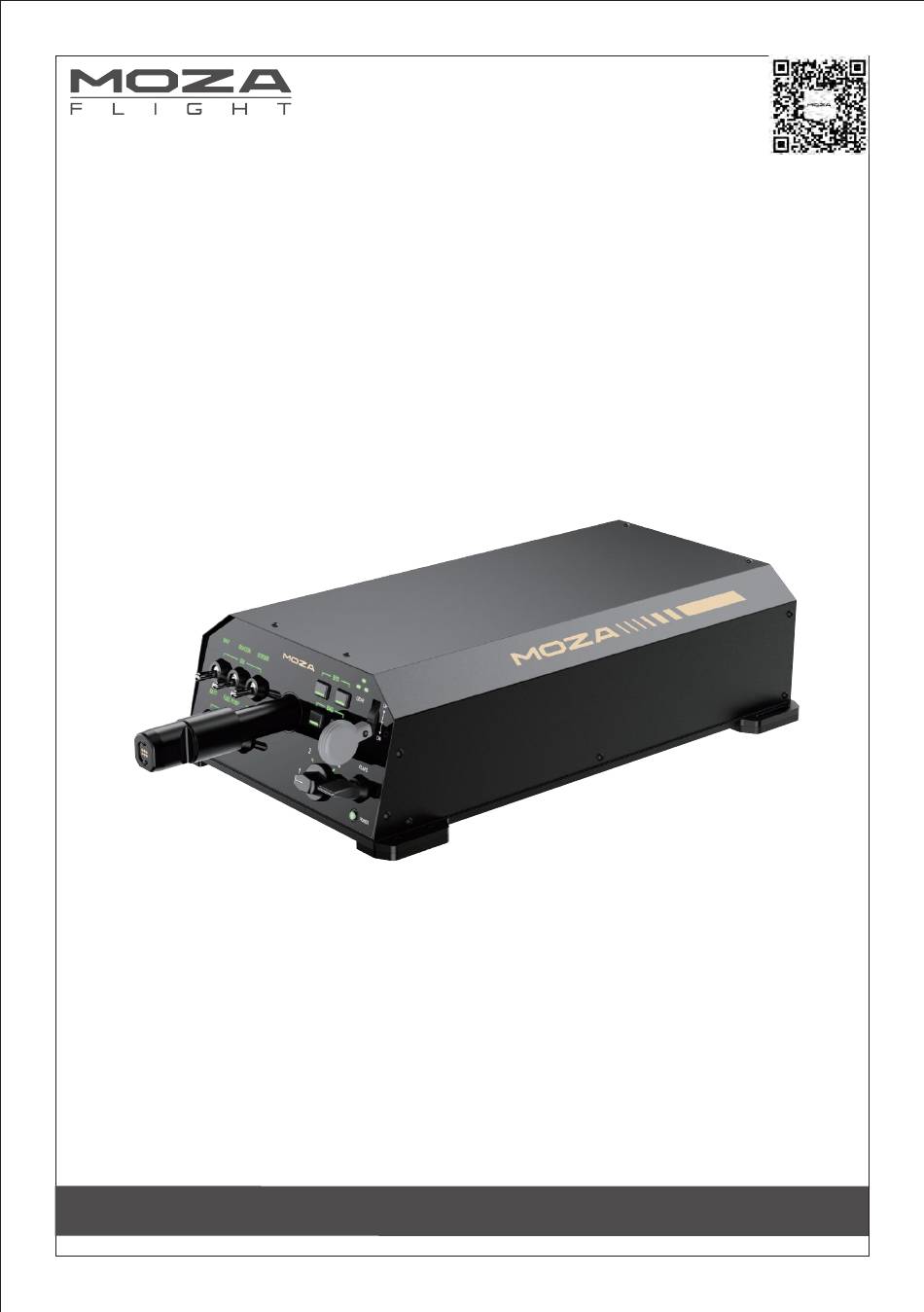

  • Page 1 Quick Guide AY210 Force Feedback Yoke Base User Manual...
  • Page 2 Product Features • MCLS Force Feedback Technology • Programmable Switch Panel • 9Nm Roll Force ad 200N Pitch Force • 150mm Long Pitch Travel • Aluminum Quick Release • High-Resolution Encoder Parameters 215.8 503.4 111.28 34.5 4-Ø6.5 4-M6 4-M5 Connection Ports Power USB-B Rudder (RJ 11)
  • Page 3 After attaching the yoke, release the quick release handle and gently wiggle the yoke to ensure it is securely mounted. d. Once connected, power on the MOZA yoke base, and the lights on the MFY yoke handle will illuminate.
  • Page 4 3. Connecting to PC • Connect the power cable to the MOZA AY210 yoke base and plug it into a 220V outlet. Short press the power button to turn it on (long press to turn it off). The power light will flash upon successful connection.

  • Page 5: Software Introduction

    The main page displays the operational status of all connected devices, including the base, yoke, throttle, and rudder pedals, while also enabling quick game launches. From the left-side icon menu in MOZA Cockpit, select the MFY yoke icon to access the Yoke Settings page.
  • Page 6 There are two modes for adjusting its brightness: • Manual Mode: Adjust the lighting intensity using the landing gear light brightness slider in the MOZA Cockpit software. Brightness levels range from 0 to 15, with level 0 completely turning off the lights.
  • Page 7 Base Force Feedback Settings Click the base icon in the sidebar to access the force feedback settings. Here, you can adjust the mechanical parameters and fine-tune the force feedback effects, organized into easy-to-navi- gate tabs. After making adjustments, save your settings as presets using the Preset Manage- ment feature for quick access and future use.

  • Page 8: Specifications

    • Do not expose the device to heat sources. • Unplug the power cord of the device if it will not be used for a long time. • If you find any abnormality, please stop using it immediately and seek help from MOZA representatives or authorized repair centers.
