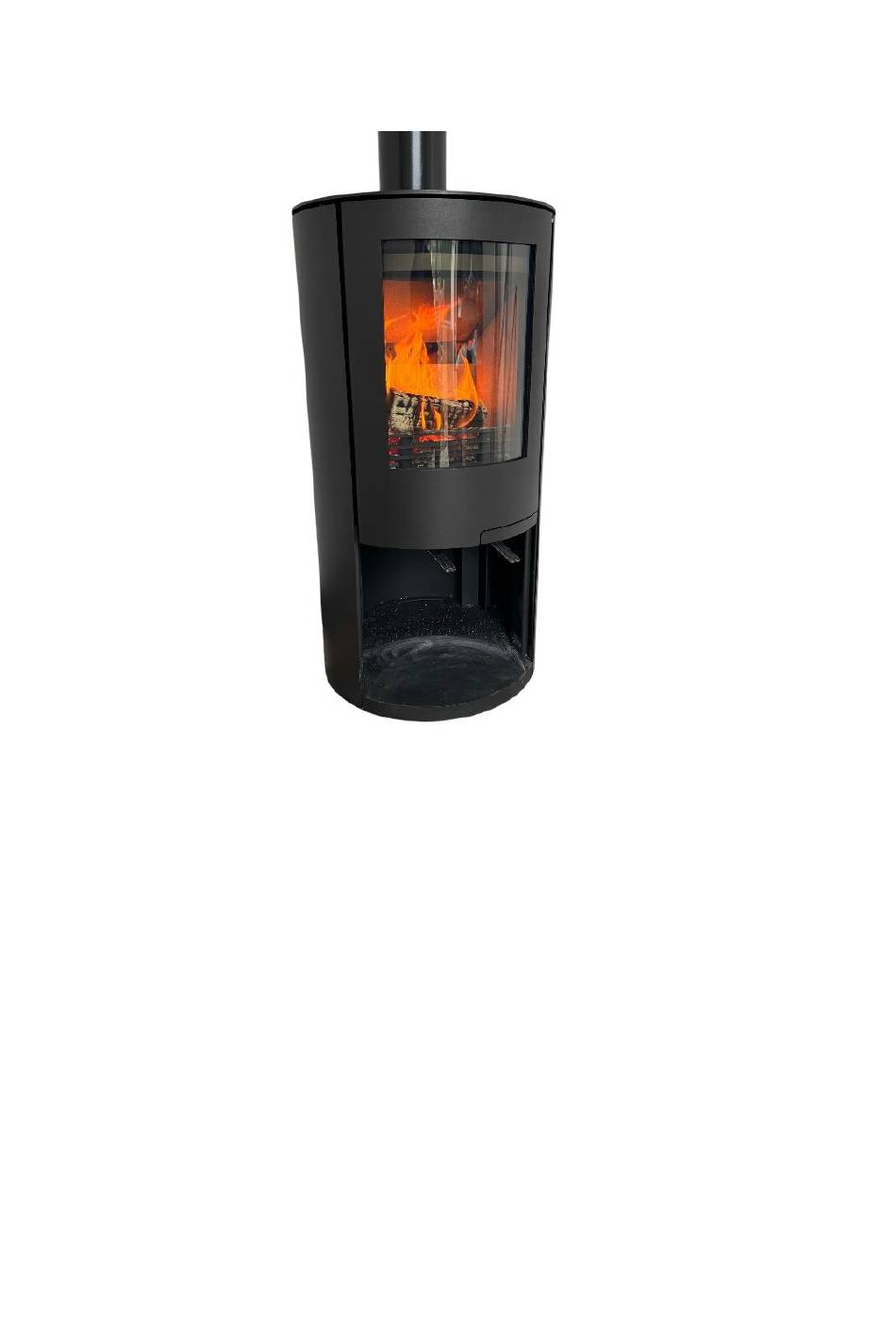

- Page 1 Ecosy+ Infinity V Cylindrical Stove – Eco- Design Ready Operation and Installation Manual PLEASE RETAIN FOR FUTURE REFERENCE...
-
Page 2: Installation Instructions
Side Back combustibles 80cm Ecosy+ Infinity V VENTILATION Your stove requires ventilation to supply it with air for combustion. Ventilation is also required to ensure the proper operation of flues and chimneys, to ensure that the products of combustion are safely dispersed to the outside air. -
Page 3: Flue / Chimney
combustion products from the stove, back into the room. Opposed to being pulled up the chimney. This can occur even if the appliance and the fan are in different rooms. If mechanical extraction is unavoidable in the same room as your stove, then seek specialist advice to ensure safe operation of the appliance. -
Page 4: Hearth Construction
Provision should be made to ensure the chimney can be swept in the entirety of its length. If using single wall flue, please ensure there is a clearance of at least 3 times the diameter of the flue pipe from any combustible material (e.g. 150mm pipe = 450mm minimum clearance to wooden beam). - Page 5 2.Removing the throat plate and liners The throat plate rests on the rear liner and ledge within the upper edge of the door aperture. To begin with remove the internal grate and log retainer, then push up on the mid part of the throat plate with the palm of one hand. With the other, remove the side bricks to allow the throat plate to drop down.
-
Page 6: Lighting The Stove
OPERATION INSTRUCTIONS Lighting the stove 1. Open the door and ensure the secondary/air wash control lever is opened fully. ( The one of the right as you look at the fire ) 2. On first lighting, we recommend using 2 - 3 firelighters along with wood kindling built in a pyramid above the firelighters to obtain a good fire bed. -
Page 7: Recommended Fuels
• Avoid overloading your appliance as this may cause damage to the product and cause unstable burn conditions. See max fuel load stated in ‘Refuelling Wood’ section for more info. Burning coal: • The Air-wash/secondary air lever (The control to the right) – This should be left partially open, to allow the air-wash system to keep the glass clean. - Page 8 Use of incorrect fuels can invalidate the warranty of your appliance. • Petroleum Coke • Household waste Wood with a moisture content above 20% • Household coal or bituminous coal • Waste timber that has been painted or treated e.g. railway sleepers Refuelling Wood 1.
- Page 9 Weather Conditions Weather conditions can affect the performance of the stove. Strong winds combined with close buildings or trees can cause the stove to smoke. Heavy rain may lower the temperature of the flue making it difficult to light or slow to heat up.
-
Page 10: Troubleshooting (Faq)
Welsh Ministers. Further information on the requirements of the Clean Air Act can be found here:https://www.gov.uk/smoke-control-area-rules The Ecosy+ Infinity V has been recommended as suitable for use in smoke control areas when burning seasoned wood logs. 3) Troubleshooting/ F.A.Q. -
Page 11: Important Notice
Excessive draft Install draft stabiliser/damper Smokes upon initial Cold flue pipe Burn firelighters/small fuel lighting loads to preheat flue prior to lighting Smokes while burning Insufficient draft Check flue is not obstructed Glass blackening Insufficient Air Open air-wash control Damp fuel Use recommended fuels Insufficient seal Check condition of rope... -
Page 12: Maintenance
excessive amounts are present, the baffle plate needs removed and cleaned. 4.Have the chimney checked by a professional person for any sign of blockage. 5.Do not attempt to relight the appliance until the source of the blockage has been determined and cleared. 6.Seek professional opinion on the cause of the blockage if in any doubt. -
Page 13: Baffle Plate
pan is not allowed to build up to where it is touching the bottom grate. This will cause the grate to burn out prematurely. Baffle plate Particular attention should be paid to the baffle plate, which should be regularly inspected for any accumulated soot and products of combustion. -
Page 14: Technical Information
ups within the flue can cause loss of performance, damage to the product and harm to the surroundings and users as a result. Depending on the fuel source used, it’s recommended that the flue is cleaned: • Anthracite – Clean at least once a year. Wood –... - Page 16 Ecosy+ Infinity V Beech Anthracite Output kW (nominal) Efficiency (%) 82.2 83.0 CO Emissions at 13% O 0.09 0.08 (vol%) Emissions at 13% (mg/m (OGC) Emissions at 13% O (mg/m Dust (PM) Emissions at 13% O (mg/m...
-
Page 17: Warranty
Flue gas temp. ( 6)DIMENSIONS Maxim- Height Width Depth Weight Collar um log (mm) (mm) (mm) (kg) (mm) length (mm) Ecosy+ 250mm x Infinity 5”/125mm 911mm 470mm 491mm 100mm 7)WARRANTY Your stove includes a 5 Year guarantee. Incorrect use or installation not carried out by a registered HETAS installer will void the guarantee. - Page 18 • Defects or faults caused by local conditions such as draught problems and chimney defects. • Damage caused by over firing. • Damage resulting from the use of unsuitable fuel. Unauthorised modifications, misuse, neglect, abuse, excessive wear and tear and the use of non-original replacement parts will invalidate the warranty of the stove.
- Page 19 some coals. It is, however, possible. If your glass is crazed, it does not need changing and is safe to use.
