I
NSTALLATION

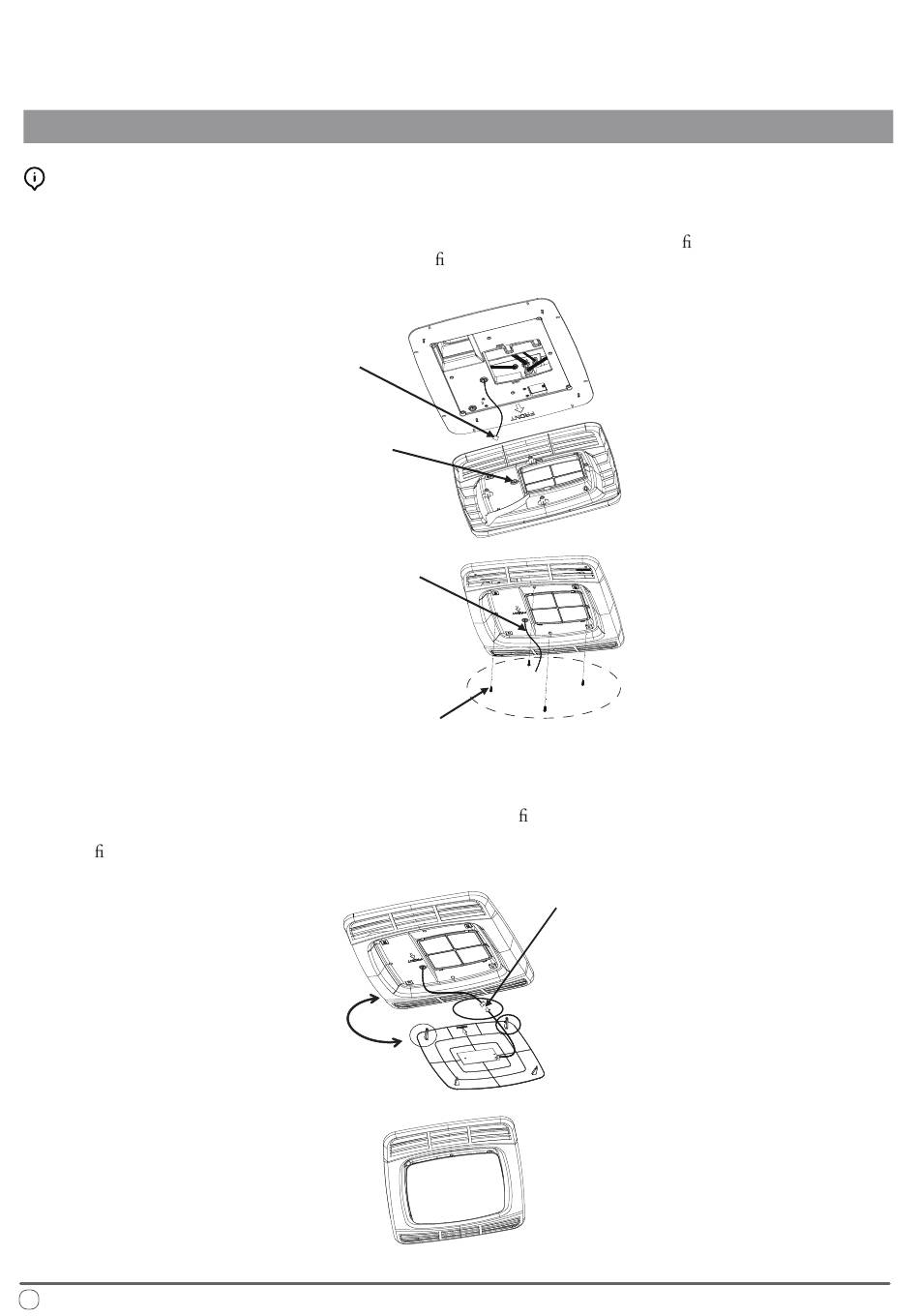

Mounting the Panel

Alignment and Connection
Remove the panel and align it according to the directional indicators on the panel. Pass the display panel's connect-
ing wire from the control box through the via hole on the panel. Attach the panel to the xing plate and secure it
tightly using four screws, as illustrated in the following gure:
Connecting Wire
of Display Lamp Board
Take out the decorative panel, and with the arrow direction facing the head of RV, plug the connecting wire of
display lamp board with the connecting wire of display lamp board of the decorative panel in place, and then install
the lamp board on the panel (when installing the decorative panel, rst clamp the two buckles in arrow direction on
the corresponding holes of the panel, and then clamp the rear two buckles on the panel lock), as shown in the
following gure:
Corresponding
Buckles
28
I
NSTRUCTIONS
Pass-through Hole
of the Panel
Connecting Wire of
Display Lamp Board
Screw (4)
Plugging of
Connecting Wire
of Display Lamp Board
