System Connections

Place the connected wires back into the maintenance port of the control box and reattach the maintenance plate.
Insert the outdoor unit's plug-in wire harness, which was pulled out from the return air outlet of the air conditioner,
into the corresponding six-core terminal plug of the control box. (For heat pump or electric heating models, the
three-core plug from the return air outlet should be inserted into the corresponding three-core terminal plug.)
Ensure all plug-in terminals are properly seated.

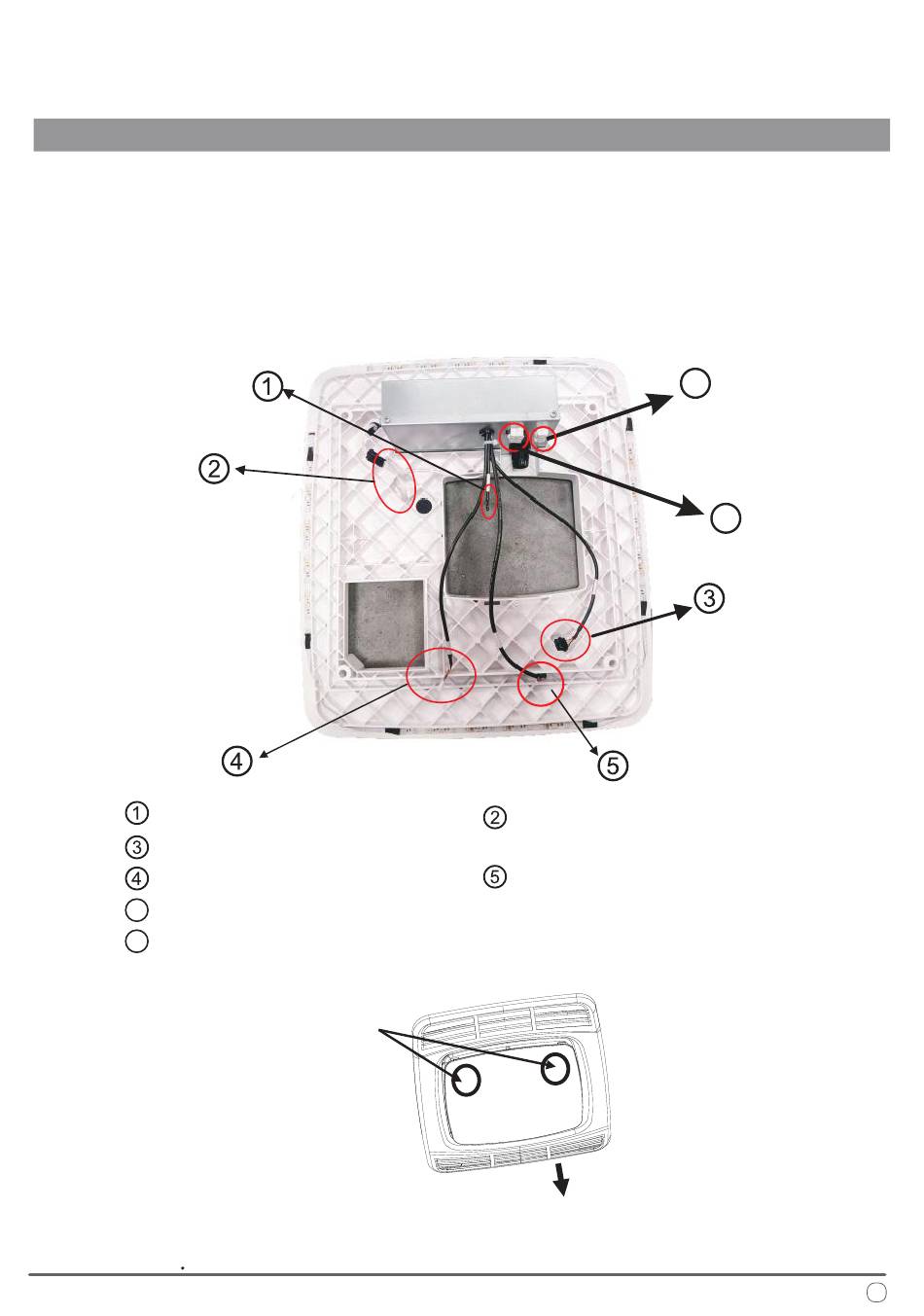

Connect the remaining plug-in wires on the control box as follows:
Indoor Temp Sensor;
Connecting Wire of Display Panel;
Communication Line;
6
Wire Harness of Electric Heater
7 Power Wire Harness of Outdoor Unit
Left and right buckles
on the decorative panel
support@pdhvac.com | (800)-675-7410 | https://www.pdhvac.com/support/
I
NSTRUCTIONS
LED Strip Wire;
Anti-Freezing Sensor
Arrow direction on the panel
(vehicle head direction)
6
7
