I
NSTALLATION

Guidelines for a Successful Installation

For optimal performance, this product should be installed horizontally (assuming the RV is parked on a level
surface) with a maximum allowable gradient of no more than 15°.
Once the installation position is determined, check for any obstacles in the designated area. Ensure that there is a
minimum distance of 18 inches between the back of the vehicle body and any other roof equipment.
When the RV is in motion, the roof must be capable of supporting a load of 135 lbs. Typically, a static load design
of 220 lbs is su cient to meet this requirement.
Additionally, verify that there are no obstacles, such as door openings, partition frames, curtains, or ceiling xtures,
that would interfere with the installation of the inner panel of the air conditioner.

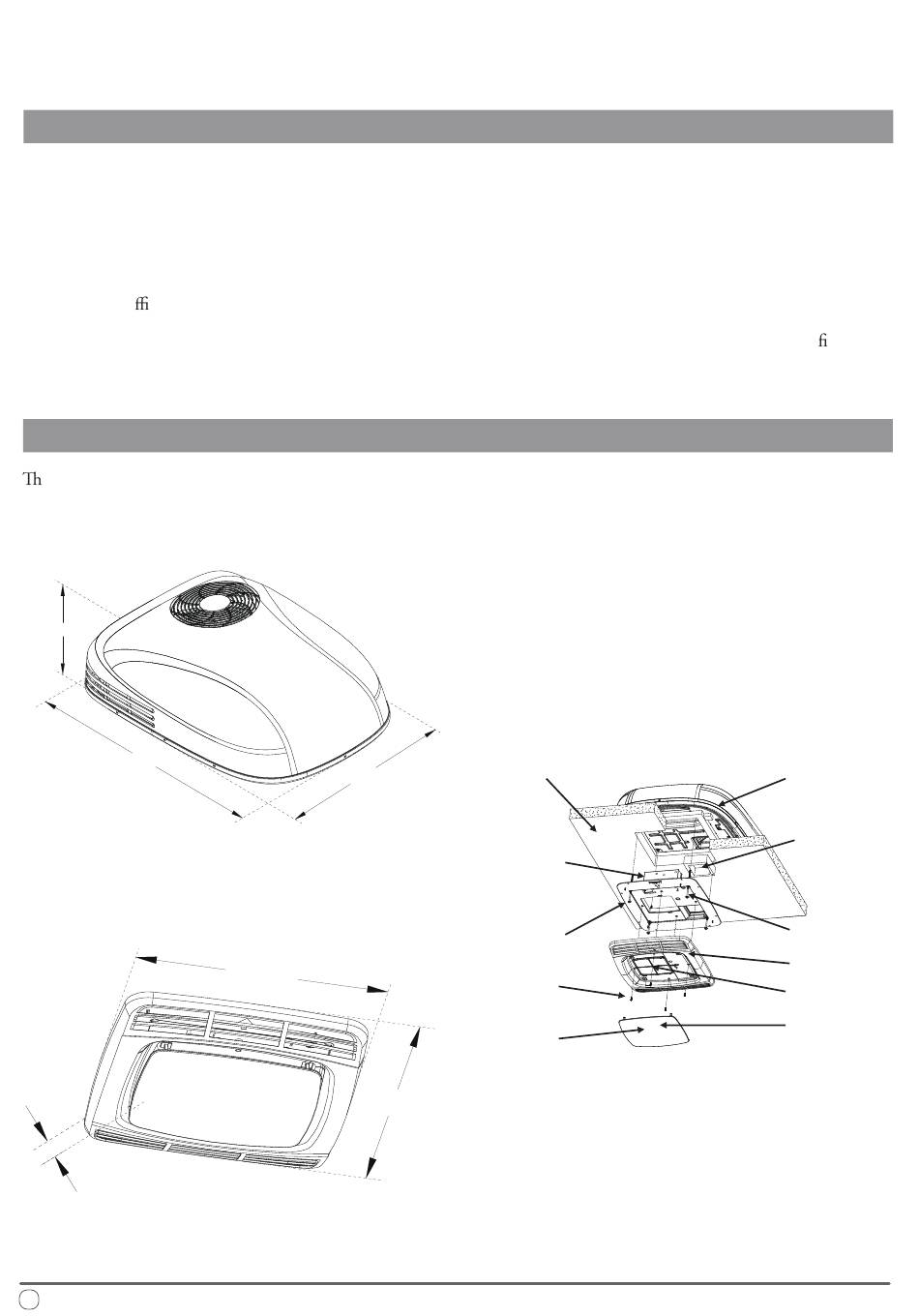

Dimensional Information

e overall dimensions of the RV rooftop heat pump system and panel are as follows:
10"
41-5/8"
2-7/8"
Control Panel
20
I
NSTRUCTIONS
Outdoor Unit
29-1/8"
19-3/8"
21-1/4"
Roof of RV
Control Box
Long Bolt
Screws
Display
Board
support@pdhvac.com | (800)-675-7410 | https://www.pdhvac.com/support/
Installation Exploded Diagram
Outdoor Unit of
Air Conditioner
Air Duct
Foam
Fixing Plate
Panel
Filter Screen
Decorative
Panel
