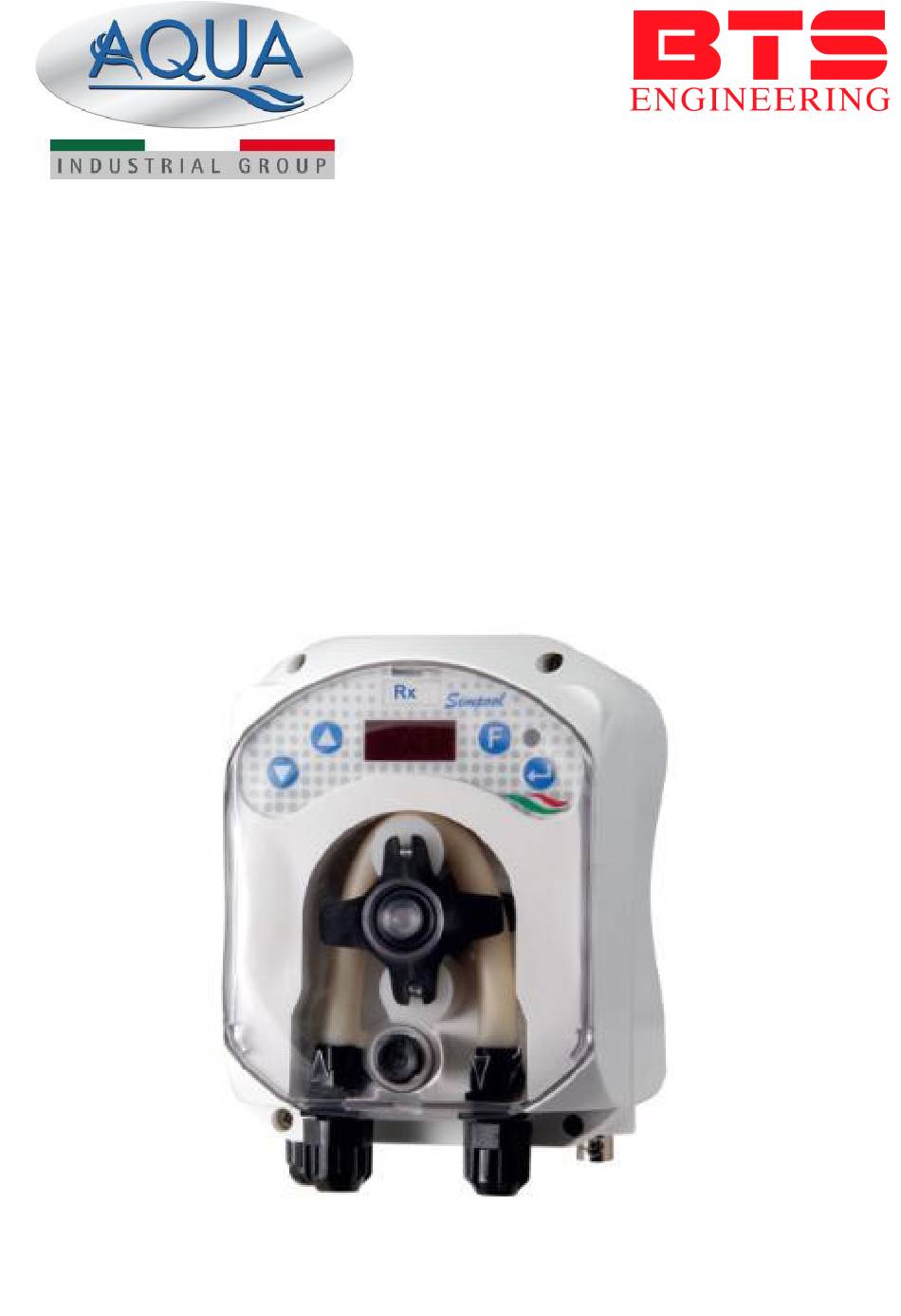

- Page 1 +38 095 656-37-57, +38 067 360-71-01, +38 063 362-12-31, info@prom-nasos.pro MAINTENANCE AND USE MANUAL Simpool Light RX...
-
Page 2: Table Of Contents
Simpool Light Redox Digital peristaltic pump ENGLISH INDEX INTRODUCTION ............................3 WARNINGS ........................3 NORMATIVE REFERENCES .................... 3 MODELS ........................... 4 INSTALLATION KIT ......................4 ASSEMBLY ..............................4 WALL MOUNTING ......................4 2.1.1 ASSEMBLY OF THE ACCESSORIES ..................4 FEATURES ..............................6 ELECTRICAL FEATURES .................... -
Page 3: Introduction
Simpool Light Redox Digital peristaltic pump ENGLISH 1. INTRODUCTION The range of Simpool Light programmable digital peristaltic pumps are designed to manage swimming pools and consist of the following models: ▪ pH model: for dosage proportional to the pH value ▪... -
Page 4: Models
Simpool Light Redox Digital peristaltic pump ENGLISH MODELS Flow Peristaltic Power Motor Pressure Rate Code Supply Type (bar) Tube (l/h) ADS21V401000A000 230 VAC 230 VAC Santoprene ADS200301000A000 230 VAC 230 VAC Santoprene INSTALLATION KIT When you purchase the pump, it includes everything required for correct installation, specifically: ▪... - Page 5 Simpool Light Redox Digital peristaltic pump ENGLISH 2.1.1.2 Installing probe holder ▪ Insert the O-ring on the small injection tube; ▪ Insert the small injection tube on the tube by following the direction of the flow, as indicated by the arrow on the label; ▪...
-
Page 6: Features
Simpool Light Redox Digital peristaltic pump ENGLISH 3. FEATURES ELECTRICAL FEATURES Fuse: 1 A RIT – model 5x20 Power supply: 230VAC 50/60Hz USER INTERFACE Model Function Key Up Key Down Key Enter Key Display The keys on the panel are the as follows: ▪... -
Page 7: Other Features
Simpool Light Redox Digital peristaltic pump ENGLISH The pump is equipped with a three position switch: ON/OFF/PRIMING (see 3.6) OTHER FEATURES • Level Alarm (if a low level switch or lance is connected) • Range Alarm There are two Range alarm settings one for low and one high these can be independently set. (see 7.1.2). -
Page 8: Connector Box
Simpool Light Redox Digital peristaltic pump ENGLISH CONNECTOR BOX Before performing any maintenance on the pump, disconnect the power supply voltage of the machine! The switch has three positions: : The pump is active (ON) O : The pump is off (OFF) : The pump is priming (MOM) The MOM position is monostable, therefore after setting the switch to MOM, when it is released the switch automatically goes back to OFF. -
Page 9: User Menu
Simpool Light Redox Digital peristaltic pump ENGLISH 5. USER MENU DOSING MENU The menu displays the following: The display shows the RX (mV) reading value. When the pump is in dosing mode (TIME), the RX (mV) value on the display and the green LED blink. When the pump is not dosing (PAUSE), the RX (mV) value on the display is fixed, and the green LED blinks ALARM MENU... -
Page 10: Fast Menu
Simpool Light Redox Digital peristaltic pump ENGLISH 6. FAST MENU FAST MENU – SETPOINT RX The set point menu allows you to set RX (mV) set point. USER MENU PRESS Press keys to set the set point Value: 0…999 (RX) keys to set dosage mode: PRESS UP: (Pump will dose be low setpoint) -
Page 11: Programming
Simpool Light Redox Digital peristaltic pump ENGLISH 7. PROGRAMMING In addition to the Fast Menu there is also a programming menu. You can enter into the programming menu by pressing and holding for 3 seconds the key. USER MENU PRESS HOLD 3 SEC PROGRAMMING MENU... -
Page 12: Programming Menu - Range Alarm
Simpool Light Redox Digital peristaltic pump ENGLISH 7.1.2 PROGRAMMING MENU – RANGE ALARM To return to dosing mode PRESS PRESS PRESS keys to set nl n PRESS 0…999 the minimum RX (mV) value. When set press keys to set 0…999 PRESS the maximum RX (mV) value. -
Page 13: Maintenance
Simpool Light Redox Digital peristaltic pump ENGLISH 8. MAINTENANCE This section advices the general rules you need to follow to operate the pump correctly and the steps to carry out periodically to ensure optimal conditions are maintained over time. GENERAL RULES Maintenance operations must be conducted systematically and accurately by following the recommendations reported below. -
Page 14: Placing Back The Peristaltic Tube
Simpool Light Redox Digital peristaltic pump ENGLISH PLACING BACK THE PERISTALTIC TUBE Step 1 - Position the tube and secure it on the left-hand side Step 2 - Insert it into the case by turning the roller Step 3 - Close the front glass Reconnect the suction and delivery tubing. - Page 15 Simpool Light Redox Digital peristaltic pump ENGLISH ADSP7000110L 15/04/2021 Rev. 1.0 15/15...
