Summary of Contents for BTS AQUA Simpool Light pH

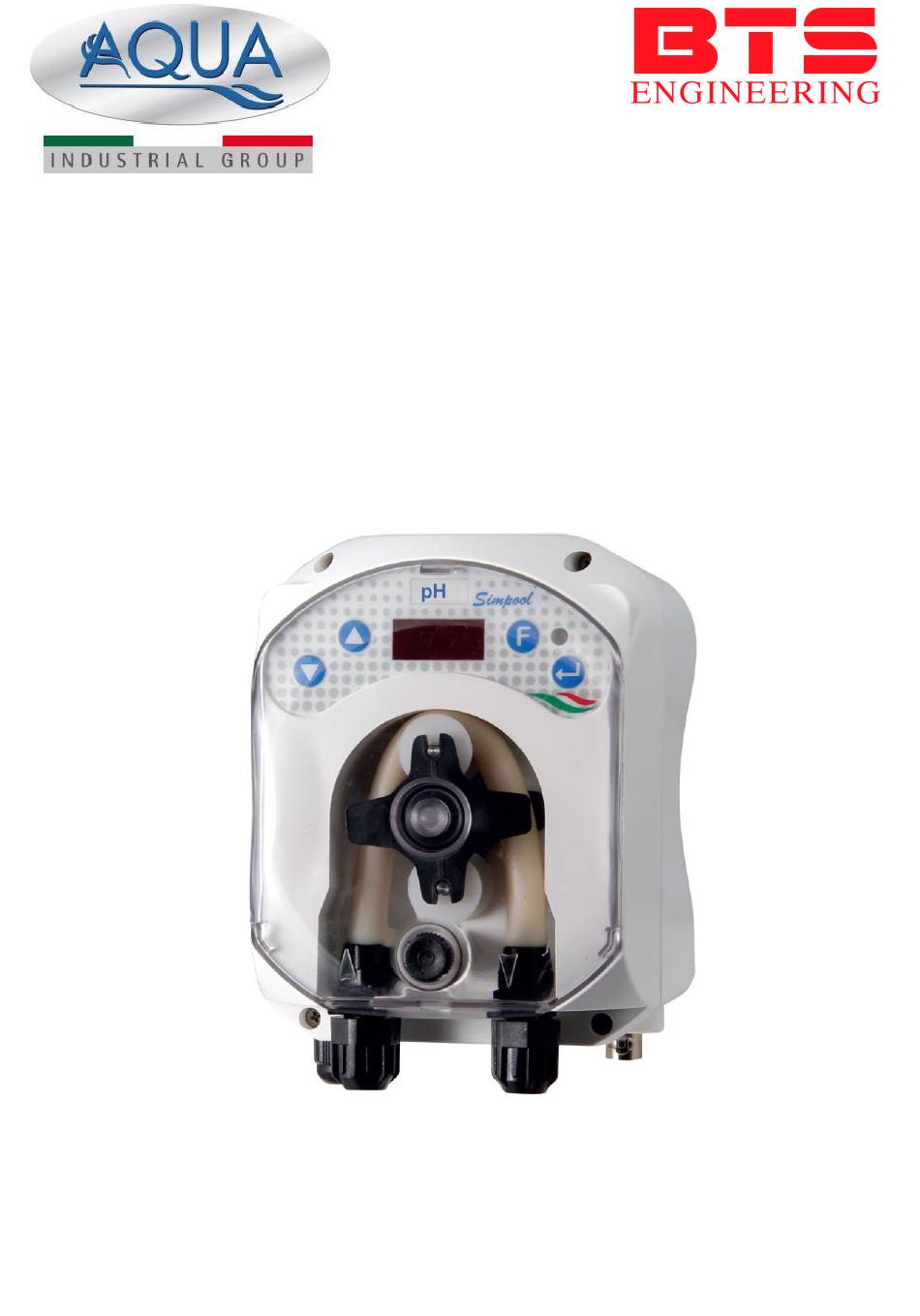

- Page 1 +38 095 656-37-57, +38 067 360-71-01, +38 063 362-12-31, info@prom-nasos.pro USE AND MAINTENANCE MANUAL Simpool Light pH ADSP7000407L 15/04/2021 Rev. 2.0 1/15...
-
Page 2: Table Of Contents
INDEX INTRODUCTION ............................3 WARNINGS ........................3 NORMATIVE REFERENCES .................... 3 MODELS ........................... 4 INSTALLATION KIT ......................4 ASSEMBLY ..............................4 WALL MOUNTING ......................4 2.1.1 ASSEMBLY OF THE ACCESSORIES ..................4 FEATURES ..............................6 ELECTRICAL FEATURES ....................6 USER INTERFACE ......................6 WORKING MODE ...................... -
Page 3: Introduction
Simpool Light pH Digital peristaltic pump ENGLISH 1. INTRODUCTION The range of Simpool Light programmable digital peristaltic pumps are designed to manage swimming pools and consists of the following models: ▪ pH model: for dosage proportional to the pH value ▪... -
Page 4: Models
Simpool Light pH Digital peristaltic pump ENGLISH MODELS Flow Peristaltic Power Motor Pressure Rate Code Supply Type (bar) Tube (l/h) ADS11V401000A000 230 VAC 230 VAC Santoprene ADS100301000A000 230 VAC 230 VAC Santoprene INSTALLATION KIT When you purchase the pump, it includes everything required for correct installation, specifically: ▪... - Page 5 Simpool Light pH Digital peristaltic pump ENGLISH 2.1.1.2 Installing probe holder ▪ Insert the O-ring on the small injection tube; ▪ Insert the small injection tube on the tube by following the direction of the flow, as indicated by the arrow on the label; ▪...
-
Page 6: Features
Simpool Light pH Digital peristaltic pump ENGLISH 3. FEATURES ELECTRICAL FEATURES Fuse: 1 A RIT – model 5x20 Power supply: 230VAC 50/60Hz USER INTERFACE Model Function Key Up Key Down Key Enter Key Display The keys on the panel are as follows: ▪... -
Page 7: Other Features
Simpool Light pH Digital peristaltic pump ENGLISH • Switch The pump is equipped with a three position switch: ON/OFF/PRIMING (see 3.6) OTHER FEATURES • Level Alarm (if a low level switch or lance is connected) • Range Alarm There are two Range alarm settings one for low and one for high these can be independently set. -
Page 8: Connector Box
Simpool Light pH Digital peristaltic pump ENGLISH CONNECTOR BOX Before performing any maintenance on the pump, disconnect the power supply voltage of the machine! The switch has three positions: : The pump is active (ON) O : The pump is off (OFF) : The pump is priming (MOM) The MOM position is monostable, therefore after setting the switch to MOM, when it is released the switch automatically goes back to OFF. -
Page 9: User Menu
Simpool Light pH Digital peristaltic pump ENGLISH 5. USER MENU DOSING MENU The menu displays is the following: The display shows the pH reading value. When the pump is in dosing mode (TIME), the pH value on the display and the green LED blink. -
Page 10: Fast Menu
Simpool Light pH Digital peristaltic pump ENGLISH 6. FAST MENU FAST MENU – SETPOINT pH The set point menu allows you to set a pH set point. USER MENU PRESS Press keys to set the set point value: 0…14 (pH) PRESS Press keys to set dosing mode:... -
Page 11: Programming
Simpool Light pH Digital peristaltic pump ENGLISH 7. PROGRAMMING In addition to the Fast Menu there is also a programming menu. You can enter into the programming menu by pressing and holding for 3 seconds the key. USER MENU PRESS HOLD 3 SEC PROGRAMMING MENU... -
Page 12: Programming Menu - Range Alarm
Simpool Light pH Digital peristaltic pump ENGLISH 7.1.2 PROGRAMMING MENU – RANGE ALARM To return to dosing mode PRESS PRESS keys to set nl n PRESS 0.00…14.00 the minimum pH value. PRESS When set press keys to set PRESS 0.00…14.00 the maximum pH value. -
Page 13: Maintenance
Simpool Light pH Digital peristaltic pump ENGLISH 8. MAINTENANCE This section advices the general rules you need to follow to operate the pump correctly and the steps to carry out periodically to ensure optimal conditions are maintained over time. GENERAL RULES Maintenance operations must be conducted systematically and accurately by following the recommendations reported below. -
Page 14: Placing Back Peristaltic Tube
Simpool Light pH Digital peristaltic pump ENGLISH PLACING BACK PERISTALTIC TUBE Step 1 - Position the tube and secure it on the left-hand side Step 2 - Insert it in the bell by turning the roller Step 3 - Close the front glass Reconnect the suction and delivery tubing. -
Page 15: Appendix A - Overall Dimension
Simpool Light pH Digital peristaltic pump ENGLISH APPENDIX A – OVERALL DIMENSION ADSP7000407L 15/04/2021 Rev. 2.0 15/15...
