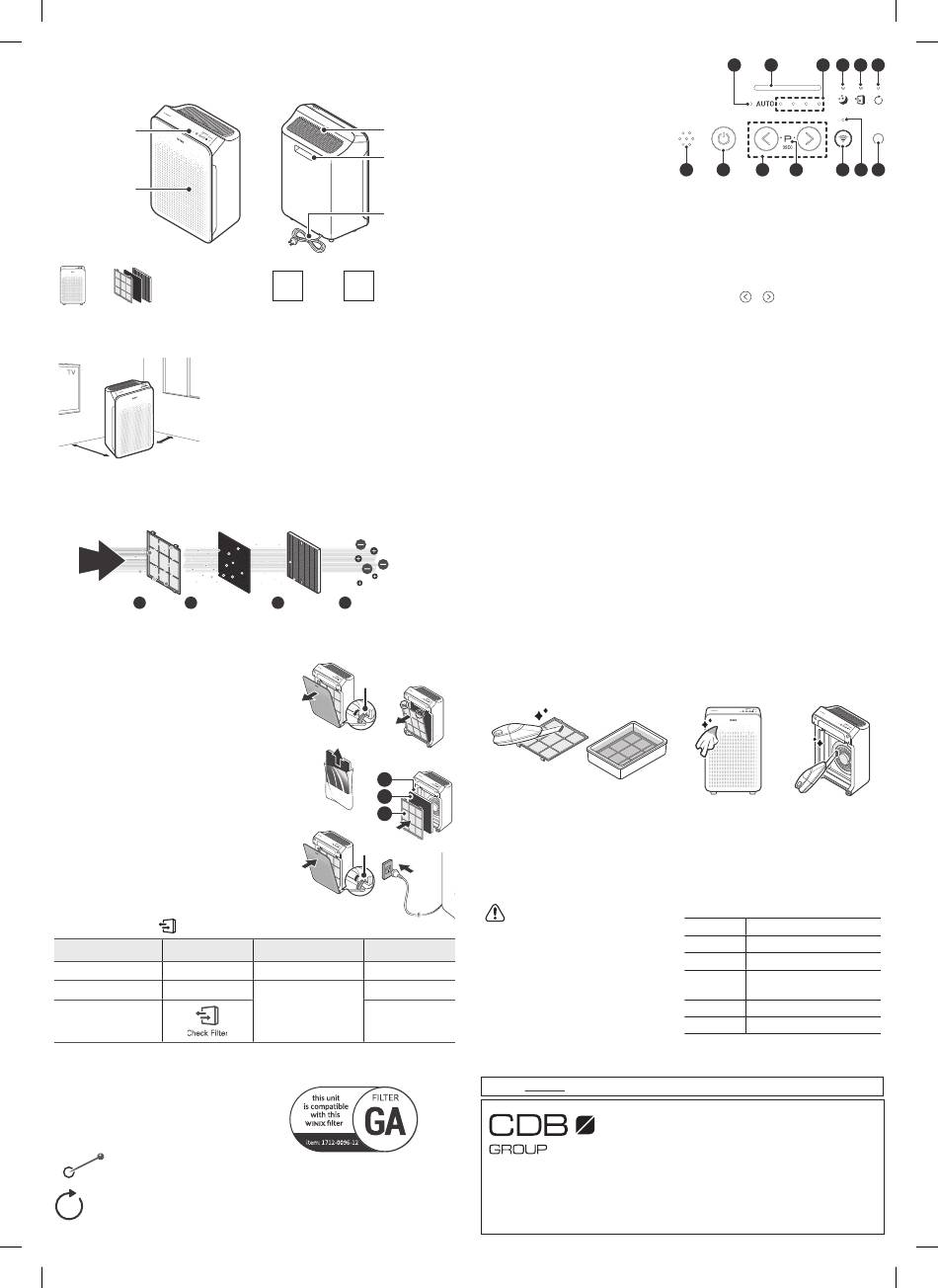

MODEL PART DIAGRAM
FRONT
Control Panel
Front Panel
PACKAGE CONTENTS
(1) Pre-Filter
Unit
(8) Activated Carbon Filters
(2) True HEPA Filters
WHERE TO USE
Allow 30~45cm. of space between TVs, radios, and
other electronics.
certain electronics may cause product malfunction.
Place indoors away from direct sunlight.
exposure may cause product malfunction or failure.
Only place on hard, flat surfaces.
surfaces may result in abnormal noise and vibrations.
30~45cm
Allow at least 30~45cm. from walls for maximum air
30~45cm
flow
4-STAGE AIR PURIFICATION
1 2
Pre-Filter Activated Carbon Filter
INITIAL OPERATION
1.
Remove the front panel by grasping its upper edge
and gently pulling forward.
2.
Remove the Pre-Filter, then the bag of filters behind
it.
3.
Remove filters from protective plastic bag.
4.
Install the filters until they fit securely in place.
03. True HEPA Filter (back)
02. Activated Carbon Filter (middle)
01. Pre-Filter (front)
5.
After filters are installed, close the front panel.
6.
Insert the power cord into an electrical outlet.
MAINTENANCE
When to Replace Filters
Filter Indicator Light
Pre-Filter none
Deodorization Filter none
True HEPA Filter
• When the Check Filter Indicator LED is on, it is time to replace the Filter.
• Intervals between filter replacement may vary depending on environment.
REPLACING FILTERS
Resetting Filter Life:
After replacing your True HEPA Filter, place the Pre-Filter back in and close the Front Panel.
While the unit is on, hold the Filter Reset Button for at least 5 seconds until you hear the beep.
After the beep, the Filter Replacement Indicator will disappear. The True HEPA Filter is now reset.
BACK
Air Outlet
Vent
Handle
Power Plug
User
Wi-Fi Setup Guide
Manual
Electromagnetic interference from
Direct
Flimsy or slanted
Air Purification means it
removes inanimate particles
3 4
True HEPA Filter PlasmaWave® Technology
Latch
03
02
01
Latch
When to Ser vice When to Replace
Clean once every 14 days Permanent
Every 3 months
Can NOT be WASHED
Lasts up to
12 months
CONTROL PANEL
01. Auto Mode Indicator - The LED "Auto"
light will indicate when Auto Mode is
activated.
02. Air Quality Indicator - Color coded LED
light indicates one of three levels of Air
Quality: Red (poor), Amber (fair), and Blue
(good).
03. Fan Speed Indicator - Indicates the
current fan speed.
04. Sleep Mode Indicator - The LED "Sleep"
light will indicate when Sleep Mode is on.
05. Filter Replacement Indicator - LED light
indicates when it is time to change the filter.
06. Filter Reset Button - After replacing the
True HEPA Filter, use a small object such as a
paper clip, to press and hold the Filter Reset
Button for at least 5 seconds until the Filter
Replacement Indicator turns off.
07. Smart Sensor - Detects the amount of
odorous gas in the environment. When in
Auto mode, the fan speed adjusts according
to the detected amount of gas.
08. Power Button - Turns the unit on or off.
During the first 30 seconds of powering up,
the Air Quality Indicator will cycle through
Blue, Amber and Red colors.
• Smart sensor takes approximately 4 minutes
to detect the air quality in the environment
before normal operation begins.
09-1. Fan Speed/Auto/Sleep Buttons - Use
the Fan Speed arrow buttons to set the
desired fan speed. Fan Speeds cycle over
in this sequence: Auto, Low, Medium, High,
Turbo, Sleep, Auto.
Auto Mode: Automatically adjusts fan speeds
according to your indoor air quality. The fan
speed will adjust to low when air quality is
good, medium when fair, and to high when poor.
CLEANING CARE
Cleaning the Filters:
Use a vacuum cleaner or soft brush to
clean the Pre-Filter.
• If it is excessively soiled, rinse in room
temperature water. Do not use detergent or
soap. Allow the filter to dry for 24 hours or
more before using. Intervals between filter
cleaning may vary depending on the air
o
quality. Do not use hot water over 40 C or
volatile fluids such as paint thinner.
N O T I C E
• When cleaning the unit, always unplug the power cord
first and then wait until the unit has cooled down.
• Never disassemble, repair, or modify this unit yourself.
• Do not use flammable sprays or liquid detergents.
• Do not allow children to clean or maintain the unit.
• Before cleaning or maintaining, ensure unit is
unplugged.
• Do not use benzene, alcohol, or other volatile fluids,
which may cause damage or discoloration.
AUSCLIMATE FILTER CLUB
For exclusive savings on replacement filters ausclimate.com.au/pages/filter-club
New Zealand
PO Box 100707
North Shore Mail Centre
Auckland 0745
www.cdbgroup.com
01 02 03 04 05 06
07 08 09 10 11 12
Sleep Mode: When Sleep Mode is activated,
the Air Quality Indicator LED light is disabled.
• Fan speed will automatically set to minimum
speed (lower than 'Low') which will be
nearly silent. When Sleep Mode is active,
PlasmaWave ® will be disabled, but it can be
turned back on.
09-2. PlasmaWave ® Button - Press and hold
the buttons + for 3 seconds
Press the Plasmawave ® button when the unit
is on to enable or disable this feature. By
default, PlasmaWave ® is enabled whenever
the unit is powered on. When the unit is
running, you may hear a chirping or buzzing
sound. The sound is from particles passing
through PlasmaWave ® , it is normal and does
not signify product failure.
10. PlasmaWave ® Indicator - Indicates
®
whether PlasmaWave is enabled or disabled.
11. Wi-Fi Button - Press for 3 seconds to
activate pairing mode. When Wi-Fi is paired,
press the button to turn Wi-Fi off or back on.
12. Wi-Fi Indicator - Enables or disables the
Wi-Fi feature. When in the pairing state, the Wi-
Fi LED flashes. When paired successfully, the
Wi-Fi LED will be a solid white light.
13. Light Sensor - Detects the amount of
ambient light in the environment. When in
Auto Mode, the light sensor detects when to
put the unit into Sleep Mode.
Winix Smart Wi-Fi Setup - Refer to the Wi-Fi
Guide provided inside the box.
Cleaning the Exterior & Interior:
Wipe with a soft damp cloth using room
temperature water.
• Afterwards, wipe it down with a dry cloth.
Open the front panel and clean the interior
with a vacuum cleaner.
• For optimal performance, clean every
1 - 2 months.
SPECIFICATIONS
Model C545(AU)
Voltage AC 220 V - 240 V, 50 / 60 Hz
Power Rate 65 W
350 mm (W) x 215 mm (D)
Dimensions
x 524 mm (H)
Weight 5 kg
Filter SKU Filter GA : 1712-0096-12
Exterior design, and product specifications may be changed
without prior notice to improve product performance.
Australia
PO Box 574
South Morang
Victoria 3752
www.cdbgroup.com
