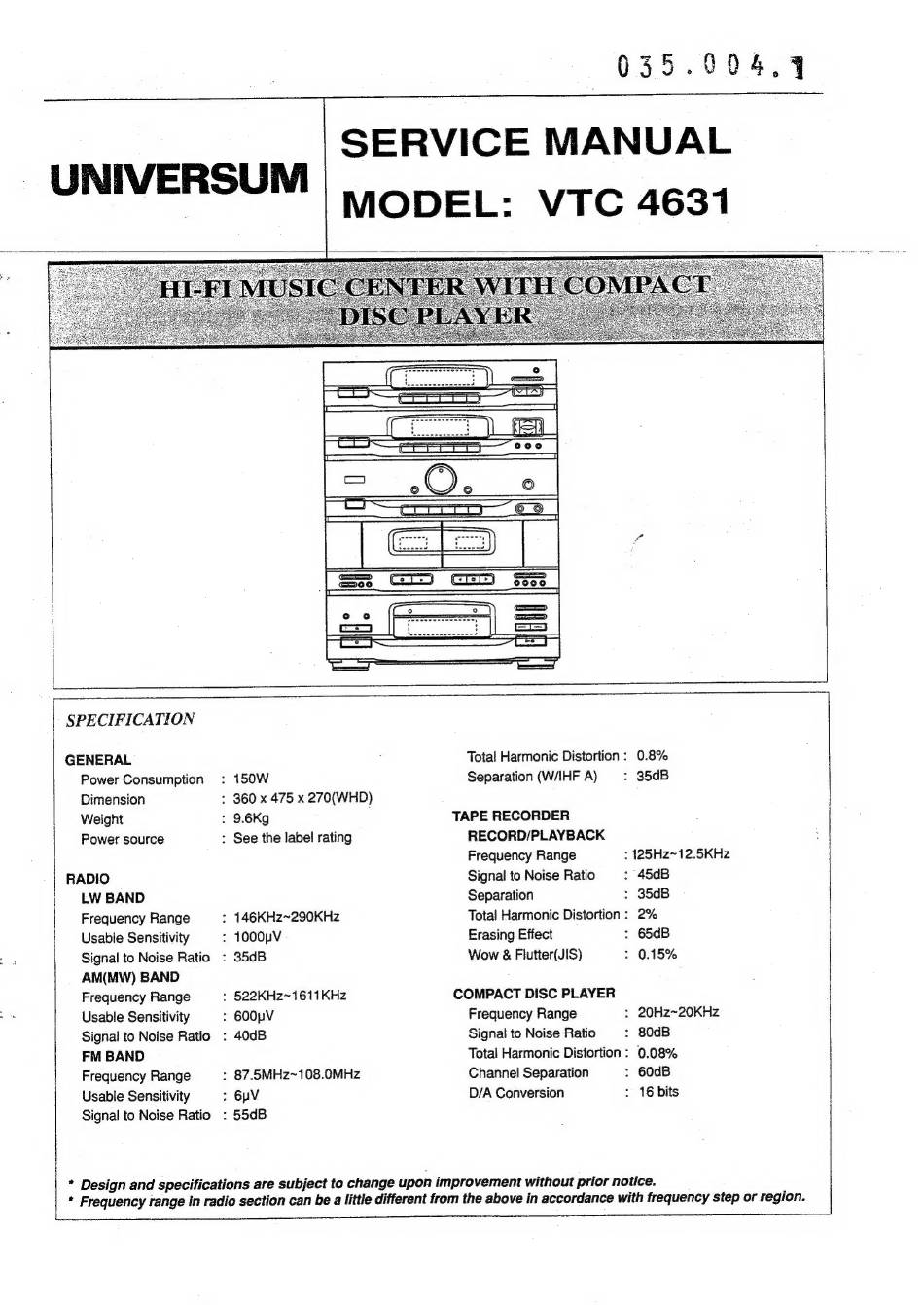

Universum VTC 4631 Service Manual

SPECIFICATION
GENERAL
Power Consumption
Dimension
Weight
Power source
RADIO
LW BAND
Frequency Range
Usabie Sensitivity
Signal to Noise Ratio
AM(MW) BAND
Frequency Range
Usable Sensitivity
Signal to Noise Ratio
FM BAND
Frequency Range
Usable Sensitivity
Signal to Noise Ratio
: 150W
> 360 x 475 x 270(WHD)
: 9.6Kg
: See the label rating
: 146KHz~290KHz
: 1000pV
: 35dB
: 522KHz~1611KHz
: 600pV
: 40dB
: 87.5MHz~108.0MHz
: 6pV
: 55dB
Total Harmonic Distortion : 0.8%
Separation (W/IHF A) : 35dB
TAPE RECORDER
RECORD/PLAYBACK
Frequency Range : 125Hz~12.5KHz
Signal to Noise Ratio : 45dB
Separation : 35dB
Total Harmonic Distortion: 2%
Erasing Effect : 65dB
Wow & Flutter(JIS) > 0.15%
COMPACT DISC PLAYER
Frequency Range : 20Hz~20KHz
Signal to Noise Ratio : 80dB
Total Harmonic Distortion: 0.08%
Channel! Separation : 60dB
D/A Conversion : 16 bits
