nvent TB3GM Instruction Sheet

INSTRUCTION SHEET
TB3GM, TB4GM, TB5GM, TB6GM
ADJUSTABLE MULTI-GANG MASONRY OPEN BACK BOX CENTER PLATE
Part No. Box Gang Size
TB3GM 3 Gang
TB4GM 4 Gang
TB5GM 5 Gang
TB6GM 6 Gang

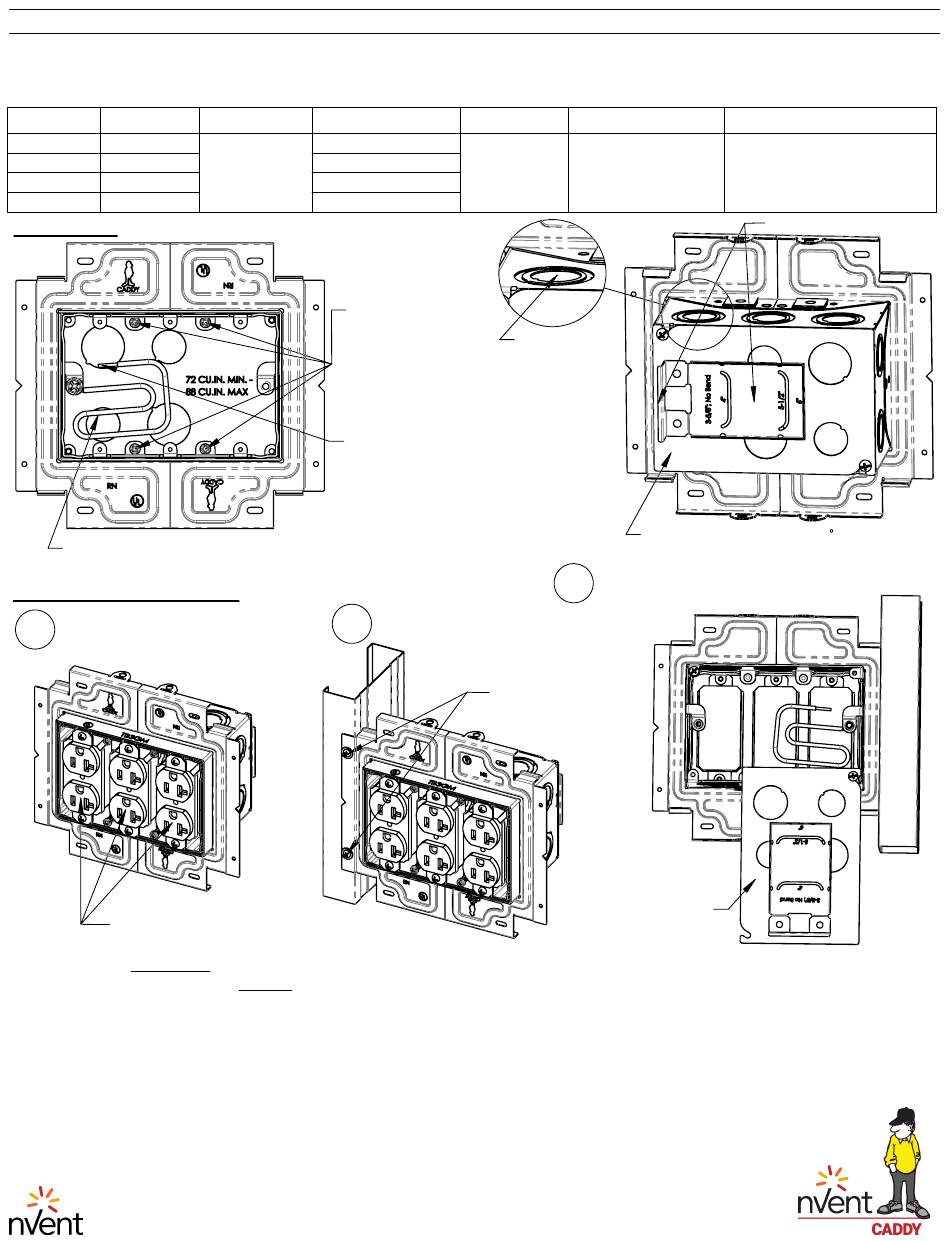

AS SHIPPED
Ground wire; all devices shall be grounded to box
DIRECT ON-STUD MOUNT
1
INSTALL ELECTRICAL DEVICES
(OPTIONAL)
Electrical devices
