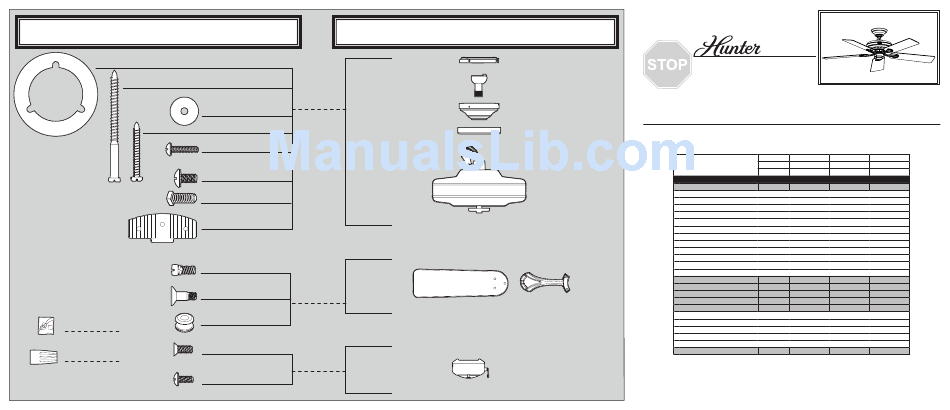

Hunter 20510 Parts Manual

Hardware
(Drawn to Scale)
x 1
x 2
x 4
x 2
x 3
x 3
x 1
x 4
x 11
x 16
x 16
Balancing
x 1
Kit
x 3
Wire
x 4
Connector
x 3
Low Profile
Washer
3" Wood Screw
Flat Washer
Hanger
Bracket
Assembly
1.5" Wood Screw
Locking Screw
Canopy Screw
Setscrew
Mounting Isolator
Screw, Blade
Iron Armature
Blade
Screw, Blade
Assembly
Assembly
Blade
Grommet
Screw, Switch
Housing Assembly
Switch
Housing
Screw, Assembly
Machine, 6-32
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 20510

Part List

Asm. Dwg. # 92890-01
Finish Antique Brass
Item Name Qnty Part #
* Hanging System Kit 1 96760-05
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Low Profile Washer
Screw, Wood
Screw, Wood
Flat Washer
Isolator
Locking Screw
Canopy Screw
Set Screw
Switch/Housing Assembly 1 99808-05
Blade Iron Set 1 92805-05
Blade Set 1 G0677-28
Blade Iron Armature Screw 11 63755-05
* Hardware Kit 1 92890-00-860
Rubber Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit 1 65666-01
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-01-577 01-14-2011 •
20516 20511
92890-04 92890-06
White Antique Pewter
Part # Part #
96760-03 96760-14
99808-03 99808-14
92805-05 92805-05
G0677-26 G0677-21
63755-05 63755-05
92890-00-863 92890-00-865
65666-01 65666-01
