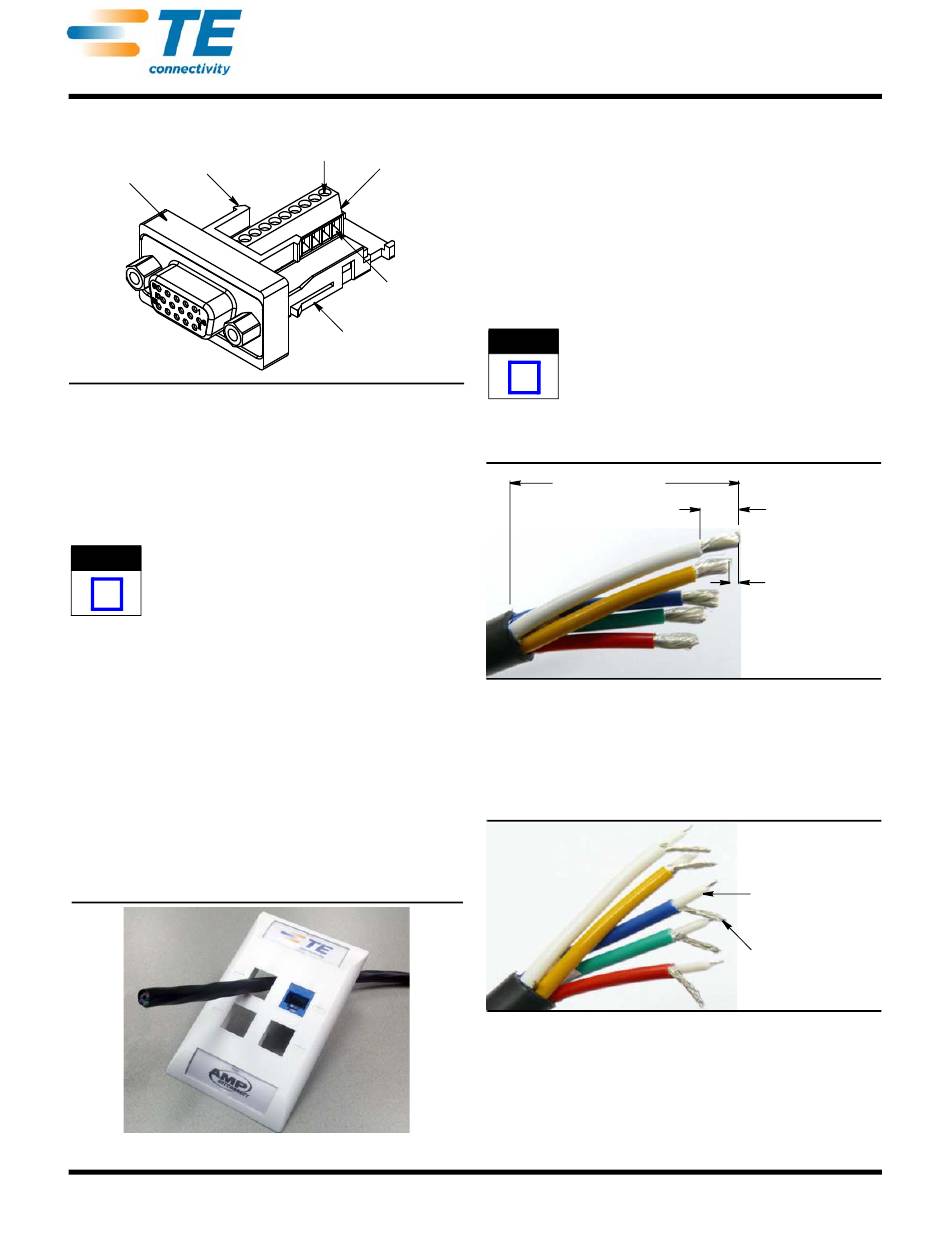

TE Connectivity 1-2111550-3 Instruction Sheet

Retention Latch
(2 Places)
Housing
Figure 1
1. INTRODUCTION
Front-Loading SVGA Connector 1-2111550-3 is
designed to be installed into a wall plate. The
connector accepts 75-ohm 5-conductor mini coaxial
video cable or Category performance cable.
Dimensions in this instruction sheet are in metric
NOTE
units [with U.S. customary units in brackets].
Figures are not drawn to scale.
i
2. DESCRIPTION
The connector consists of a housing and screw
terminal. The screw terminal contains 10 slots and 
10 screws. Each slot accepts a colored wire of the
cable and each screw, when tightened, terminates the
wire to the connector. The housing features retention
latches that hold the connector in the data port
opening of the wall plate.
3. INSTALLATION
1. From the back of the wall plate, feed the cable
through a data port opening. See Figure 2.
Figure 2
© 2012 Tyco Electronics Corporation, a TE Connectivity Ltd. company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or company names may be trademarks of their respective owners.
Front-Loading
Super Video Graphics Array (SVGA)
Connector 1-2111550-3
Screw
Screw
(10 Places)
Terminal
Slot 
(10 Places)
Retention Latch
(2 Places)
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
2. Loosen the screws in the screw terminal of the
connector.
3. Refer to Figure 3, and prepare the cable as
follows:
a. Strip the outer jacket from the cable by 25.4 mm
[1.0 in.].
b. Arrange the wires by color from top to bottom:
white, yellow, blue, green, and red. Then cut each
wire by 3.17 mm [.125 in.] shorter than the
previous wire.
Cable conductor color may vary according to
NOTE

manufacturer.

i
c. Strip the insulation from each wire by 6.35 mm
[.25 in.].
25.4 mm [1.0 in.]
Outer Jacket
Figure 3
d. Separate the conductor from the ground wire
of each wire as shown in Figure 4. Tightly twist
ground strands to ensure that strands do not
make contact with adjacent conductors.
Figure 4
4. Insert each conductor into a slot of the screw
terminal according to color coding of the wiring
diagram given in Figure 5. It is recommended
starting with the shortest wire and moving upward.
Tighten each screw to secure the wire. See Figure 5.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408-32047
17 MAY 12 Rev A
6.35 mm [.25 in.] 
Wire Insulation
3.17 mm [.125 in.]
Each Wire Cut
Note: Not to Scale
Conductor
Ground Wire
1 of 2
