Networking & Communication
Outdoor Speed Dome Internet Camera
ICA-650
Quick Installation Guide
Thank you for purchasing PLANET outdoor speed
dome Internet camera – ICA-650. This quick
installation guide illustrates the hardware and initial
configuration. For more detail information, please
refer to the User's manual in the bundled CD.
Package Content
1 x ICA-650
1 x Quick Installation Guide
1 x CD Disk (includes manual and utility)
1 x Wall Mount kit

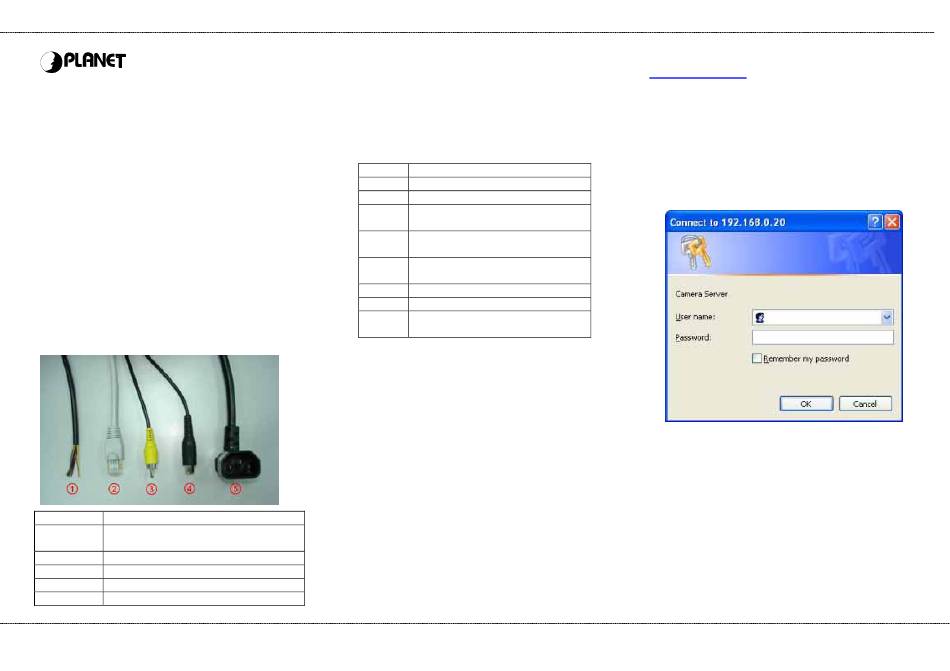

Connectors
Connector
Description
1
Alarm connector. For user to connect
input/output device.
2
LAN Connector.
3
Video-out Connector
4
Audio-In Connector.
5
Power Connector.
If you have sensor/alarm device, the ICA-650
provides an 8-wire alarm cable. The alarm I/O is a
physical interface to sense and/or activate alarm
Version 1.0
signals to a variety of external sensors or alarms.
Alarm connector definition
Pin
Function
Black
Alarm Output #1 (NO)
Brown
Alarm Input #1/2 (K).
Red
Alarm Output #1 (NC). Max
24VDC, 1A
Orange
Alarm Output #2 (COM). Max
24VDC, 1A
Yellow
Alarm Input #2 (A). Max 24VDC,
12mA
Green
Alarm Output #2 (NO)
Blue
Alarm Output #1 (COM)
Purple
Alarm Input #1 (A). Max 24VDC,
12mA.
Configuration Via Web Browser
The ICA-650 provides Web-base configuration for
management and maintenance.
When you installed ICA-650 in your network
environment, for start the web configuration, you
must have the web browser installed on computer.
For Example: Microsoft internet Explorer 5.5 or higher
with Java support
The default IP address is 192.168.0.20. You may now
open your web browser, and key in IP address
http://192.168.0.20
in the address field of you web
browser to logon ICA-650 web configuration page.
Windows will prompt this dialog box for User Name
and
Password. For the first time, please enter :
admin as username and keep password empry to
start Web Management.
If difficulty is met, please refer to the following steps
to establish the connection:
-
Your PC can establish a physical connection to
ICA-650. The PC and ICA-650 might be directly
connected (using the LAN port on the ICA-650)
or connect to the same switch. Please make
sure the Link LED on those devices are light on.
-
The PC must be configured to the same IP
