Log Set Assembly: LOGSMER42
Models: MER42PN, MER42PL, MER42N, MER42L
Leave this manual with party responsible for use
and operation.
CAUTION: Logs are fragile, handle with care.
NOTICE: To simplify the installation process, positively
identify each individual log before beginning installation.
See Figure 1.
Installation
1. Reference the four log pins and the location of the log
stop shown in Figure 2.
LOG STOP
LOG STOP
1 1
2 2
Figure 2 Locations for Log Pins
Log #1: Place Log #1 as shown in Figure 3. The right end touches Log Pin 4. Push the log back until it rests against the
log stop shown in Figure 2.
1 1
1 1
2 2
LOG PINS
LOG PINS
Figure 4 Position Log #2
Log #2: Place Log #2 using the three log pins as shown in Figure 2 and Figure 4.
Log #3: Place the top end of Log # 3 on the notch located on Log #1. See Figure 3 and Figure 5. Place the bottom end of
Log # 3 as shown in Figure 5. The burned out side of Log #2 and the knot on Log #3 align, but do not make contact. See
Figure 5 and Figure 7.
4 4
3 3
2 2
3 3
Majestic • LOGSMER42 Log Instructions • 2598-935 • 8/22

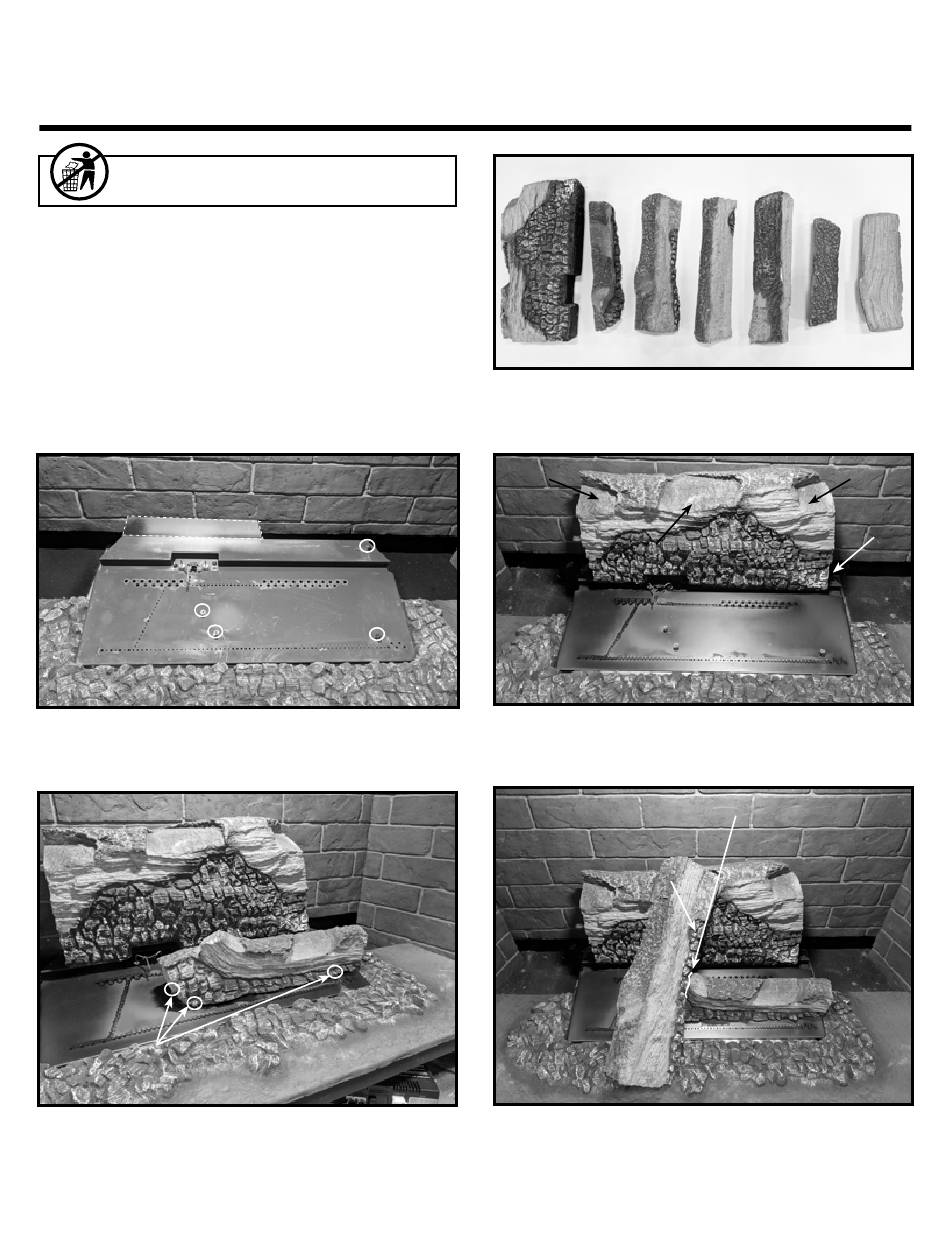

LOG PLACEMENT INSTRUCTIONS
1 1
2 2
3 3
Figure 1 Log Identification
Figure 2
NOTCH FOR LOG #4
NOTCH FOR LOG #4
NOTCH FOR LOG #3
NOTCH FOR LOG #3
Figure 3 Position Log #1
LOG #2 AND LOG #3 ALIGNED, BUT DO NOT TOUCH
LOG #2 AND LOG #3 ALIGNED, BUT DO NOT TOUCH
BURN DETAIL
BURN DETAIL
3 3
Figure 5 Position Log #3
4 4
5 5
6 6
7 7
NOTCH FOR LOG #5
NOTCH FOR LOG #5
1 1
LOG PIN #4
LOG PIN #4
1 1
