- Page 1 OPER ATING INSTRUCTIONS CO gas alarm GX - C300P Professional CO warning device Item number: 300256 www.elektrotechnik-schabus.de...

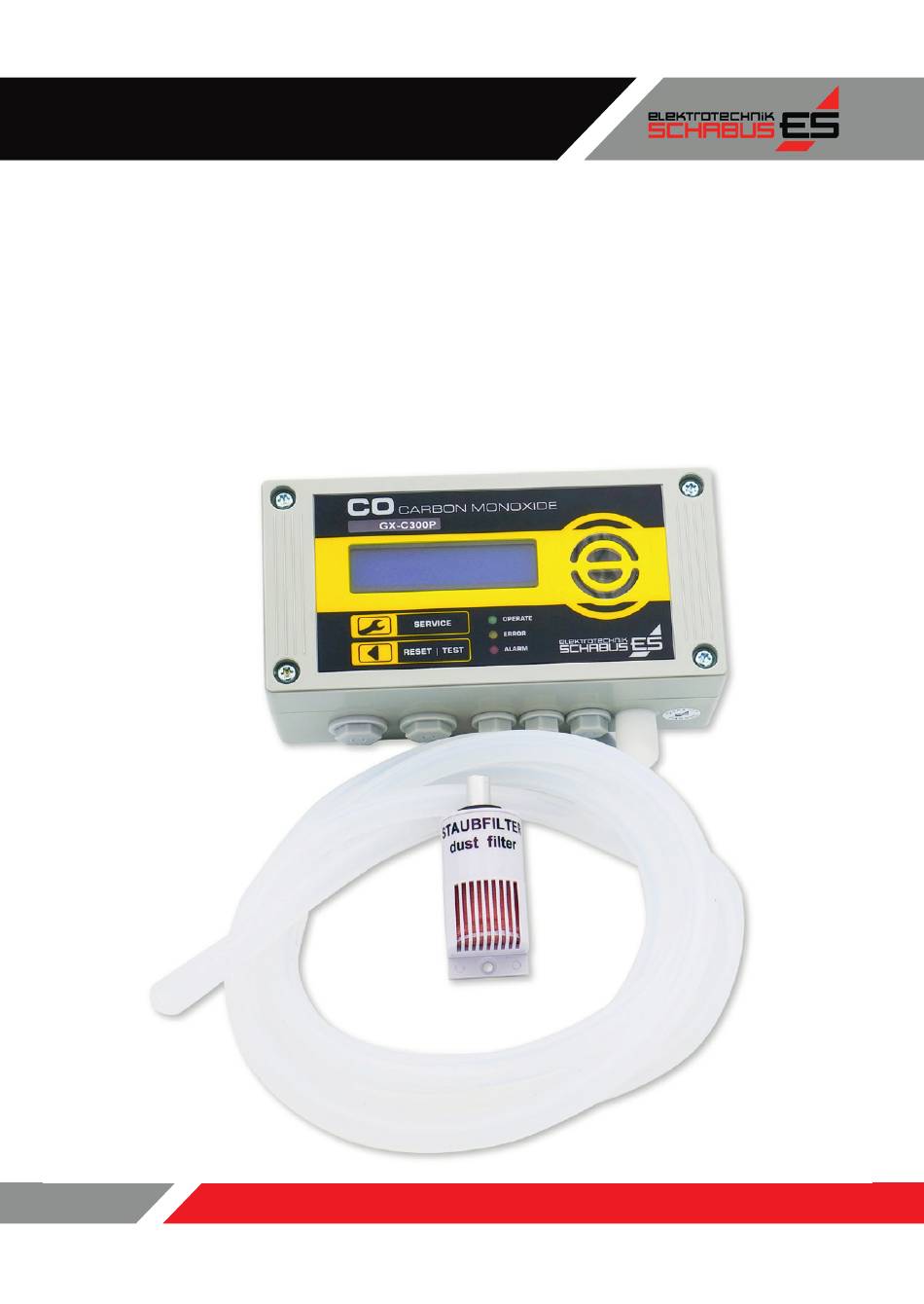

- Page 2 The operating instructions are an integral part of this product. Please keep them for future reference! Scope of delivery 1 GX-C300P CO warning device 2 metres of hose (item no. 21002) 1 dust fi lter (item no. 300259) with small screw + dowel and 2 cable ties 1 instruction manual and installation material (4 screws, 4 plugs, 2 screwdrivers, 2 large + 1 small PG screw fi...
- Page 3 Once the last µl has evaporated, this is detected by the sensor test and a non-recoverable fault is displayed. Have your GX-C300P fi tted with a new sensor and recalibrated by Elektrotechnik Schabus. Intended use...
- Page 4 Observe the 5 safety rules Assembly instructions The GAS ALARM GX-C300P may only be installed on a wall in dry indoor areas. The installation position ‘at medium height’ is selected so that the display is easy to read when standing. This ensures that the warning device functions perfectly.
- Page 5 Anschlussklemmen L L N N G Ö S G Ö S L, N and PE terminals are connected 2 each to facilitate bridges to the relay, Relay: G = common contact, Ö = normally closed contact, S = normally open contact Laying the hose to thermally demanding rooms The warning device must always be positioned above the hose inlet Sack formation is ruled out in any case by skilful routing...
- Page 6 4 metres are used, the response time can be considerably delayed. Hose routing and fastening If the GX-C300P is installed vertically above the outlet hole, it is not neces- sary to fi x or guide the hose, unless the area is a public space.
- Page 7 fi lter requires at least similarly tempered rooms in which people are (or can be) permanently present. Like the GX-C300P itself, the dust fi lter is only permanently suitable for temperatures between +10°C and +50°C.
- Page 8 have probably already noticed that we have made the housing relatively tight. On the one hand, you can‘t poison yourself in the event of an alarm and CO-laden air escaping while you watch the display intently, and on the other, we save the time-consuming processes of ‘cooling’ or ‘heating’, as this already takes place in the piece of hose, which is at least 1 metre long.
- Page 9 To check the sensor relay, press the test button for approx. 5 seconds, after which a sensor test is carried out. We recommend carrying out this sensor test every four weeks. Alarm When the alarm thresholds are reached, the alarm is signalled with a loud, piercing sound from a piezo sounder, the display light and the red LED fl...
-
Page 10: Troubleshooting
Press the service button repeatedly until the display indicates the type of fault detected. The term ‘error’ and a number will appear. Please give this number to Elektrotechnik Schabus Technical Support, who will work with you to fi nd a solution. - Page 11 technical support, see 6.1 ‘Error’. Maintenance To check the sensor status, press the test button for approx. 5 seconds, after which a sensor test is carried out. We recommend carrying out this sensor test every four weeks, but at the latest after one year. Remove any dust from the GX C300P CO warning device before the annual sensor test and only use dry cloths.
- Page 12 Note for maintenance companies Each time you press the SERVICE button, you move to the next display until the main display appears again. If you remain on a display, the appliance au- tomatically switches back to the main display after 30 minutes (60 min. from page 06) or if you press and hold the SERVICE button a little longer.
- Page 13 Date Time Outdoor temperature CO2 value % _____________ __________ ___________________ ______________ _____________ __________ ___________________ ______________ _____________ __________ ___________________ ______________ _____________ __________ ___________________ ______________ _____________ __________ ___________________ ______________ _____________ __________ ___________________ ______________ _____________ __________ ___________________ ______________ _____________ __________ ___________________ ______________ _____________ __________ ___________________ ______________...
- Page 14 · We grant a statutory warranty on your electronic product from Elektrotechnik Schabus for material defects and quality defects from the date of purchase. Elektrotechnik Schabus will repair or replace your device free of charge under the following conditions: In the case of a statutory warranty, the appliance must be sent in with...
- Page 15 Return shipment If your device is defective, please contact us: Phone +49 (0) 80 36 / 67 49 79 - 0 Email info@elektrotechnik-schabus.de Please state your full address and the reason for the return. We will send you a return label by e-mail free of charge (only within Germany). Under no circumstances should you send us an unfranked parcel, as we will not accept it! Unauthorised returns that do not constitute a complaint will be charged to you retrospectively.
- Page 16 QR code for downloading or reordering at: Elektrotechnik Schabus GmbH & Co. KG +49 (0) 80 36 / 67 49 79 - 0 Baierbacher Str. 150 MAIL info@elektrotechnik-schabus.de D-83071 Stephanskirchen www.elektrotechnik-schabus.de 300256 AN-GX-C300P-240314-SCHABUS-EN...
