Connecting to 4–20 mA Output Terminals
The 4–20 mA analog output (AO) terminals come with a default factory configuration.
The 4 mA value corresponds to the minimum displayed value in the Measurements panel and the 20 mA
value, to the maximum displayed value (see "Measurements Panel" on page 45). The analog output is
linear in between these two thresholds.
WARNING
Use only recommended shielded cables for wiring the 4–20 mA outputs interface.
By default, these AO terminals are in passive mode. They can be put in active mode if need be (for
more information, refer to the Sensi+ User Guide).
—

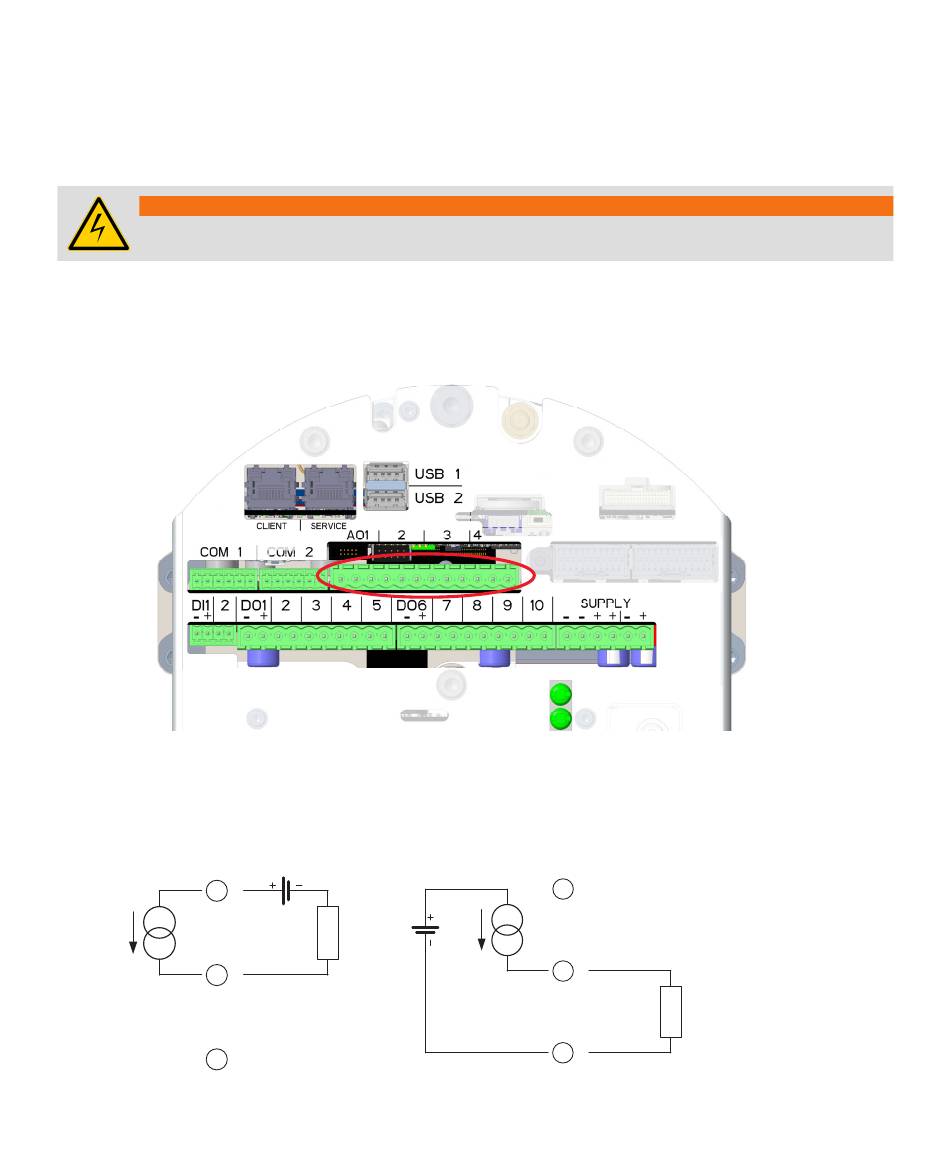

Figure 18 Internal Analog Output (AO) terminals
4-20mA Ac�ve
GLA533
Lp+
Lp-
COM
—
Figure 19 4–20 mA Output Terminal Electrical Configurations (for more connection details, see Table 3 on page 34)
4–20mA Passive
Sensi+
A
B
C
Client
Unconnected
+
-
Client
+
–
Unconnected
DI Internal circuit
GLA533
DI Internal circuit
GLA533
4-20mA Active
Sensi+ Client
A Unconnected
+
B
–
C
4-20mA Passive
GLA533 Client
+
For current > 0.3mA
Logic low < 0.5V
Undetermined 0.5 to 2.5V
Logic high > 2.5V
DI Dry Contact
IN IN
COM COM
DO High side load
OUT OUT
COM COM
33
Connecting Sensi+
DI Signal
Client
DI Inter
GLA
Client
30Vmax
1A
DI Inter
GLA
