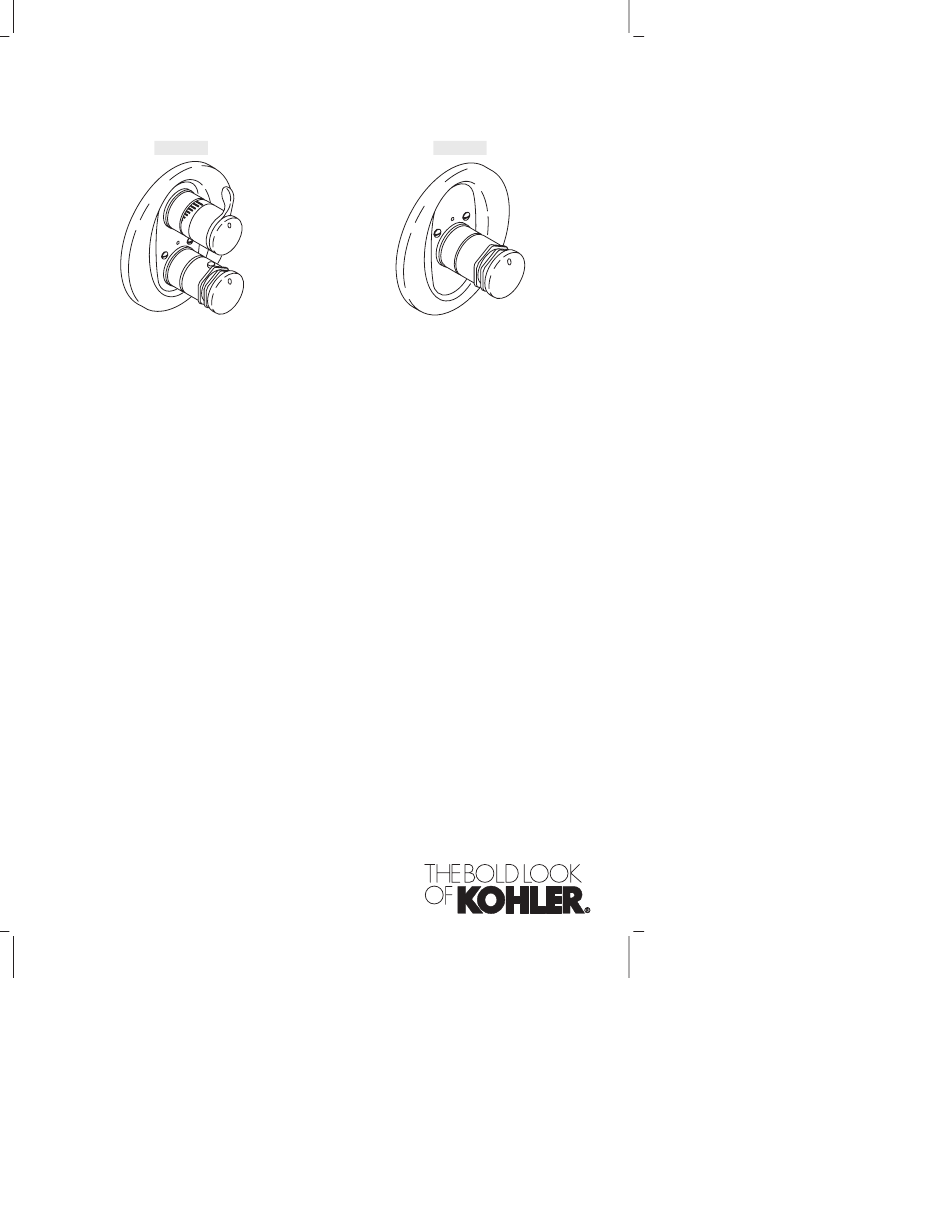

- Page 1 Installation Guide Thermostatic Mixing Valve Trim K-T9493 K-T9494 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page“ Français-1” Español, página“ Español-1” 1012606-2-B...
-
Page 2: Important Instructions
If you do not understand any of the installation or temperature adjustment instructions in this document, in the United States please contact our Customer Service Department at 1-800-4-KOHLER. Outside the U.S., please contact your distributor. IMPORTANT NOTICE TO INSTALLERS! Please fill in the blanks in the information box in the Homeowners Guide and on the valve label. -
Page 3: Tools And Materials
Wrench Screwdrivers Thank You For Choosing Kohler Company We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don’t hesitate to contact us. Our phone numbers and website are listed on the back cover. - Page 4 The installer must check the mixed flow temperature after installation, and adjust the valve as needed according to the instructions. Kohler Co. reserves the right to make revisions in the design of products without notice, as specified in the price book. 1012606-2-B...
-
Page 5: Water Temperature Adjustment
If necessary, carefully pry the limit stop off the valve cartridge with a thin blade, and re-install it so the white mark faces upward as required. The limit stop must be correctly positioned to ensure trim fit. Kohler Co. 1012606-2-B... - Page 6 Water Temperature Adjustment (cont.) Do not turn the thermostatic mixing valve stem after you adjust the temperature setting until you have installed the mixing handle trim. 1012606-2-B Kohler Co.
- Page 7 Once applied, carefully trim away any excess gasket material so the escutcheon drain opening is not blocked. Carefully slip the escutcheon over the collar(s) and against the finished wall. Position the escutcheon so the ″Kohler″ logo is at the top. Secure the escutcheon to the valve with two screws.
- Page 8 (as shown in the illustration). If needed, apply a small amount of lubricant to the inside wall of the cap to aid in assembly; a capsule of lubricant is included in the hardware kit. 1012606-2-B Kohler Co.
- Page 9 Let the water run briefly and check the water temperature with the thermometer to confirm that it is at 120° F (49° C). If the water temperature matches the marked setting, then rotate the knob clockwise so the ″104″ or ″40″ mark faces upward again. Kohler Co. 1012606-2-B...
- Page 10 Press the cap onto the valve so the cap detent is in line with knob button (as shown in the illustration). If needed, apply a small amount of lubricant to the inside wall of the cap to aid in assembly; a capsule of lubricant is included in the hardware kit. 1012606-2-B Kohler Co.
