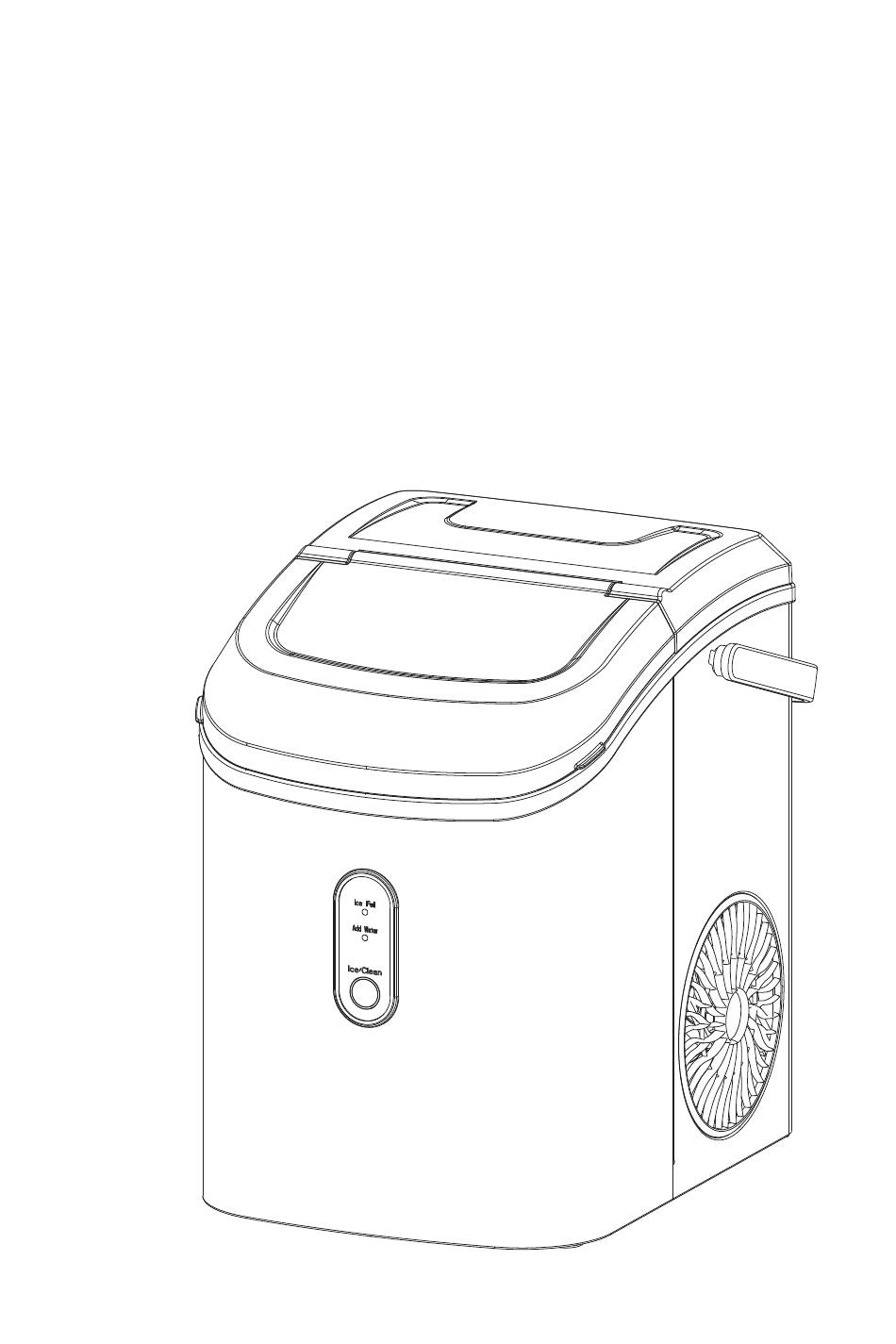

- Page 1 PORTABLE NUGGET ICE MAKER Instruction Manual SKU: ZX-IM-12G...
- Page 2 Congratulations Dear Customer: Welcome to our family. Thank you for purchasing one of our products. Our goal is to provide you with superior service. If there is anything missing from or wrong with your order, or if you have any questions about using our ice maker, PLEASE contact us. Email: support@homyd.com Our team is available 24/7 to address your questions, comments, and concerns.
- Page 3 Q&A 1. How often do I need to clean my ice maker? It depends on your usage habits. If you use the ice maker often, it is recommended that you clean it at least once a week. Failure to clean the machine will cause scale accumulation, which will eventually block the pump and cause the product to stop working.
- Page 4 If you do not know how to do this, please contact the Euhomy team. We will refer you to a professional video to help you solve the problem. 1O. Why is there water flowing but not making ice? If the ambient temperature and refrigeration pipe are OK, then the refrigerant in the machine has leaked.
-
Page 5: Table Of Contents
Contents Safety Precautions Unit Construction & Operation 5-12 13-15 Maintenance & Tips Technical Parameters & Circuit Diagram Paking List Warranty Troubleshooting:support@homyd.com... -
Page 6: Safety Precautions
Safety Precautions Your safety and the safety of others are very important. We have provided many important safety messages manual and your appliance. Always read and obey all safety messages. This is the safety alert symbol: All safety messages will follow the safety alert symbol and the word “DANGER” or “WARNING” These words mean: You can be killed or seriously injured if you don’t immediate follow instructions. - Page 7 Safety Precautions When using electrical appliances, basic safety precau- tions should be followed to reduce the risk of fire, elec- tric shock, and injury to persons or property. Read all instructions before using any appliance. Do not operate this or any other appliance with a damaged cord. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to prevent a hazard.
- Page 8 Safety Precautions WARNING: This appliance must be grounded. DANGER: Risk of Fire or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices to Defrost Ice Maker. Do Not Puncture Refrigerant Tubing. DANGER: Risk of Fire or Explosion. Flammable Refrigerant Used. To Be Repaired Only by Trained Service Personnel.
-
Page 9: Unit Construction & Operation
Unit Construction & Operation 1、Float switch； 7、Top cover, removable from the top； 8、Hot Air outlet； 2、Secondary water reservoir: It connects directly with the evaporator； 9、Ice basket； 10、Water drain cap: at front btom side of the unit； 3、Water reservoir； 11、Ice scoop； 4、Maximum water level；... - Page 10 Unit Construction & Operation Rotate the handle to the same angle as the mounting hole on the machin,Put lt on the machine. DANGER *Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, please call our customer service.
- Page 11 Unit Construction & Operation HOW TO START THE UNIT 1. Take out the ice basket and fill the water tank with potable water—0.3 gallon at the most at one time. 2. Re-place the ice basket. pour water 3. Plug in the ice maker. The ring indicator light will be red. To make ice, quickly press the "ICE/CLEAN"...
- Page 12 Unit Construction & Operation CLEANING When activating the cleaning function for the first time or after a long time, it is highly recommended to run the following procedure first. 1. Before the cleaning procedure, be sure the water drain cap has been inserted into the appliance; otherwise, the cleaning function will not work properly.
- Page 13 Unit Construction & Operation SYSTEM CLEANING/SANITIZING PROCEDURE 1. Unplug the ice maker. 2. Take off the bottom drain cap and drain the water into a sink. See the figure below. 3. Make a daily cleaning solution by diluting 1 teaspoon of household bleach in 5 cups of water.For monthly cleaning and removal of mineral deposits, please use white vinegar instead of the above bleach-and-water solution.
- Page 14 Unit Construction & Operation 4. Pour the daily cleaning solution into the water tank, up to the MAX water level. See the figure below. 5. Plug in the ice maker. Press and hold the "ICE/CLEAN" button for 5 seconds to activate the 15-minute cleaning process.
- Page 15 Unit Construction & Operation 7. Repeat steps 4 through 6 with fresh water for 2 more cycles to rinse the interior. 8. Replace the drain cap on the bottom. See the figure below. 9. When completed, fill the unit with fresh water. Press the "ICE/CLEAN" button to start the ice-making process.
-
Page 16: How To Make Ice Cubes
Unit Construction & Operation HOW TO MAKE ICE CUBES 1. When making ice for the first time or after a long time, it is highly recommended to clean the ice maker first. 2. Before making ice, be sure the water drain cap has been inserted into the appliance; otherwise, the ice-making function will not work properly. -
Page 17: Maintenance & Tips
Maintenance & Tips MAINTAINING YOUR ICE MAKER Remove the exterior and interior packaging. Check that all the accessories are included. If any parts are missing, please contact our customer service department. Remove all the tape on the unit. Take out the accessory parts inside. Clean the interior with lukewarm water and a soft cloth. - Page 18 Maintenance & Tips MAINTAINING YOUR ICE MAKER DANGER Before using your ice maker, it is strongly recommended to clean it thoroughly. Unplug the unit before cleaning or maintaining it. Take out the ice basket. Clean the interior with diluted detergent, warm water, and a soft cloth. Rinse the interior with clean water.
-
Page 19: Correct Disposal Of This Product
Maintenance & Tips Note: Do not use organic solvents, boiled water, detergent, strong acids, strong alkali, or other harsh substances for cleaning. Please empty the water tank and dry it before storing the ice maker if it will not be used for a long time. CORRECT DISPOSAL OF THIS PRODUCT When the unit is taken out of service, disposal of this unit and its materials shall be in accordance with national regulations. -
Page 20: Technical Parameters & Circuit Diagram
Technical Parameters & Circuit Diagram TECHNICAL PARAMETERS Model ZX-IM-12G Protection Type Power 115V/60Hz Ice-Making Current 2.7A Refrigerant R600a, 0.57oz/16g Design Pressure, High Side 290psig Low Side 88psig Vesicant Net Weight 8.9kg Dimensions 287x220x322mm CIRCUIT DIAGRAM... -
Page 21: Packing List
Packing List ADDITIONAL ACCESSORIES Ice Scoop Ice basket Description Quantity Nugget Ice Maker 1 pc Handle 1 pc Ice Basket 1 pc Ice Scoop 1 pc Manual 1 pc... -
Page 22: Warranty
Warranty... -
Page 23: Troubleshooting:support@Homyd.com
Troubleshooting (support@homyd.com) Solution Problem Possible cause(s) Stop the ice maker,fill water, ADD WATER Lack of water. and press“ICE/CLEAN” button indicator turns on again to restart the unit. There is too much ice. Remove any ice cubes. ICE FULL indicator turns on Remove any obstacles from inside or Blockage.
