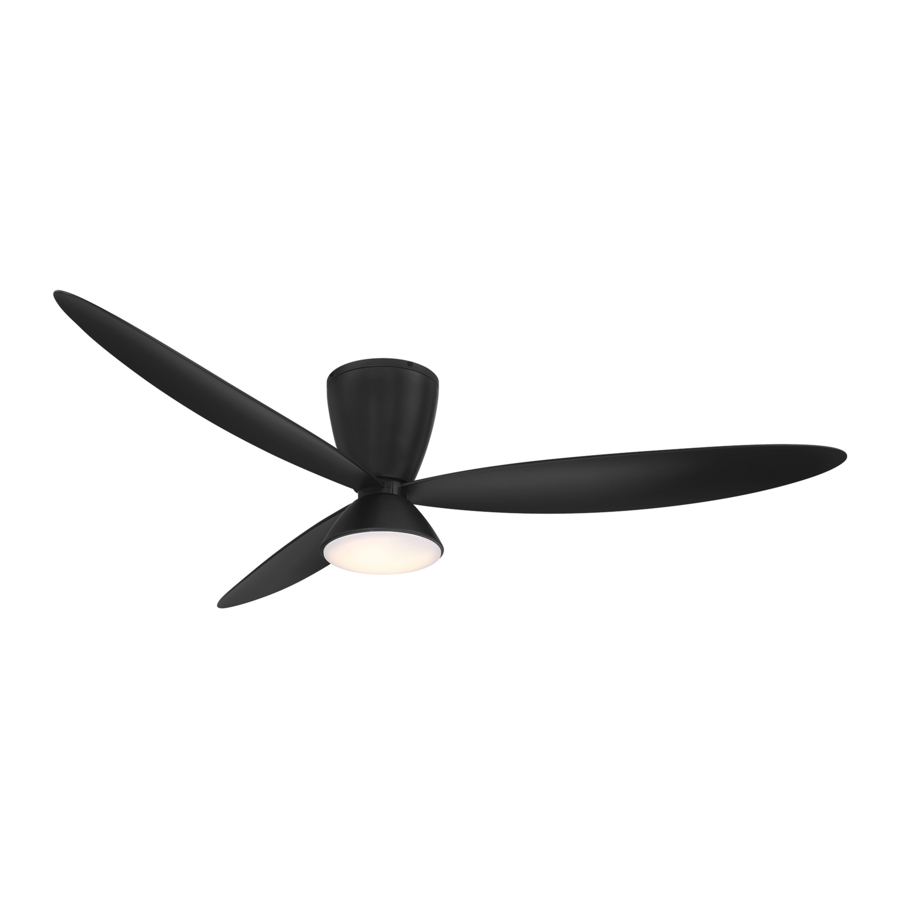

minkaAire Hourglass F468L-CL Manual

PACKAGE CONTENTS

Unpack your fan and check the contents. You should have the following items:

  1. Fan Blades (3)
  2. Mounting bracket
  3. Fan motor/housing assembly
  4. Light kit plate
  5. 20W LED light kit
  6. PC shade
  7. Remote control with holder and 2 mounting screws 1.5V AAA battery (2)
  8. Balancing kit
  1. Mounting hardware:
    #10x1.5" Wood screws (2 PCs.)
    #8x3/4" Machine screws (2 PCs.)
    Lock washers (2 PCs.)
    4mm Star washers (2 PCs.)
    Washers (2 PCs.)
    Wire nuts (3 PG.)
  2. Blade attachment hardware:
    1/4"x12mm Screws with lock washers (7 PCs)
    Flat Washers (7 PCs)

INSTALLING THE MOUNTING BRACKET

Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.


All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or components not supplied by Minka Aire@ with the fan will void the Minka Aire@ Warranty.

REMEMBER: To turn off the power. Follow the steps below to hang your fan properly.

Step 1.
Attach the mounting bracket to the outlet box with two screws and washers provided. Make sure the bracket is tight and secured. (Fig. 1)
INSTALLING THE MOUNTING BRACKET

Step 2.
Lift fan into position by hanging the motor assembly onto the hook from the ceiling mounting bracket allowing it to hang freely. (Fig. 1)

ELECTRICAL CONNECTIONS


The use of Dimming devices not compatible with ceiling fans will cause unwanted behavior including loud humming and will cause permanent damage to you fans electrical component.


To avoid possible electrical shock be sure electricity is turned off at the main fuse or breaker box before wiring.

warning NOTE: TheAire Control® Systemis equipped with a learning frequency function which has 1024 code combinations to prevent potential interference from other remote units. The frequency on your Transmitter unites have been preset at the factory. (Fig. 2)

No frequency change is necessary, should you desire to install another fan within the same home or area with a separate frequency code please see the "frequency interference" troubleshooting section of this instruction manual to learn how to change the frequency.

warning NOTE: Fan must be installed from a maximum distance of 40 feet from the transmitting unit for proper signal transmission between the transmitting unit and the fan's receiving unit.

Step 1.
Motor to house supply wires electrical connections: connect the white wire (neutral) from the outlet box to the white wire marked "AC in N" from the receiver. Connect the black wire (hot) from the outlet box to the black wire marked "AC in L" from the receiver. Secure all wire connections with the plastic wire nuts provided. (Fig. 3)
ELECTRICAL CONNECTIONS

Step 2.
If your outlet box has a ground wire (green or bare copper) connect this wire to the mounting bracket and motor assembly ground wires. If your outlet box does not have a ground wire, then connect the mounting bracket and motor assembly ground wires together. Secure wire connection with the plastic wire nut provided.

After all splices are made, check to make sure there are no loose strands. As an additional precaution we suggest to secure the plastic wire connectors to the wires with electrical tape.

FINISHING THE INSTALLATION

Step 1.
Loosen two of the four screws from the mounting bracket and remove the other two. (Fig. 4)
FINISHING THE INSTALLATION - Step 1

Step 2.
Remove the motor assembly from the mounting bracket hook, lift the motor assembly up and attach motor assembly onto mounting bracket, aligning the keyhole slot on the motor assembly with the loosened screws on the mounting bracket. (Fig.4)

Step 3.
Twist clockwise till lock. Reinstall the two screws previously removed and tighten all four screws securely. (Fig.5)
FINISHING THE INSTALLATION - Step 2

BLADE INSTALLATION

The fan motor assembly is shipped with motor support block to prevent movement during transportation. Remove the motor support block from the motor assembly and discard. (Fig. 6)
BLADE INSTALLATION - Step 1

warning NOTE: Start to install the blades from the arrow sign.

Align the holes from the blade to the holes from the flywheel, and tighten the blade with flat washer and screws with lock washer provided.

Repeat the process with remained blades. (Fig. 7)
BLADE INSTALLATION - Step 2

INSTALLING THE LIGHT KIT PLATE

Step 1.
Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove)

Step 2.
Place the key holes from the light kit plate over the 2 screws previously loosened from the mounting ring, turn the light kit plate until it locks in place at the narrow section of the key holes. Secure by tightening the 2 screws previously loosened and the one previously removed. (Fig. 8)
INSTALLING THE LIGHT KIT PLATE

INSTALLING THE LED LIGHT KIT

warning NOTE: Before starting installation, make sure power is turned off at the circuit breaker.


The light source is designed for this specific application and can overheat if serviced by untrained personnel. If any servicing is required, the product should be returned to an authorized service facility for examination or repair.

Step 1.
While holding the LED light kit under the fan motor assembly, make the 2-pin wire connections (Fig. 9)
INSTALLING THE LED LIGHT KIT

  • White to white
  • Blue to blue

Step 2.
Remove 3 screws from the light kit plate. Align the holes from LED light kit to the holes on the light kit plate, and tighten the LED light kit with the three screws previously removed.

INSTALLING THE PC SHADE


Before starting installation, make sure power is turned off at the circuit breaker.

Raise the PC shade up against the light kit plate and secure it to the fan by turning the pc shade clockwise until snug. DO NOT OVERTIGHTEN. (Fig.10)
INSTALLING THE PC SHADE

OPERATING THE REMOTE CONTROL/WALL CONTROL

Remote Control only: Install two AAA 1.5 volt batteries (included). To prevent damage to transmitter remove the battery if not used for long periods of time.


THIS REMOTE CONTROL & DC FAN MOTOR ARE DESIGNED TO PERFORM A ONE TIME SELF CALIBRATION TEST. THIS. TEST WILL BEGIN ONCE A NEW CODE HAS BEEN SET, AND WILL LAST APPROXIMATELY ONE MINUTES.

Your DC brushless motor is equipped with a self learning frequency function remote control. Restore power to ceiling fan and test the transmitter as below for proper operation:

  1. 1, 2, 3, 4, 5 and 6 button:
    These six buttons are used to set the fan speed as follows:
    1 = minimum speed
    2 = low speed
    3 = medium low speed
    4 = medium speed
    5 = medium high speed
    6 = high speed
  2. Reverse button:
    This button is used to change the direction of the rotation of the blades; forward for warm weather or reverse for cool weather.
  3. button:
    This button turns the power Off to the Fan.
  4. button:
    These buttons turn the light ON or OFF and also control the brightness settings of the light. The following instructions apply to ceiling fans that feature a DOWN light ( button) only or ceiling fans that feature an UP light ( button) and a DOWN light ( button) that are controlled independent of each other;

Press and release the button for the desired light to turn the light ON or OFF. Press and hold the button to set the desired light brightness. The light will cycle between bright and dim settings as long as the button is pressed. The light key has an automatic auto-resume feature that allows the light to remain at the same brightness as the last time it was turned off.

warning NOTE: The auto learning function will only mandate within 60 seconds when turning the fan's AC power ON.

  1. Select desired frequency from the back of transmitter.
  2. Within 60 seconds of turning AC power on, press and hold the "(OFF)" button to enter the learning function. Once the fan has detected the remote controls's frequency, the down light of your fan, if applicable, will blink, and the fan blades will start to spin.

warning NOTE: During self calibration test, the remote will be non-function.

warning NOTE: The learning frequency function and self calibration test will continue to retain the last set frequency and calibration set even when the AC power is shut off. If the frequency is changed the self calibration test will occur again.

  1. Lock position: The DC motor has a built-in safety against obstruction during operation. The motor will get locked operation and disconnect power after 30 seconds if interruption occurs. Please remove obstacles before re-set.
  2. Over 80W protection: When the receiver detects motor power consumption which is greater than 80W, the receiver's power will stop and operation will be immediately discontinued.
    Turn the receiver power on after 5 seconds.

Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans.

warning NOTE: Wait for the fan to stop before reversing the direction of the blade rotation.

Warm Weather (Forward)
A DOWNWARD airflow creates a cooling effect as shown in Figure 11.

This allows you to set your air conditioner on a warmer setting without affecting your comfort.

Cool Weather (Reverse)
An UPWARD airflow moves warmer air off the ceiling area as shown in Figure 12.

This allows you to set your heating unit on a cooler setting without affecting your comfort.

ENJOY YOUR SMART CEILING FAN

warning NOTE: Before moving on to learning about your new smart ceiling fan, please be sure to test all your fans functionalities using your remote control first.

To enjoy all the potential of your new ceiling fan. You'll need to download the BOND HOME app. Available on the Google Play:
play.google.com

and Apple Store:
www.apple.com

You can use the QR code shown in (Fig. 13) to download the app, or you can download the app by visiting https://bondhome_io/app and follow the prompts.

Scan QR Code
Fig, 13

warning NOTE: Please turn to our "Troubleshooting section" for additional information on your Smart Ceiling Fan.

CARE OF YOUR FAN

Here are some suggestion to help maintain your fan.

  1. Because Of the fan's natural movement some connections may become loose. Check the support connections, brackets and blade attachments twice a year. Make sure the you are secure. (It is not necessary to remove fan from the ceiling).
  2. Clean your fan periodically to help maintain its new appearance over the year.

    many common household cleaning products contain chemicals that could damage the finish of your fan. Use only a soft lint free cloth and soapy water.
  3. If your fan is provided with wood veneer blades; you can apply a light coat of furniture polish for additional protection and enhanced beauty. Cover small scratches with a light application of shoe polish.
  4. Use a lint free lightly damp cloth or duster to remove dust from the blades.
  5. There is no need to oil your fan. The motor has permanently lubricated bearings.
  6. If your fan is provided with glass shades, clean with lukewarm soapy water and a soft cloth or sponge.
    DO NOT IMMERSE GLASS SHADES IN HOT WATER. DO NOT PUT GLASS SHADES INTO AN AUTOMATIC DISHWASHER.


MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION, 'ELECTRICAL CONNECTIONS".

TROUBLESHOOTING

SYMPTOM
Fan will not start

SOLUTION

  • Check to make sure the wall switch is turned on.
  • Check circuit fuses or breakers.
  • Caution! Make sure the power is turned off before performing the following steps.
  • Remove canopy and check wire connections.
  • Check wall control transmitter connections (if applicable).
  • warning NOTE: Fan must be installed at a maximum distance of 40 feet from the transmitting unit for proper signal transmission between the transmitting unit and the fan's receiving unit.

SYMPTOM
Fan Sounds Noisy

SOLUTION

  • Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time.
  • Make sure the screws that attach the fan blade holder to the motor hub is tight.
  • Make sure outlet box is secured to building structure, if necessary use the wood screws provided to further secure outlet box to joist.
  • Make sure hanger bracket is secure to the outlet box, screws are tight.

SYMPTOM
Fan Wobble

SOLUTION

  • warning NOTE: All blade sets are grouped by weight. Because wood and plastic blades vary in density, the fan may wobble even though blades are matched.
  • Make sure outlet box is secured to building structure, if necessary use the wood screws provided to further secure outlet box to joist.
  • Make sure hanger bracket is secure to the outlet box, screws are tight.
  • If a Balancing kit is provided follow the instructions included with the balancing kit to help correct any excessive wobble.

SYMPTOM
Fans/Light Turn On and Off Unexpectedly

SOLUTION

  • This is caused by interference, please see "Frequency interference" for steps to change the frequency.

SYMPTOM
Frequency Interference

SOLUTION

  1. Turn the power off to your ceiling fan.
  2. Please use a small size tool to change the frequency settings on the control system.
  3. Return power to the unit.
    warning NOTE: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
  4. Within 60 seconds of turning the Fan's AC power ON. Press the transmitted s "Stop" button and hold the "Stop" button for 10 seconds.
  5. Once the receiver has detected the set frequency, the down light of your fan if applicable will blink twice, and the fan will begin to rotate for a short, and the fan will begin to rotate for a short period and then shut off. period and then shut Off. (there is no indication if your fan is not equipped with a light).
  6. The receiver has now learn the frequency which has been selection on the transmitter. After completing the steps above, you should be able to operate the ceiling fan and light. If the fan is not responding to the transmitter, please turn the power off to the receiver, and repeat the process.

SYMPTOM
Does not connect to Wi-Fi home network.

SOLUTION

If you are having trouble completing the Bond Home connection with your ceiling fan, adjustments to your router settings may be needed please go to the Help Center section in the app under the Settings for additional information and support.

Wi-Fi resetting
If you wish to clear the Wi-Fi setting from the app for a specified fan. You may do so by going into the app settings and removing the desired device.
This will clear any WiFi settings saved onto the device, and will allow you to reconnect it elsewhere with new Wi-Fi settings.

SPECIFICATIONS

These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the light(s).

Fan Size Speed Volts Amps Watts RPM N.W. G.W. C.F.
58" Low 120 0.09 2.8 52 5.7 8.7 2.81'
High 120 0.51 30.4 150 kgs kgs

For Customer Assistance Call: 1-800-307-3267

PERFORMANCE AND ENERGY INFORMATION

PERFORMANCE AND ENERGY INFORMATION

All estimates based on typical use, excluding lights
ftc.gov/energy

FAN SPEED AIRFLOW
(CFM)*
POWER USE
(Watts)
AIRFLOW EFFICIENCY
(CFM/Watt)
Low 1580 2.8 564
High 4744 30.4 156

Ceiling fan airflow is measured in cubic feet per minute (CFM).
Power use is measured in watts.

To maximize energy savings:

  • Choose a with high airflow efficiency (CFM/watt).
  • Use ENERGY STAR® rated bulbs in your fan.
  • Switch off your fan when you leave the room.

*Measure according to the DOE approved test method.

For any additional information about your Minka Aire® Ceiling fan, please write to:
1151 Bradford Court, Corona, CA 92882

Warranty Service Information

The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.

To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267,
or contact Minka-Aire® through www.minkagroup.net and select FAQ to answer any questions or if you require additional assistance submit the question form found there.

SAFETY RULES

  1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
  2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
  3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
  4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the floor and 18 inches from the tip of the blades to the wall.
  5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds) Do not use a plastic box.

  6. To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
  7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
  8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
  9. Do not insert anything into the fan blades while the fan is operating.
  10. Turn the fan Off and wait for the blades to stop completely before performing any maintenance or cleaning.

warning NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.

warning NOTE: READ AND SAVE ALL INSTRUCTIONS!


TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUNCTION WITH THE LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXES COMMONLY USED FOR FA N SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN CAN ONLY USE KH971P-SM17 SOLID-STATE SPEED CONTROL WITH RC1000 REMOTE CONTROL ONLY.
