Bobtot B89 Manual

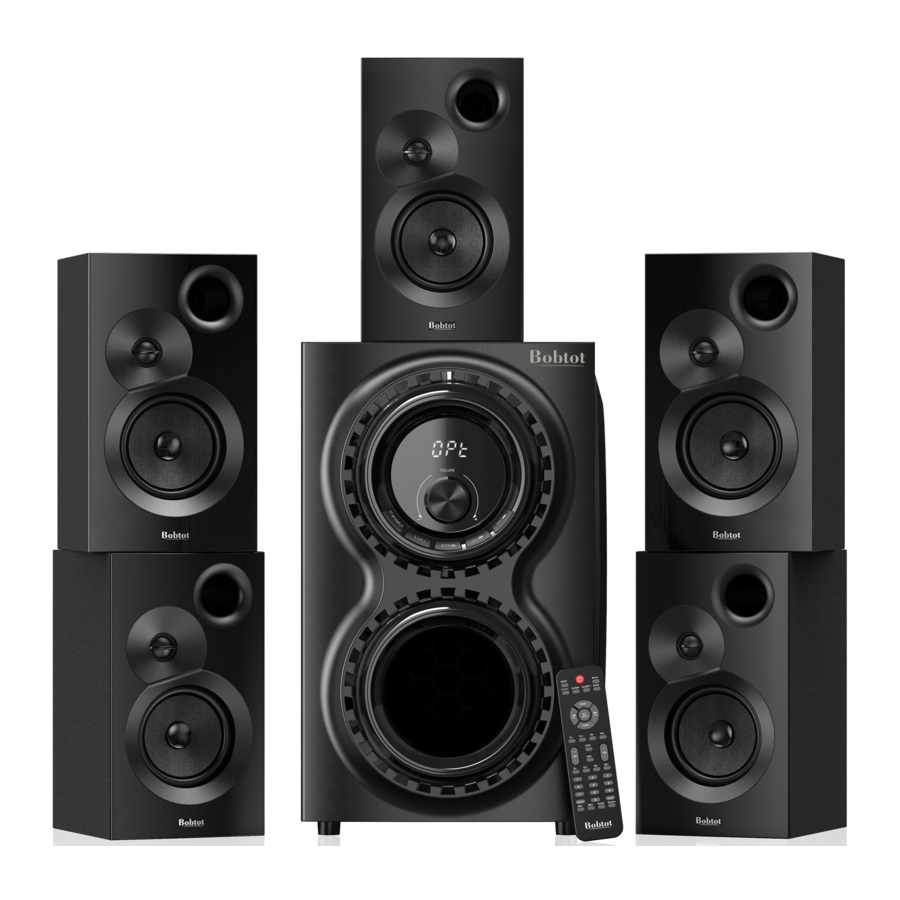

WHAT'S IN THE BOX

FRONT PANEL OF SUBWOOFER

	Digital Display
	VOLUME	Tum the knob to decrease or increase the volume
	ST.BY	Stand by function by pressing it 3 secs in AUX/USB/FM/BT/OPTICAL/COAXIAL/TV ARC mode;
	INPUT	Input function key, switch among AUX/USB/DVD/FM/BT/OPTICAL/COAXIAL/TV ARC mode
	5 1/2.1	5.1/2.1 function key
	AUTO/	USB Pause/Play function key When the FM state when the automatic search and save the radio station.
	CH-/	"Previous" function key Previous song when USB input; Previous channel when FM input;
	CH+/	"Next"function key Next song when USB input; Next channel when FM input;
	SD/MMC CARD	SD card socket (max file size 64 Gb)
	U DISK	USB socket (max file size 64Gb)
	MIC	MIC 1 & 2 socket

BACK PANEL OF SUBWOOFER

1. Power input
2. Power switch
3. TV ARC audio input
4. Optical audio input
5. Coaxial audio input
6. FM antenna
7. RCA to RCA or RCA to 3.5mm AUX audio input
8. 3PCS RCA DVD audio input (front L&R/center/subwoofer/rear L&R)
9. Center/Front L/R/Rear L/R audio output

REMOTE CONTROL FUNCTIONS

: Power/Standby
INPUT: Switch between input modes: USB/FM/ AUX/DVD/OPT/COA/TV ARC/BT
MUTE: Mute all output
5.1/2.1: Channel mode select
SLEEP-/+: Setting the sleep time
SAVE: Save stations to unit memory
TUNE+/-: Manually tune FM stations
: Play/Pause in USB/BT modes
AUTO: Automatic station search
CH-/ : Previous FM station/previous track(USB)
CH+/ : Next FM station/next track(USB)
FL+/-: Front left speaker volume control
FR+/-: Front right speaker volume control
SW+/-: Subwoofer volume control
CEN+/-: Center speaker volume control
VOL+/-: Master volume control
SL+/-: Rear satellite left speaker volume control
SR+/-: Rear satellite right speaker volume control
0-9: Number pad used to direct select tracks when in USB mode
REPEAT: Repeat one song/repeat all songs/shuffle
RESET: Reset volume level
MIC+/-(EQ+/-):when a pair of microphone are connected, these buttons will control the mic volume. In USB mode, they will allow you to navigate the 5 preset EQ curves. Please note: connecting mics will override the EQ+/- function.
ECHO+/-(DlSP+/-):when a pair of microphone are connected, these buttons will control the echo effect. If there are no mics connected, they will control the display brightness. Please note: connecting mics will override the DISP+/- function.

NOTE:

1. Turn on the unit, please press the "Power" button before selecting the input mode.
2. If the remote control does not work, please replace the batteries and try again.

BEST PLACEMENT FOR THE PRODUCT

SET UP CENTER & FRONT & REAR UNITS

SYSTEM CONNECTION DIAGRAM

Verify that your device can be used to input sound from audio/video for other external sound source devices, and ensure your device have an available jack to match the appropriate port on the subwoofer.

How to use the wireless BT

1. Make sure the subwoofer and 5 satellite speakers are connected correctly and are powered "ON" status.
2. Press the "ST.BY" button before selecting the mode.
3. Press the "INPUT" button to switch mode to "BT" status, which is showing in the LED display of the subwoofer.
4. Search BT device with name "Bobtot B89"

5. Connect the BT

Note: If your BT device is below 2.0 version, input password "0000" when connecting.

How to connect your device by TV ARC Cable

1. Plug the TV ARC cable into the ARC Input socket in back of the subwoofer, another port plug into the slot of your TV.

2. Make sure the subwoofer and 5 satellite speakers are connected correctly and are powered "ON" status.
3. Press the "ST.BY" button before selecting the mode.
4. Press the "INPUT" button to switch mode to "ARC" status, showing in the LED display of the subwoofer.
5. TV setting: Sound output – Select "TV ARC"
6. TV setting: Expert Setting – Digital output audio format – Select "PCM".

Note: B89 ARC output only supports LPCM 2.0 audio format.

How to connect your device by Optical Cable

1. Take off the transparent cover of Optical Cable before plugging in.
2. Plug the Optical cable into the Optical Input socket in back of the subwoofer, another port plug into the slot of your TV.

3. Make sure the subwoofer and 5 satellite speakers are connected correctly and are powered "ON" status.
4. Press the "ST.BY" button before selecting the mode.
5. Press the "INPUT" button to switch mode to "OPT" status, showing in the LED display of the subwoofer.
6. TV setting: Sound output – select "Optical"
7. TV setting: Expert Setting – Digital output audio format – Select "PCM"

How to connect your device by Coaxial Cable

1. Plug the Coaxial cable into the Coaxial Input socket in back of the subwoofer, another port plug into the slot of your device.

2. Make sure the subwoofer and 5 satellite speakers are connected correctly and are powered "ON" status.
3. Press the "ST.BY" button before selecting the mode.
4. Press the "INPUT" button to switch mode to "COA" status, showing in the LED display of the subwoofer.
5. TV setting: Sound output – Select "Coaxial"
6. TV setting: Expert Setting – Digital output audio format – Select "PCM"

How to connect your device by RCA Stereo Audio Cable

1. Plug the RCA Stereo Audio cable in back of the subwoofer. White to White Connector, Red to Red Connector, another (White/Red) port plug into the L&R Output slots of your device.

2. Make sure the subwoofer and 5 satellite speakers are connected correctly and are powered "ON" status.
3. Press the "ST.BY" button before selecting the mode.
4. Press the "INPUT" button to switch mode to "AU" status, showing in the LED display of the subwoofer.

How to connect your device by 3.5mm to RCA Audio Stereo Cable

1. Plug the RCA L/R Stereo Audio cable in back of the subwoofer, White to White Connector, Red to Red Connector, and 3.5mm AUX port plug into the Headphone Output slot of your device.

2. Make sure the subwoofer and 5 satellite speakers are connected correctly and are powered "ON" status.
3. Press the "ST.BY" button before selecting the mode.
4. Press the "INPUT" button to switch mode to "AUX "status, showing in the LED display of the subwoofer.

How to connect your device by 3RCA Audio Stereo Cable

1. Plug the 3RCA Stereo Audio cable in back of the subwoofer, White to White Connector, Red to Red Connector

2. Make sure the subwoofer and 5 satellite speakers are connected correctly and are powered "ON" status.
3. Press the "ST.BY" button before selecting the mode.
4. Press the "INPUT" button to switch mode to "DV" status, showing in the LED display of the subwoofer.

IMPORTANT SAFETY INSTRUCTIONS

TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE AMPLIFIER PLATE. NO USER SERVICEABLE PARTS INSIDE. WE RECOMMEND TAKING THE UNIT TO A QUALIFIED SERVICE TECHNICIAN FOR ANY REPAIRS.

Read the following safety instructions before operating your home theater system.

• Do not place these speakers on an unstable surface. The speaker may fall over, causing serious injury to a child or adult and serious damage to the unit.
• Do not use these speakers near water or expose them to rain or moisture.
• The speakers should be situated away from heat sources such as radiators, heat registers, stoves, or other devices that produce heat.
•
  Please use under specified voltage(120V/60Hz). Any other voltage than the specified voltage may cause fire or electric shock.
• To reduce the risk of electric shock or component damage, unplugged the power before moving your speakers or connecting other components to your device
• Clean only with a soft dry cloth. Unplug the main unit from the wall outlet before cleaning

Always use a power outlet that is properly grounded.
