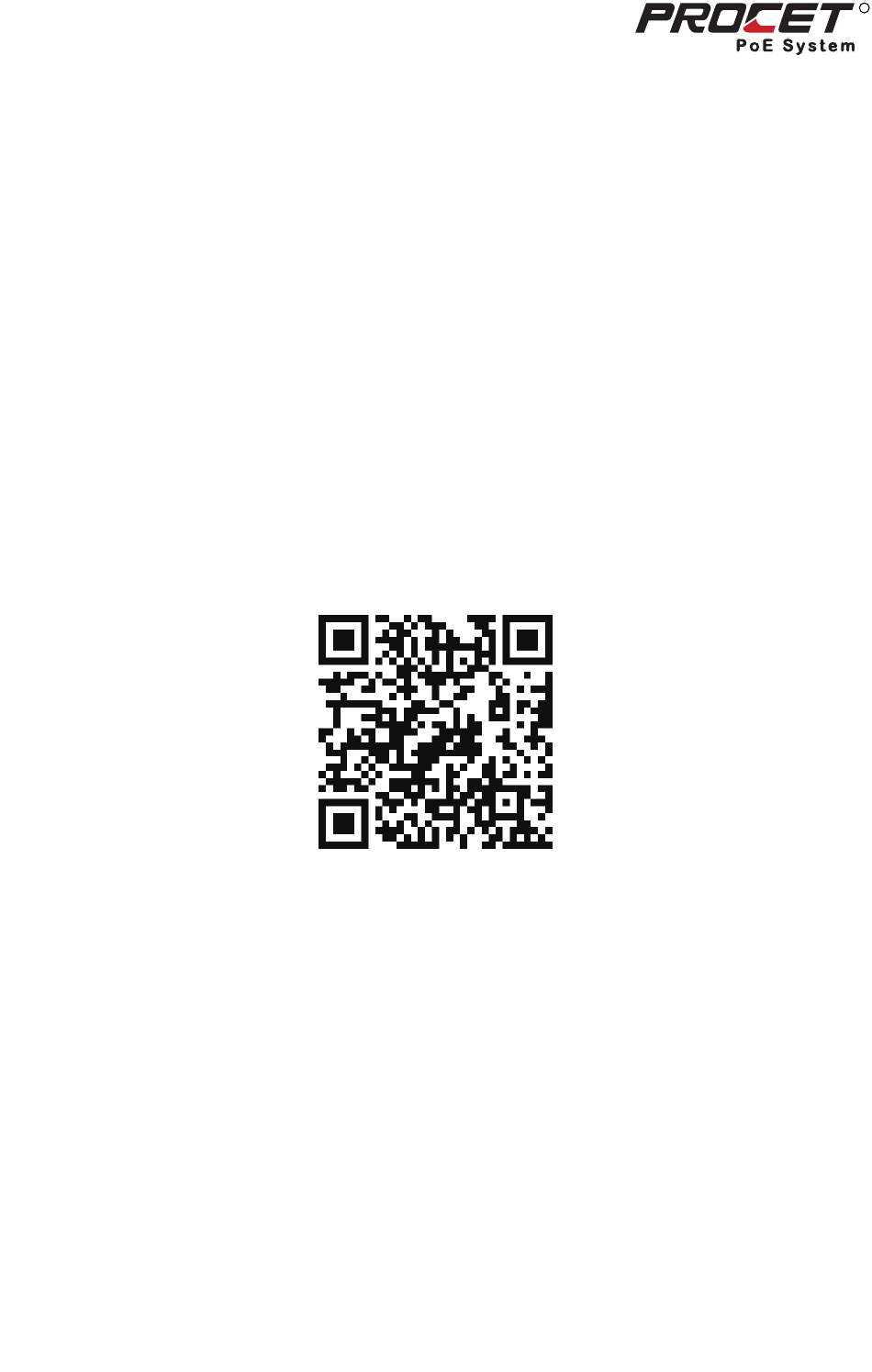

- Page 1 PT-PSE118GBR-OT_60W Series Quick Installation Guide www.procetpoe.com...
- Page 2 Copyright©2025 Creative Lianjie Network Technology Co.Ltd All rights reserved. This document belongs to PROCET company. It is not allowed to reproduce and modify without the original author's permission. It is PROCET's policy to improve its products as new technology, components, software, and firmware at any time.
- Page 3 Overview The installation Guide for PT-PSE118GBR-OT_60W Series and mainly introduces the hardware specification, installation methods, and precautions of the installation. There may be differences in the appearance and configuration from other models. All product images in this manual are for illustration purposes only and may differ from the actual product.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction 1.1 Introduction..............01 1.2 Appearance..............01 1.3 Specification..............03 2. Installation Preparation 2.1 Package contents............04 2.2 Inspection..............04 3. Installation 3.1 Installation on the holding rod......06 3.2 Wall mounting............. 07 3.3 Interface Connection..........08 3.4 Grounding Installation.......... -
Page 5: Introduction
1. Introduction 1.1 Introduction This unit requires grounding. Please use PoE-powered equipment that complies with 802.3af/at/bt standards to connect to this product. For 100Base-TX Ethernet, it is recommended to use Cat 5 or higher UTP/STP cables. For 1000Base-T Ethernet or 2.5GBase-T Ethernet, it is recommended to use Cat 5e or higher UTP/STP cables. - Page 6 Front View AC Power Input Port Embedded in the body 101±1mm LAN Input Port Embedded in the body PoE Output Port Embedded in the body Figure 1-2 Front View Schematic LED Indicator Chart (with all indicators). Items Status Descriptions Solid Green Light The equipment is powered PoE Power The equipment is powered off / not...
-
Page 7: Specification
1.3 Specification Items Descriptions Interface AC*1 PoE*1 LAN*1 Grounding*1 PoE Standard IEEE802.3af/at/bt Power Pins 4,5(+)/7,8(-) 3,6(+)/1,2(-) Data Rates 10/100/1000Mbps, 2.5/5/10G IEEE802.3i/IEEE802.3u/IEEE802.3ab Network Protocol AC Input 100-240Vac 1.5A(Max) 55Vdc 1.1A(Max) 60W @50℃ Output 55Vdc 0.82A 45W @55℃ 55Vdc 0.55A 30W @65℃ Protected line: 1,2,3,4,5,6,7,8 PoE Surge Protection Common mode surge protection(10/700us): 6KV... -
Page 8: Installation Preparation
2. Installation Preparation 2.1 Package contents Open the box of the PT-PSE118GBR-OT_60W Series and carefully unpack it, the box should contain the following items: Ground PT-PSE118GBR-OT_60W Series Operating Manual lug Wire&3.0 Screw 2.2 Inspection Before installing the device, please feed it with an AC power source to check proper function first. - Page 9 Switch AC Input AC Power PT-PSE118GBR-OT ≤100m PoE Output PD Device Figure 2-1 Connection Schematic Notice： 1. Connect the AC power cable with L(Live), N(neutral) and G(Ground) wires to the AC terminal block of the unit. 2. For LAN port, connect a CAT5e/6 cable from your Data source, such as a router/switch into the unit's LAN port, for Ethernet uplink.
-
Page 10: Installation
3. Installation This product is suitable for safe use in the way of holding pole and wall mounting. 3.1 Installation on the holding rod The equipment is mainly fixed to the vertical pole by means of a holding rod assembly, the diameter of which should be between 70mm and 110mm. -
Page 11: Wall Mounting
(2) Use the nut and screw to lock the hoop ring in place, as shown in Figure 3-2: Figure 3-2 Schematic diagram of hoop ring 3.2 Wall mounting Expansion bolts are required if the unit needs to be mounted on a wall. (1) Attach the screw hole locator label to the wall. -
Page 12: Interface Connection
Depth ≥ 60mm Figure 3-3 Expansion bolt depth schematic (3) Place the protruding screws through the product fixing holes and tighten with nuts. As shown in Figure 3-4. Wall Figure Fixed Installation Schematic 3.3 Interface Connection RJ45 port (shown in Figure 3-5) （1）Remove the metal seals from the product. - Page 13 （2）Slide the metal seal components onto the Ethernet cable in the following order (the waterproof rubber stopper is not cut diagonally by default), and then crimp the RJ45 connector. Our waterproof rubber stoppers are available with inner diameters of 8mm(for 5-8mm cable) and 12mm(for 8-12mm cable). The 12mm option is provided by default unless otherwise specified when placing the order.
-
Page 14: Grounding Installation
AC Port Connection Diagram 3.4 Grounding Installation The grounding solutions summarized from numerous installation processes Series of the PROCET PoE switch PT-PSE118GBR-OT_60W product are as follows, and are intended solely for reference during the grounding installation of this product: If this product is installed in a computer room, it can be connected to the dedicated grounding busbar in the room. - Page 15 In environments without dedicated grounding equipment, for the safety of personnel and equipment, we can construct a simple grounding system (as shown in Figure 3-8): （1） Prepare a 6mm² grounding wire or braided flexible copper wire. （2） Prepare a copper tube, angle iron, or other metal tube and bury it below one meter underground to serve as the earth electrode.
-
Page 16: Accessory Information
4. Accessory Information 4.1 Metal Seals This product uses the T586B standard for network cable, does not support the use of mechanism network cable, if you need to use the mechanism network cable, you can order extended metal seals to use. As shown in Figure 4-1 and 4-2: T586B Standard Mechanized network cable... -
Page 17: Waterproof Plug
Optional Information Name Norm Note Eco-friendly metal M22;waterproof rubber plug M8 conventional waterproof connector Eco-friendly metal M22 (extended body, 40MM); customizable waterproof connector waterproof rubber plug M8 4.2 Waterproof Plug We have two kinds of waterproof plugs, the unpeeled one is suitable for on-site threading before manually pressing the RJ45 head, the peeled one is more convenient to use (the diameter of the inner hole of the waterproof rubber plug is 8mm or 12mm, the default is matched with 12mm, otherwise,... - Page 18 Qualification Card PASS Creative Lianjie Network Technology Co.Ltd www.procetpoe.com...
