Wiring (continued)

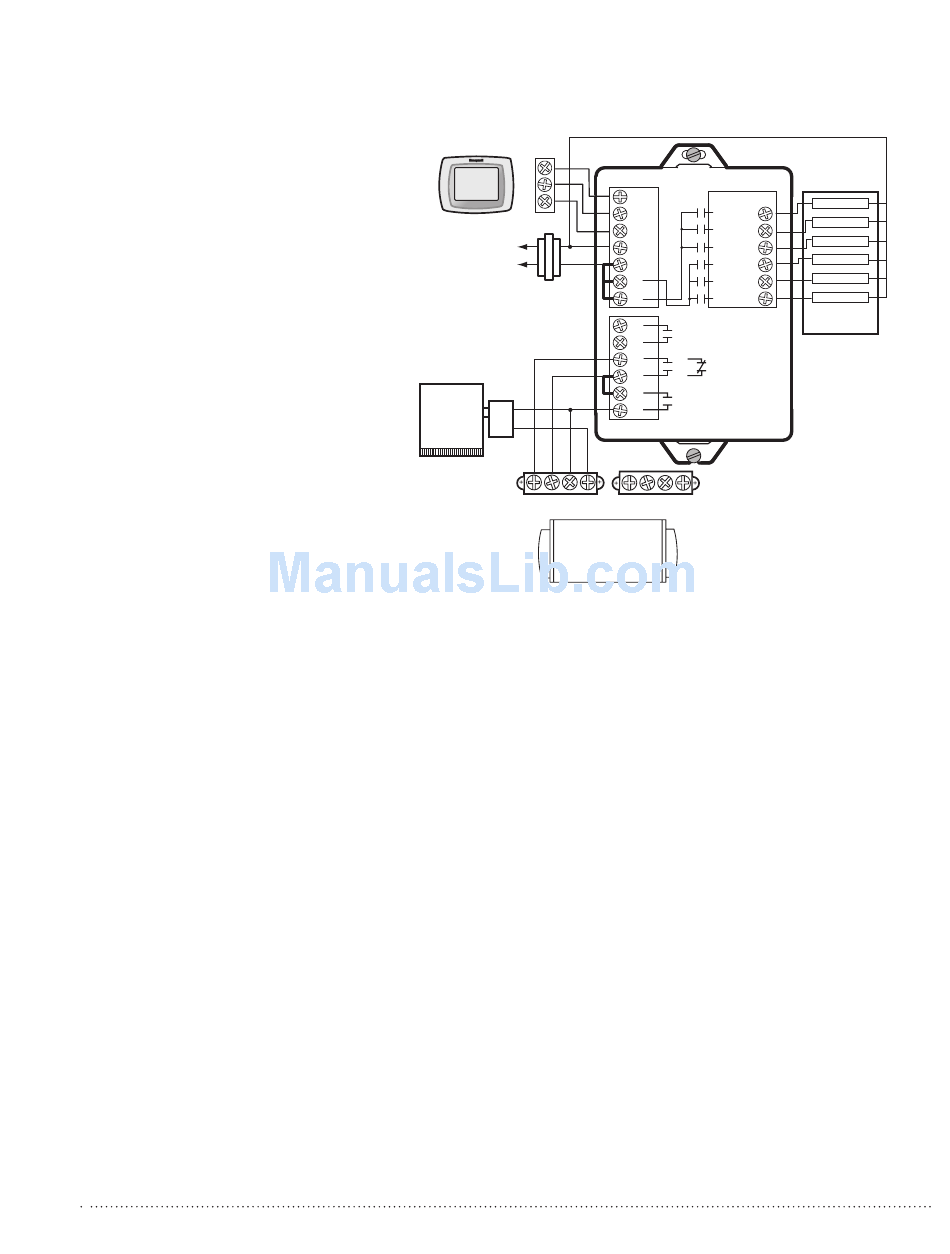

Follow this diagram if using TrueDRY
DR65 with a VisionPro IAQ.

Checkout

Apply power to TrueDRY DR65. Turn the humidity control to a low RH% level to initiate a dehumidification
call. Confirm that the TrueDRY DR65 compressor and fan turn on. The furnace blower will also turn on to
circulate air. This will take up to two minutes. Be sure to turn the control to the desired RH% or to Off when
checkout is complete. Turning the humidity control to Off will turn TrueDRY DR65 off.
10
D-1
R-2
C-3
VISIONPRO IAQ
EARD-6
DHUM R FAN C
TrueDRY
TrueDry DR65 Dehumidification System
EQUIPMENT INTERFACE MODULE (EIM)
FURNACE BOARD
1
CONV. HP
2
W1
O/B
3
W2
AUX
C
W3
AUX2
R
Y
Y
RC
Y2
Y2
RH
G
G
H1
U
M2
D1
OR
H
M2
V1
N
T2
Gt Rf Gf
FAN
C
HEAT 1 RELAY
HEAT 2 RELAY
HEAT 3 RELAY
COOL 1 RELAY
COOL 2 RELAY
G
FAN RELAY
M29769
69-2089EFS—11
