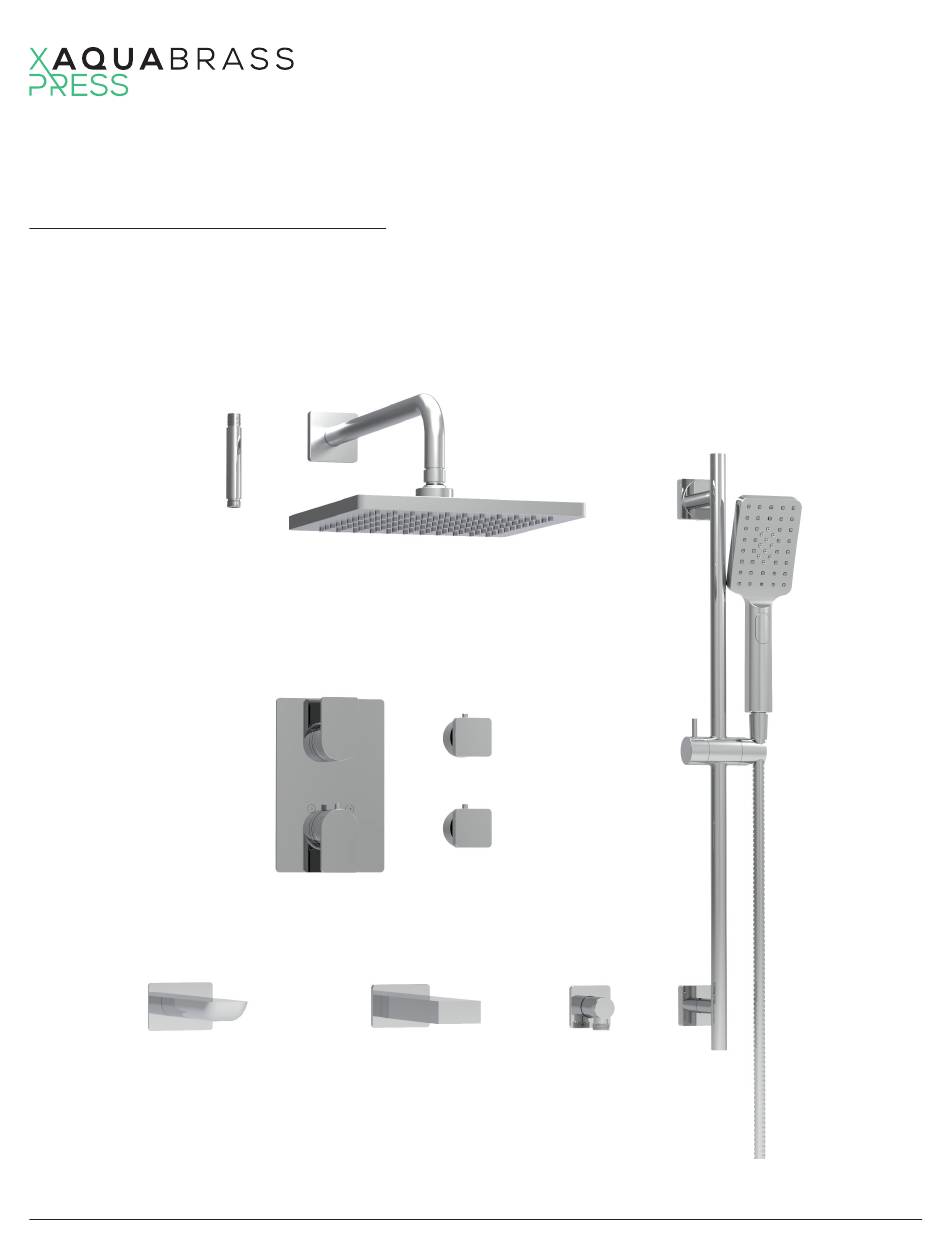

- Page 1 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré Installation Guide Guide d’installation Optional / Optionnel Optional / Optionnel Optional / Optionnel (#XPSK02) (#XPSK03) (#XPSK02) aquabrassxpress.com Last revision: 08/23/2024...
- Page 2 # XPSK01 - # XPSK02 # XPSK03 Square shower kit General Dimensions / Dimensions générales Kit de douche carré 5 1/8” [130mm] 5 1/8” [130mm] 1 7/16” [36mm] 1 3/4” [45mm] 1/8” 1/8” [3mm] [3mm] 1 3/4” [45mm] 7 7/8”...
- Page 3 # XPSK01 - # XPSK02 # XPSK03 Square shower kit General Dimensions / Dimensions générales Kit de douche carré 10” [250mm] 2 1/4” [57mm 10” [250mm 2” [50mm] 2” [50mm] 1/4” [6mm] 2” [50mm] 1-1/2” [38mm] aquabrassxpress.com Last revision: 08/23/2024...
- Page 4 # XPSK01 - # XPSK02 # XPSK03 Square shower kit General Dimensions / Dimensions générales Kit de douche carré 2” 7/16” [50mm] [11mm] 3 3/16” 2 3/16” [55mm] [80mm] 3/4” [19mm] 27 9/16” [700mm] 9 15/16” [252mm] 5’ 1/2” connection 1/2”...
- Page 5 # XPSK01 - # XPSK02 # XPSK03 Square shower kit General Dimensions / Dimensions générales Kit de douche carré 3 1/4” [82mm] 7 5/8” [194mm] 2” [51mm] 1” [25mm] 2 3/16 [56mm] 1/8” [3mm] 5 7/8” [148mm] 1 3/16” [30mm] [35.00]...
- Page 6 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré #XPS795 Trim set / Ensemble décoratif aquabrassxpress.com Last revision: 08/23/2024...
- Page 7 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré Service parts / Schéma des pièces Item Code English Français Item Code English Français Adapter Adaptateur Square trim plate Plaque carrée ABSPXP603 ABSTXP851 ABWAXPS01 Foam gasket...
- Page 8 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré Installation Close / Fermer Open / Ouvrir aquabrassxpress.com Last revision: 08/23/2024...
- Page 9 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré Water temperature adjustment / Réglage de la température de l’eau 100°F 38 °C Temperature limit stopper Limitateur de température The highest temperature setting has been factory preset at 120˚F (49˚C). However, the preset temperature can be adjusted by following these steps: Remove the set screw (1) and the volume control handle (2).
-
Page 10: Maintenance / Entretien
# XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré Maintenance / Entretien To service the cartridges: Shut-off the main water supply, then remove all the components from (7) to (21). Afterwards, shut-off the 2 check valves (1) by turning them clockwise with a screwdriver. Unscrew the screw (3), the large nuts (5 &... - Page 11 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré #XPS62 Round shower arm / Bras de douche rond ½" NPT male connection Raccordement ½" mâle NPT aquabrassxpress.com Last revision: 08/23/2024...
- Page 12 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré #XPS64 4” round ceiling drop / Bras de plafond rond de 4” NPT ½ " Max. 3" NPT ½ " aquabrassxpress.com Last revision: 08/23/2024...
- Page 13 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré #XP184 10” square rainhead / Tête de pluie carrée de 10” Shower arm / Bras de douche ceiling drop / Bras de plafond aquabrassxpress.com Last revision: 08/23/2024...
- Page 14 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré #XPS86 Round shower rail / Rail de douche rond Drill / Trou 3/4” Drill / Trou Drill / Trou 23 3/4” [603mm] Drill / Trou aquabrassxpress.com...
- Page 15 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré #XP511 Square waterway / Sortie murale carrée FINISHED WALL MUR FINI 1/2” NPT EXTENSION FITTING (NOT INCLUDED) EXTENSION 1/2” NPT (NON INCLUSE) 1/2” MAX. Min. 1”...
- Page 16 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré #56N32 Tub spout / Bec de bain ø 1 3/8” Drilled hole 1/2” NPT female Perçage Raccord 1/2” NPT femelle Spout tting Raccord du bec Min. - 1/8” [-3 mm] Max.
- Page 17 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré #XPS32 Tub spout / Bec de bain 1/2” copper pipe Tuyau de cuivre 1/2” aquabrassxpress.com Last revision: 08/23/2024...
- Page 18 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré Configuration examples / Exemples de configurations Configuration 2 Configuration 1 4” CEILING ARM & RAIL OVERSIZED SHOWER WITH 16” SHOWER ARM & RAIL BRAS DE PLAFOND DE 4” ET RAIL DOUCHE SURDIMENTIONNÉE AVEC BRAS DE DOUCHE DE 16”...
- Page 19 # XPSK01 - # XPSK02 # XPSK03 Square shower kit Kit de douche carré Cleaning and Maintenance Entretien et Nettoyage aquabrassxpress.com Last revision: 08/23/2024...
-
Page 20: Warranty
The warranty applies only when the product is purchased from an authorized Aquabrass XPress dealer. It is not transferable and is limited to products sold and installed in Canada and the United States. -
Page 21: Garantie
Aux fins de la présente garantie, le terme « application résidentielle multifamiliale » désigne un produit Aquabrass XPress obtenu auprès d’un vendeur Aquabrass XPress autorisé; par un acheteur qui possède mais ne vit pas dans le logement résidentiel où le produit est initialement installé... - Page 22 # XPSK01 - # XPSK02 # XPSK03 Square shower kit About / Informations complémentaires Kit de douche carré CARE & MAINTENANCE Do not allow water residues to come into prolonged contact with the surface finish. After each use, gently dry the product surface with a clean soft cloth to prevent water-spotting and mineral build-up.
