E.4.2

Disposal of packing

The packing must be disposed of in compliance with the
current regulations in the country where the appliance is used.
All the packing materials are environmentally friendly.
They can be safely kept, recycled, or burned in an appropriate
waste incineration plant. Recyclable plastic parts are marked
as follows:
Polyethylene
• Outer wrapping
• Instructions bag
Polypropylene
• Straps
Polystyrene foam
• Corner protectors
The parts in wood and cardboard can be disposed of,
respecting the current regulations in the country where the
appliance is used.
E.4.3

Special precautions for positioning

For the overall space required and connection dimensions,
refer to the installation diagrams;
NOTE!
The appliance is not suitable for built-in installation.
When positioning the appliance keep in mind the following
minimum distances:
Minimum distances for positioning
normal working right / left / rear distance 50 mm
work close to
left side distance 100 mm to 500 mm
heat source
service left side distance 500 mm
conditions
• Position the appliance on a flat surface.
If necessary, adjust the height of the worktop by means of
the adjustable feet (if available).
CAUTION
The appliance must be level.
26
d
E.5

Water connection

E.5.1

General requirements

NOTE!
Water connection must be carried out in compli-
ance with the regulations and provisions in force
with the country.
IMPORTANT
When connecting the appliance with the flexible
hoses to the water system, use always new ones.
Refer to the installation diagrams at the beginning of this
handbook.
1. Fit a mechanical filter and shut-off tap between water inlet
pipe "C" and the mains water supply.
2. Before connecting the filter, run off a certain amount of
water to remove any ferrous particles from the piping.
The water inlet must be connected to a drinking water
supply with pressure of 150 – 250 kPa (1,5 – 2,5 bar / 14 –
36psi).

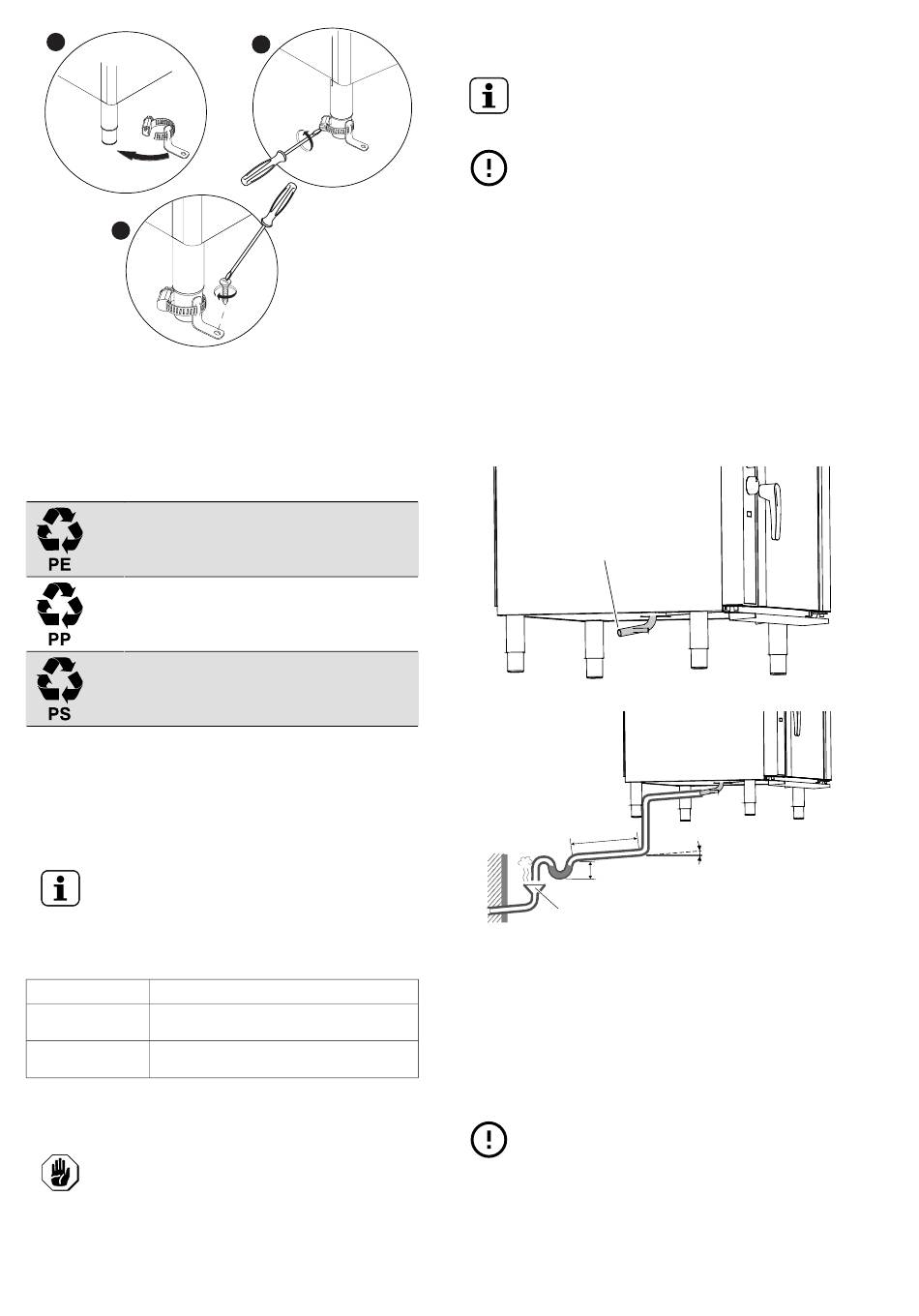

E.5.2

Water draining system

• Connect drain fitting "C" to a drain pipe of the same
diameter which is between 0.5 and 3 metres in length and
is resistant to temperatures of at least 100℃.
C
0,08 mt
O
• The drain pipe must be siphoned (height 80 mm) to an open
drain "O" (air-break to drain ) conforms to EN61770,
whether for installation with wall discharge or floor grate in
order to prevent any back-flow from the sewage system
from reaching the piping inside the oven or oven chamber.
• Check the hoses and elbows on metal pipes for kinks or
pinching along the entire drain line.
• Make sure the drain line has a minimum gradient of 5° to
prevent water from collecting inside the system.
IMPORTANT
The drain system must be installed so that any
vapours from the open drain ("Air-Break") do not
enter the aeration vents under the appliance.
E.5.3

Water supply characteristics

The appliance must be supplied with drinking water having
specific characteristics given in this section.
min 5
