Product overview
1.1
JB-FSD-A82E Fire Indicating Panel (after this referred to as Fire Indicating
Panel) is a microprocessor-controlled Fire Indicating Panel developed and
produced by our company. It is connected to the A-series fire alarm
controller produced by our company through non-polar two bus, and
displays the fire alarm and feedback information transmitted by the
controller. A Fire Indicating Panel can be installed on each floor. When a fire
alarm is triggered, the Fire Indicating Panel will emit an alarm sound, and
display the alarm time and position on the screen.
2
Product features
2.1
Full electronic coding, can be rewritten on site by encoder.
2.2
Through the fire alarm bus and fire alarm controller connected, wiring only two buses, do not need to distinguish
polarity.
2.3
A maximum of 999 alarms are displayed.
2.4
Chinese display alarm location information, easy to locate the alarm location.
2.5
Easy to operate.
2.6
Beautiful appearance.
3
Technical parameters
3.1
Items
Executive standard
Working mode
Working current
Display capacity
Weight
Overall dimension
Operating environment
Encoding mode
4

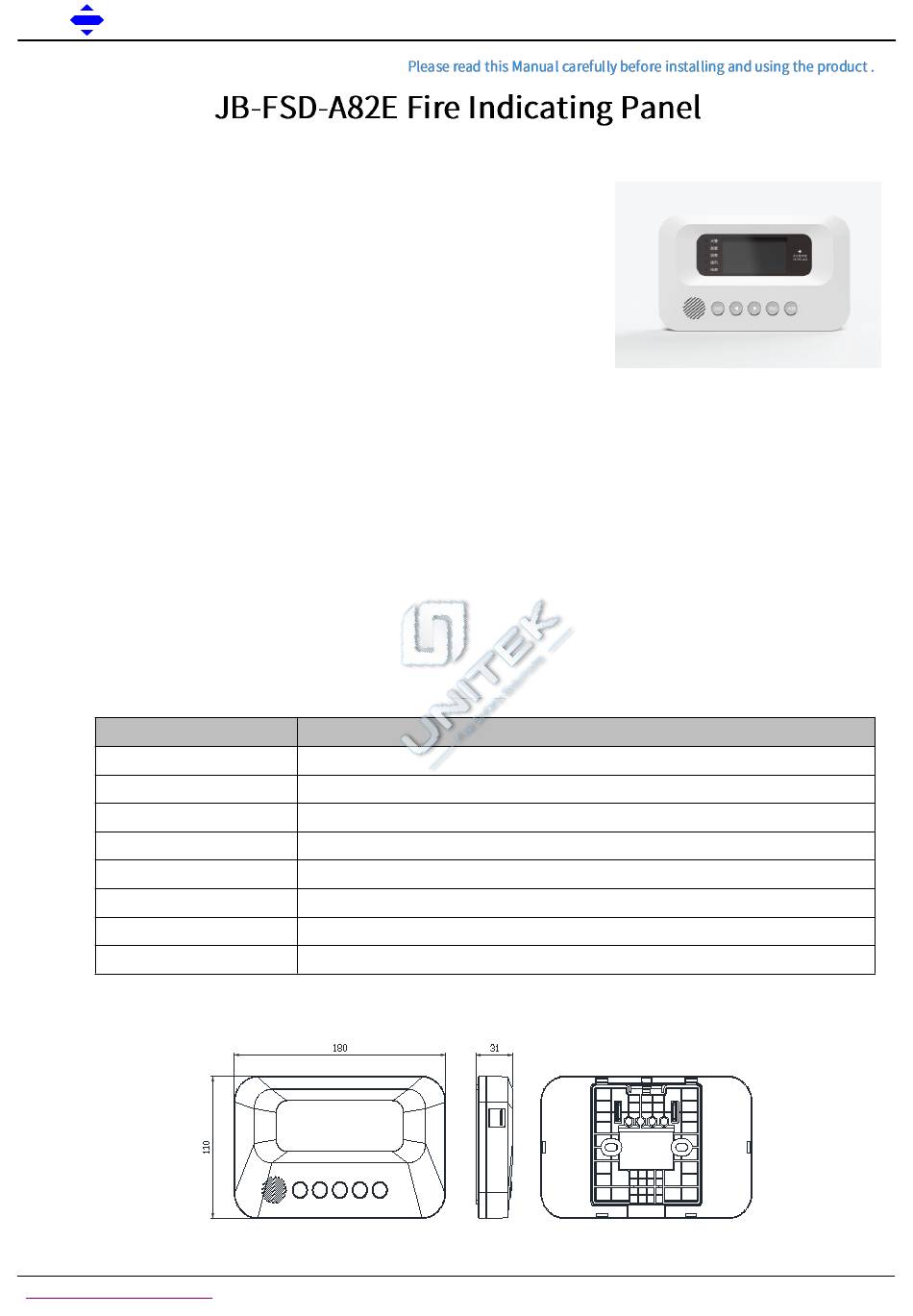

Product appearance and size (see Fig.1)
4.1
www.sanjiang-security.com
Product Manual
GB 17429-2011 "Fire Indicating Panel"
Non-polar two-wire system
Monitor < 6.5mA, alarm < 10mA (brightness level 1)
A single Fire Indicating Panel can display up to 999 alarm messages
About 230 g
180mm×110mm×31mm (with base)
Indoor, temperature: 0℃ ~ 40℃, relative humidity: ≤95% (40℃, no condensation)
Through the encoder can be field coding, address coding 1 ~ 324 optional
Fig.1（Unit: mm）
Page 1 of 5
Parameters
Version: V1.0
Template (Version):T-006(V01.05)
