3onedata IES7110-2GS-8F Quick Installation Manual

IES7110-2GS-8F
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. DIN-Rail mounting attachment
3. Power line
4. Warranty card
5. Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This product is a managed Gigabit DIN-Rail industrial
Ethernet switch. The model: IES7110-2GS-8F (2 Gigabit SFP
+ 8 100M fiber ports).

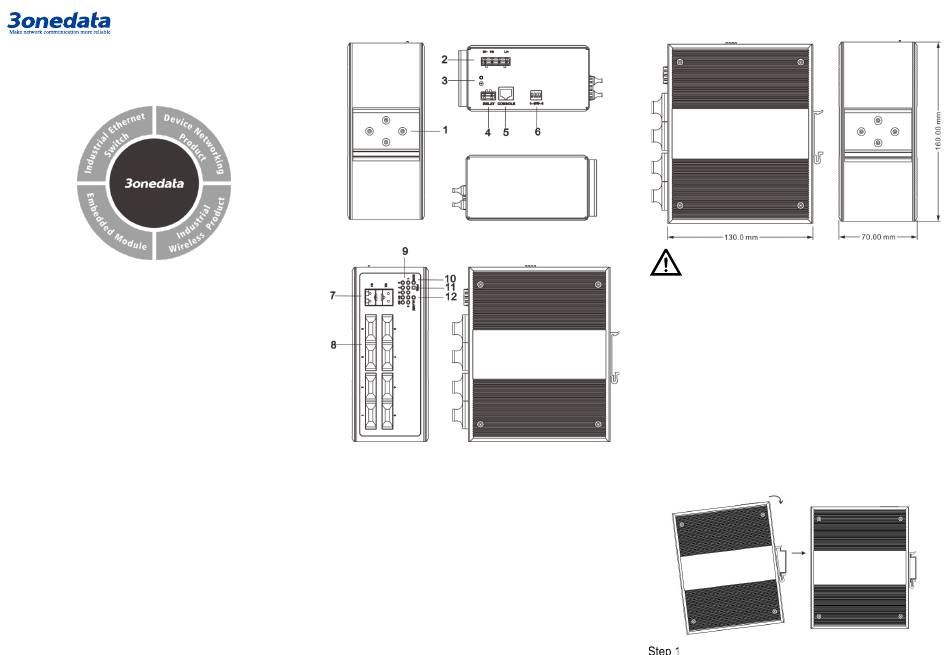

【Panel Design】
Top view, bottom view and rear view

Front View

Nanshan District,
1. DIN-Rail mounting kit
2. Terminal blocks for power input
3. Grounding screw
4. Relay alarm output terminal block
5. Console port
6. DIP switch
7. 1000Base-SFP Gigabit Ethernet SFP slot
8. 100Base-FX 100M Ethernet fiber port
9. Ethernet port link indicator
10. Device running status indicator RUN
11. Power input status indicator PWR
12. Relay alarm status indicator ALARM
【Mounting Dimension】
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:
Check if the DIN-Rail mounting kit is installed firmly.
