NewLine VEGA PRO TT-5524ZPRO User Manual

Interactive flat panel display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V 1 . 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGA PRO TT-5524ZPRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NewLine VEGA PRO TT-5524ZPRO

Summary of Contents for NewLine VEGA PRO TT-5524ZPRO

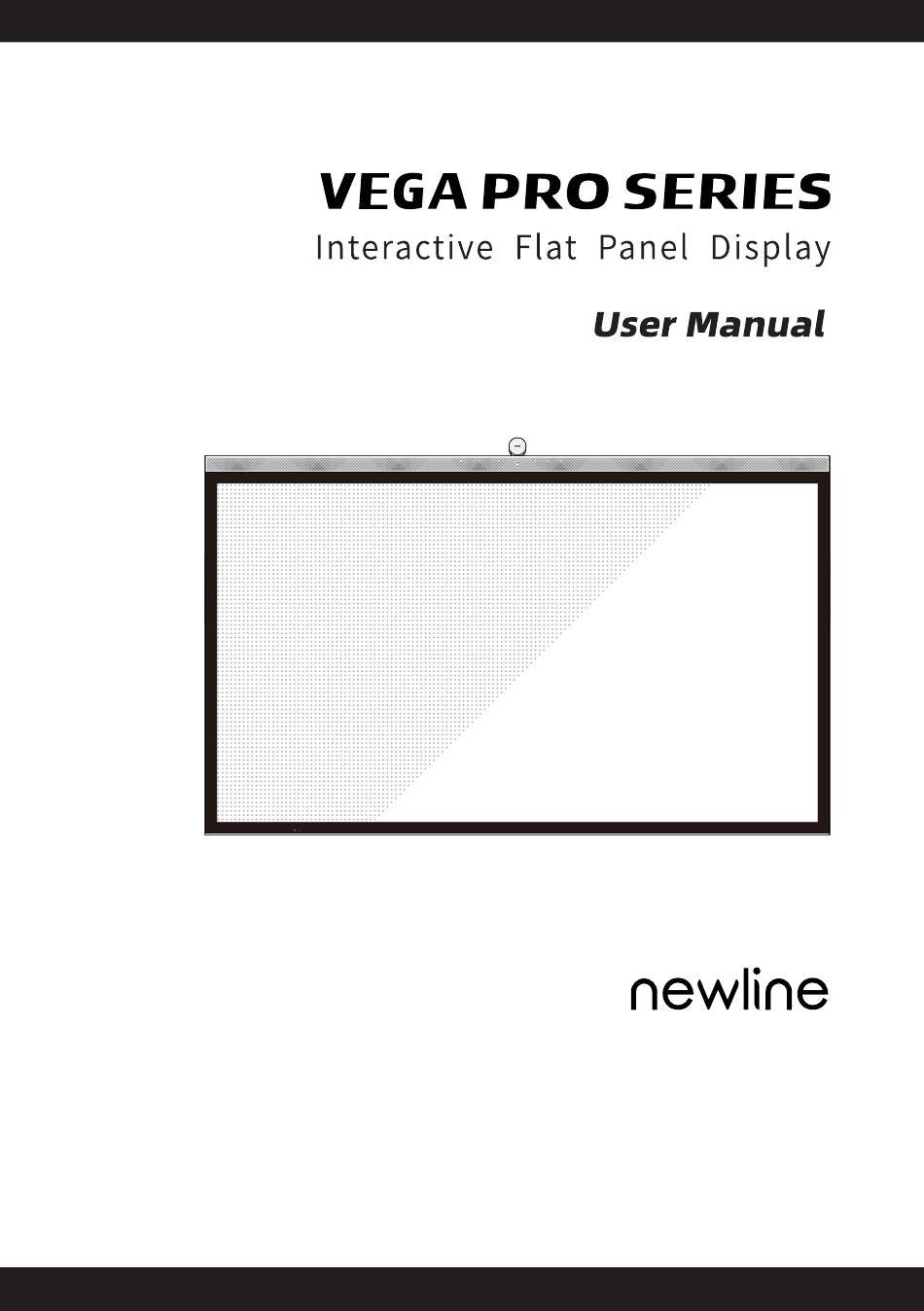

  • Page 1 V 1 . 0...

  • Page 2: Table Of Contents

    3.1 Power On 3.2 Power Off 3.3 Calibration 4.Operating 4.1 Profile Logo 4.2 Home 4.3 Whiteboard 4.3.1 Whiteboard Functions 4.3.2 Whiteboard Setting 4.3.3 Page Operations 4.3.4 Annotation 4.4 Application 4.4.1 Google App Store 4.4.2 Newline Display Management+ 4.4.3 Newline Cast+...
  • Page 3 4.4.4 Files 4.4.5 Visualizer 4.4.6 Vote 4.5 Extended Functions 4.5.1 Capture 4.5.2 Sources 4.5.3 Quick Setting Menu 4.5.4 Automatically Power Off 4.6 Settings .6.1 Network & Internet 4.6.2 Connected devices 4.6.3 Apps 4.6.4 Notifications 4.6.5 Storage 4.6.6 Sound and vibration 4.6.7 Display 4.6.8 Wallpaper &...
  • Page 4 Welcome to the world of Newline. Thank you for choosing the VEGA Pro series Interactive Flat panel display. Please use this document to get the most out of your screen. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Energy Star Compliance

    Energy Star Compliance Signage Displays with Plug-in Module As an ENERGY STAR Partner, Newline Interactive Inc., has followed the EPA’s enhanced Product qualification and certification process to ensure that the products marked with the ENERGY STAR logo are ENERGY STAR qualified per the applicable ENERGY STAR guidelines for energy efficiency.

  • Page 6: About This Document

    About This Document This document describes multiple functions, instructions, and notes about the product. Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows: Provides additional information to supplement operation in the main NOTE text.

  • Page 7: Safety Instruction

    Safety Instruction For your safety, please read the following instruction before you use the product. Serious injury or property damage may be caused by improper operations. Do not try to repair the product on your own. WARNING Disconnect the product from the power supply immediately if major failures occur.
  • Page 8 WARNING Do not put items on the top of the product. Do not put items, such as a container for liquid (a vase, flowerpot, cosmetics ● or liquid medicine) on the top of the product. If any water or liquid is spilled on the product, the product may short circuit ●...
  • Page 9 CAUTION Do not cover or block up any vents on the product. Any overheated components may cause fire, damage the product, and ● shorten the service life. Do not lay the product down in a way where the venting surface will be covered. ●...
  • Page 10 CAUTION Additional advice: Use the product in an environment with comfortable lighting. It is harmful to your ● eyes to watch in a too bright or too dark environment. Relax your eyes watching for a period of time. ● Keep sufficient distance from the product to protect your eyes and prevent ●...

  • Page 11: Overview

    The newline's 4K Ultra High-Definition LED screen also provides a fluid writing experience. Annotate over anything on the screen, whether in the embedded whiteboard or while using any other device.
  • Page 12 ● Rear View 55" 65" /75'' /86''...

  • Page 13: Ports

    • While HDMI and Display Port offer support for cables of varying lengths, the maximum cable length that Newline recommends for optimal performance is 3 meters (10 feet) for HDMI and 1.8 meters (around 6 feet) for Display Port. Using cable longer than recommended length may...
  • Page 14 Touch Touch 1/2/3 S/PDIF Out Type C/w PD Type-C...
  • Page 15 LAN In WARNING The rear power output port supplies 180W (maximum) power. Please contact Newline to purchase the power AC adapter for powering external devices. Please do not connect any products which require power than listed. Doing so may cause injury or damage to the panel.

  • Page 16: Rear Buttons

    1.4 Rear Buttons Buttons Operations Functions Power on ● Short press Power off/Sleep mode ● Short press Back to the previous/Exit the application Enable or disable the touch function. Notes: When the touch function is disabled, the Long press for 5 Android system, external sources and multi-user seconds channels will be in no-touch mode.

  • Page 17: Remote Control

    1.5 Remote Control CAUTION Carefully read the following instructions before using the remote control to avoid possible faults: Do not drop or damage the remote control. ● Do not spill water or other liquids on the remote control. ● Do not place the remote control on a wet object. ●...

  • Page 18: Installation Guide

    Installation Guide 2.1 Safety Precautions ● Installation Environment Do Not Install Tilted ● Installation Direction -13-...

  • Page 19: Installation Precautions

    2.2 Installation Precautions ● Weight Loading Weight of the product: 55INCH: 61.7lb/ 28kg; 65INCH: 78.3lb/ 35.5kg; 75INCH: 103.6lb/ 47kg; 86INCH: 130lb/ 59kg. When using a mobile stand, ensure that the weight of the product is less than the ● loading capacity of the mobile stand. When using the wall-mount bracket, ensure that the wall can support the weight of ●...

  • Page 20: Installation

    ● Ventilation Ensure adequate ventilation and/or an air conditioned environment. We recommend keeping certain distances from the side of the product to the wall or panels. Ventilation requirements are shown in following figure: 2.3 Installation The dimensions of the four bracket mounting holes on the back panel are VESA MIS-F compliant: 86INCH or 75INCH: 800 x 400 mm/31.50 x 15.75 in;...
  • Page 21 55" 65" 75"/86" -16-...

  • Page 22: Installing The Ops (Optional)

    2.4 Installing the OPS (Optional) CAUTION The OPS does not support hot plugging. Therefore, you must insert or remove the OPS when the display is powered off. Otherwise, the display or OPS may be damaged. You will need to purchase the OPS separately. Perform the following steps to install the OPS.

  • Page 23: Installing The Sdm-S (Not Included)

    Step 2: Insert the Wi-Fi Module into the port on the rear of the panel until firmly seated, using the 2 screws to secure it. Slideway The silver backplane must be stuck to the slideway Insert WiFi module with black fins outward 2.6 Installing the SDM-S (Not included) CAUTION The SDM-S does not support hot plugging.

  • Page 24: Installing The Camera

    screws Step 2: Insert the SDM-S into the port on the rear of the panel until firmly seated, using the 2 screws to secure it. The black backplane must be stuck to the slideway. Insert the SDM-S with black fins outward Note Please install SDM-S first before you hang panel on the wall.

  • Page 25: Newline Assistant

    2.8 Newline Assistant The Newline Assistant agent is a tool used as a bridge between the embedded operating system and the OPS. It helps add Windows software shortcut to the Home Page, as well as to protect USB data when switching between sources.

  • Page 26: Getting Started

    Getting Started 3.1 Power On Step 1:Ensure the power cable is fully seated into the panel and wall outlet before powering on the panel. Please confirm your wall outlet supports a power range of 100V to 240V with frequency at 50 Hz/60 Hz ± 5% and is fully grounded. Note The power outlet should be installed near the equipment and should be easily accessible.

  • Page 27: Calibration

    Step 3: If you want to completely turn off the panel, turn off the rocker switch behind the panel (next to the power socket) and unplug the power cord. Notes • If an OPS is installed, the OPS and the screen will simultaneously powered off when the power is shutoff.
  • Page 28 Step 4：Select“ ”in the Tablet PC Settings window. Step 5：Select Touch input from the option and start calibration. Step 6：Use your finger or a pencil to click and hold the center of the flickering cross . Do not release until moves to the next positioning point.
  • Page 29 Step 7：After the calibration is complete, the Digitizer Calibration Tool dialog box will be displayed. Click Yes to save calibration data. Tips: • To ensure writing accuracy, use the pencil or stylus included with the product for proper positioning. • Positioning errors may cause failure of touch functions of the display. In that case, please perform calibration again.

  • Page 30: Operating

    Operating 4.1 Profile Logon When you set the screen lock in Settings>Security>Screen Lock, you need to verify the lock screen code after each boot. Method Operation Swipe Swipe the screen to unlock Pattern Draw an unlock pattern, the pattern need connect at least 4 dots. Enter the pin code, the pin must be at least 4 digits.
  • Page 31 Gestures ● Gesture Functions Slide Up Slide up to view all the applications. Slide Down Slide down to expand the quick setting menu. Slide Right Slide right to enter the google login interface. Home button ● Gesture Functions Return to the previous menu or exit an app. Back to the Home page.
  • Page 32 Icons Functions Tap to enter the quick access bar. Tap to enter the Dashboard. App switcher allows the user to manage currently running applications. Swipe left or right to view currently running applications, swipe up or down to close the application or tap “clear all” to close all the applications.
  • Page 33 Dashboard: Menu Functions 1 Option includes standard, meeting, classroom, custom mode, standard mode is default; Sound 2 After selecting customization, the interface displays bass, treble and balance, and the default values are 0, 0 and 50. 1 Includes standard, bright, soft, custom four options, standard mode is default;...
  • Page 34 Standard > Minimized Standard > Favorite Delete icons Long press the icons to enter the icon deleting status, tap the × icon on the upper left corner to delete icons. Signal source -29-...

  • Page 35: Whiteboard

    4.3 Whiteboard The whiteboard function is designed to present conference writing to attendees in a quick and easy manner. The whiteboard has the following functions: Discussion and screen annotation ● On the whiteboard page, you can select pen type, width, and color to write or annotate on the screen.
  • Page 36 21 22 23 Icon Name Icon Function Mode Switch Tap to switch to annotation mode. Tap to enter options interface. Users can save and export the whiteboard page; add image/text/table/sticky note/ document(PDF)/Concept map/search image(google)/search Options web(google)/YouTube video to the whiteboard page; use rulers to draw the shape and open the visualizer;...

  • Page 37: Whiteboard Functions

    Icon Name Icon Function Capture Tap to take a screenshot. New Page Tap to add a new page. Previous Tap to back to the previous page. Page Next Page Tap to go to the next page. Navigation Tap to show the page thumbnails. Settings Tap to enter the whiteboard setting interface.
  • Page 38 Mode Switch ● in the lower left corner of the whiteboard mode to switch to annotation modes. Options ● Tap the icon to enter options interface. Users can manage files, add Text, Sticky note, Search Image or Search Web etc. On the FILE items, you can import data from file management, save whiteboard files and export whiteboard page.
  • Page 39 On the TOOLS items, you can use rulers to draw line or shape on the page, import the visualizer image etc. On the CANVAS items, you can set the 2-split screen or 3-split screen to display the whiteboard page. QR code export ●...
  • Page 40 Move canvas ● On the whiteboard, tap the icon to enable the function, press and move your finger in the page to move canvas and content on it. Pen Type ● On the whiteboard, four types of pens are supported: hard pen, brush, highlighter and AI pen.
  • Page 41 icon supports three status: Unavailable: The icon is unavailable when users insert arrow and line; Unselected: The edge of shapes are colored when the icon is not selected; Selected: the shape will be filled with colors when you import the shape; Select ●...

  • Page 42: Icon Functions

    Finger gesture Rotate: Zoom in/out: Icon Functions Long press this icon to Rotate the selected items. Tap this icon to copy the items. Tap this icon to cut the items. Tap this icon to push to top layer. Tap this icon to push to bottom layer. Tap this icon to lock the layer.

  • Page 43: Whiteboard Setting

    Note to enter Settings> Default settings>Eraser to set the type of eraser. You can tap Clear All ● On the Whiteboard page, tap to show the pop-up windows to clear all content on the current page, as shown in the following figure: ●...
  • Page 44 Object recognition ● Users can drag the slider to enable the object detection function, tap icon to view details functions, as shown in the following figure: Example 1: Turn on write with Fine Pen only Fine Pen (2mm): User Fine Pen to write and erase with small eraser. ●...
  • Page 45 Fine Pen and finger (thick pen): User Fine Pen or finger (thick pen) to write. System ● will detect the thickness of writing and automatically switch to the corresponding color and thickness of pen/highlighter. The move button: After tapping this button, you can move the canvas with one finger ●...

  • Page 46: Page Operations

    Action hint: Drag the slider to enable the action hint. Default settings: Tap the button to enter the default setting page, any new page will use the default settings. Users can set whiteboard page background, change the color and thickness of Smooth Pen and Highlighter, change the default type of eraser, both object eraser and partial eraser can be set.

  • Page 47: Annotation

    ● 4.3.4 Annotation In annotation mode, the system generates a transparent layer at the top of the screen, and users can add annotations to the transparent layer until the annotation mode is exited. The user can enter the annotation mode through the following two methods: Tap the “...

  • Page 48: Application

    ● Save screenshot icon to pop up save screenshot interface, you can save or share screenshot as following: to select all pages. ● to view tips. ● to save the annotation pages to USB flash device. ● to share the annotation pages to local file or AquaMail. ●...

  • Page 49: Google App Store

    4.4.2 Newline display management+ Newline Display Management Plus is a remote display management solution that enables users to centrally manage the Newline displays from the comfort of their desk. Users can deploy and install apps, configure display settings, and push updates without communicating back and forth.

  • Page 50: Newline Cast

    PC apps among iOS/Mac OS/Windows/Android, eliminating the need for cables or adapters. on the Home Page to enter Newline Cast+. On screen directions will appear for you to follow in order to wirelessly cast to the display, as shown in the following figure: 4.4.4 Files...

  • Page 51: Functions Instruction

    Functions Instruction Tap the submenu on the left side to preview recent files, images, File Preview videos, audio, documents and downloads files, files on the external storage devices connected via the USB ports. and enter the keywords in the search box. The system will File Search display a list of files that match the searched for keywords.

  • Page 52: Vote

    Icon Name Icon Function Tap to take a screenshot, you can paste the Capture screenshot on whiteboard, save it to files, save it to USB or Share it. Rotation (Clockwise Rotate the camera image by clockwise direction. direction) Rotation (Counter- Rotate the camera image by counter-clockwise Clockwise direction) direction.
  • Page 53 Note “Vote” only works when both the panel and the mobile device are connected to the internet. User will see the voting topic and options on the mobile device after the QR code is scanned. After making the selection, tap “submit” to cast vote. In the voting process, the number of voters is displayed in real-time under the QR code.

  • Page 54: Extended Functions

    4.5 Extended Functions Functions Status Operation Turn on Press the power button. Notes: Enter the sleep state, the Go to Settings > Power > Power Option screen and backlight are off, menu to set the panel to enter sleep mode Sleep the Android system and OPS when pressing the power button.

  • Page 55: Sources

    Common functions Freedom: Select the free mode, you can freely drag the screenshot box to adjust the ● screenshot screen; Full screen: Select full screen mode, full screen capture; ● Save: Click Save to get the screenshot and save it automatically; ●...

  • Page 56: Automatically Power Off

    Icon Functions Drag the slider to adjust the brightness. Tap to enter the setting of internet. Tap to enable or disable the Bluetooth. Tap to enable or disable the Do Not Disturb function. Tap to enter the Nearby Share interface. Tap to enter the setting of Alarm.

  • Page 57: Network & Internet

    4.6.1 Network & Internet Enter the Network&Internet submenu to enable Wi-Fi or Ethernet, view network information, and enable the Wake on LAN function. Menu Setting Functions When the RJ45 port is properly connected to the network Ethernet cable, tap the button to View the MAC address, IP address, gateway, subnet mask, and DNS information.

  • Page 58: Apps

    Menu Functions After the device is connected via USB, it can transfer files or charge. Turn on Bluetooth and automatically search for available devices nearby. 1 Pairing other display, mobile phones, computers, need to enter the Pairing new pairing password or two-way confirmation; device 2 Bluetooth audio, keyboard and mouse can be directly paired, no need to enter a password.

  • Page 59: Storage

    Menu Functions Do not disturb Set how apps and notifications are displayed in Do not Disturb mode. Hide silent notifications in Switch ON/OFF status bar Allow notification Switch ON/OFF snoozing Notification dot Switch ON/OFF on app icon Enhanced Switch ON/OFF notifications 4.6.5 Storage Enter the Storage submenu to view the storage and space distribution of the device...

  • Page 60: Display

    Switch on/off, default off Appearance Display text and Set font size and screen size size Google theme Switch on/off Theme Newline theme Switch on/off, same theme as newline Z Logo Switch ON/OFF Color Switch ON/OFF Screen saver Switch ON/OFF -55-...

  • Page 61: Wallpaper & Style

    4.6.8 Wallpaper & Style Enter the Wallpaper & Style submenu to customize the wallpaper from file viewer and photos. Menu Functions Change Changeable wallpaper (wallpaper needs to be less than 10M and wallpaper resolution is less than or equal to 4K) Wallpaper Color Changeable wallpaper color Basic colors Changeable Basic colors...

  • Page 62: Location

    4.6.10 Location Enter the Location submenu to use location, view the apps recently accessed location and location services. Menu Functions Use location Switch ON/OFF App location Set the permission of app to access the device's location. permissions 4.6.11 Passwords & Account Enter the passwords and accounts submenu to view and add accounts and passwords.

  • Page 63: Power Setting

    Android system. App auto-launch 1. Default is off; 2. Only one Newline app can be selected at a time; 3. Enter the link, boot automatically jump to the URL. 4.6.14 Power Setting Enter the Power submenu to set power on or power off as following:...

  • Page 64: Google

    Studies have shown that just as the ultra-violet rays can cause eye damage, the shortwave-length blue light rays from displays can cause eyestrain, retina damage, and affect vision over time. Newline Blue Light filter is an eye protection feature that can reduce the blue light. TT-6524ZPRO / TT-7524ZPRO /TT-8624ZPRO has obtained this certification.

  • Page 65: System

    The Interactive Flat panel display use a low blue light panel default setting mode, that when used in the default setting mode, is certified by TUV to reduce blue light output and create a more relaxing and less stimulating image while reading content on the screen.
  • Page 66 Menu Setting Functions Profile info: Tap to change owner icon and name. Owner import data: If you had more than two devices and would like to keep the setting as the same. You can put the export file into the USB disk and plug it into the USB port, then press Owner the import option to import the setting you have...
  • Page 67 Menu Setting Functions Upgrade options are as follows: OTA, over the System update air update method and automatic updates. Whiteboard and screenshot data removal frequency: you can set the time period of keep the data. When the set time is reached, the data is automatically cleared.

  • Page 68: About Tablet

    Multiple Users Accounts There are multiple user roles on the system, and the permissions for each role can be assigned as shown in the table below. Functions Admin Owner User Guest Capacity No quantity limit Password ≤16 digits 4 digits 4 digits None composition...
  • Page 69 Menu Functions IP address Display IP address Mac address Display Mac address Bluetooth Display Bluetooth address address Up time Display the up time Tap to set the type of screen time, options included total screen time, Screen time daily screen time and weekly screen time. -64-...

  • Page 70: Serial Port Control

    Serial Port Control RS232 communication cable (please use cross data cables) This Device Computer RXD0 TXD0 TXD0 RXD0 RS232 port of panel Cover Connect RS-232 port to the PC or controlling product. Enable RS-232 serial port connection and complete the following configuration. Port: COM1 (Set according to PC or controlling product’s port number) Baud rate 19200...
  • Page 71 Function Controlling codes Return codes Enable 7F 08 99 A2 B3 C4 02 FF 01 07 CF 7F 09 99 A2 B3 C4 02 FF 01 07 01 CF whiteboard Display status 7F 08 99 A2 B3 C4 02 FF 01 09 CF 7F 09 99 A2 B3 C4 02 FF 01 09 01 CF HDMI 1 7F 08 99 A2 B3 C4 02 FF 01 0A CF 7F 09 99 A2 B3 C4 02 FF 01 0A 01 CF HDMI rear 1 /...
  • Page 72 Function Controlling codes Return codes ↑ 7F 08 99 A2 B3 C4 02 FF 01 2E CF 7F 09 99 A2 B3 C4 02 FF 01 2E 01 CF ↓ 7F 08 99 A2 B3 C4 02 FF 01 2F CF 7F 09 99 A2 B3 C4 02 FF 01 2F 01 CF Set volume 7F 08 99 A2 B3 C4 02 FF 05 XX CF 7F 09 99 A2 B3 C4 02 FF 05 XX 01 CF Query the...
  • Page 73 Function Controlling codes Return codes Freeze On 7F 09 99 A2 B3 C4 02 FF 0B 00 CF 7F 09 99 A2 B3 C4 02 FF 0B 00 01 CF Freeze Off 7F 09 99 A2 B3 C4 02 FF 0B 01 CF 7F 09 99 A2 B3 C4 02 FF 0B 01 01 CF Mute On 7F 09 99 A2 B3 C4 02 FF 0F 00 CF 7F 09 99 A2 B3 C4 02 FF 0F 00 01 CF Mute Off...
  • Page 74 Function Querying codes Return codes 7F 09 99 A2 B3 C4 02 FF 01 37 XX CF Notes: XX indicates the power on/off state. Power supply 7F 08 99 A2 B3 C4 02 FF 01 37 CF XX = 01: power on state; XX = 00: power off state.
  • Page 75 Function Querying codes Return codes 7F 09 99 A2 B3 C4 02 FF 01 49 XX Notes: Backlight 7F 08 99 A2 B3 C4 02 FF 01 49 CF XX indicates the value of backlight brightness brightness (1 - 100), corresponding to the hexadecimal number system (01 - 64).

  • Page 76: Faqs & Troubleshooting

    FAQs & Troubleshooting Symptom Troubleshooting Methods ● Check whether the power supply is connected. The screen cannot ● Check whether the power supply plug is properly connected. be powered on or the power indicator light is ● Check whether the power outlet has electricity. off.
  • Page 77 Symptom Troubleshooting Methods ● Generally, this issue is caused by the compatibility of the external display product. Replace the external display product and test No image is displayed when the HDMI out again. channel is used. ● The HDMI cable is too long or has a poor quality. Replace the HDMI cable delivered with the product.

  • Page 78: Specifications

    Specifications Model TT-5524ZPRO TT-6524ZPRO TT-7524ZPRO TT-8624ZPRO Display Backlight Display 47.64 x 26.77in / 56.22 x 31.61 in / 1428 64.96 x 36.55 in / 74.61 x 41.97 in / 1895 x 1066mm Area 1210 x 680mm x 803mm 1650 x 928mm Active 55 inch 65 inch...
  • Page 79 Model TT-5524ZPRO TT-6524ZPRO TT-7524ZPRO TT-8624ZPRO Maximum ≤ 600 W Maximum ≤ 650 W Maximum ≤ 780W Maximum ≤ 600 W Power Standby Mode ≤ 0.5 Standby Mode ≤ 0.5 Standby Mode ≤ 0.5 Consumption Standby Mode ≤ 0.5 W Working Voltage AC100-240V Max 6A AC100-240V Max 6A AC100-240V Max 6.5A...
  • Page 80 Model TT-5524ZPRO TT-6524ZPRO TT-7524ZPRO TT-8624ZPRO Gross Weight 35kg 46kg 60.5kg 75kg Ports HDMI In x 1, USB (Touch) x 1, USB 3.0 x 1, Microphone In x 1,Type C x 1 RS232 x 1, Line Out x 1, SPDIF Out x 1, HDMI Out x 1, Android USB 3.0 x 1, LAN IN x 1, Rear Interface LAN OUT x 1, Battery x 1 Inputs...
  • Page 81 Model TT-5524ZPRO TT-6524ZPRO TT-7524ZPRO TT-8624ZPRO Field of View 120° FOV Lenses Resolution Camera Tile 15° Range Note Manufacturer-reported maximum luminance LMax-Reported is 400cd/m -76-...

  • Page 82: More Information

    More Information For more information Please visit our website (www.newline-interactive.com) for detailed instruction manual. Once there, navigate to the Support section and click on Downloads. Choose VEGA Pro Series to download the User Manual for detailed instructions. Contact Us for Support Please directly contact the support team within your region.
