NOTE: Parts excluded in the parts list are not available as
,
replacement parts.
| SY-A88 SY-A88 |

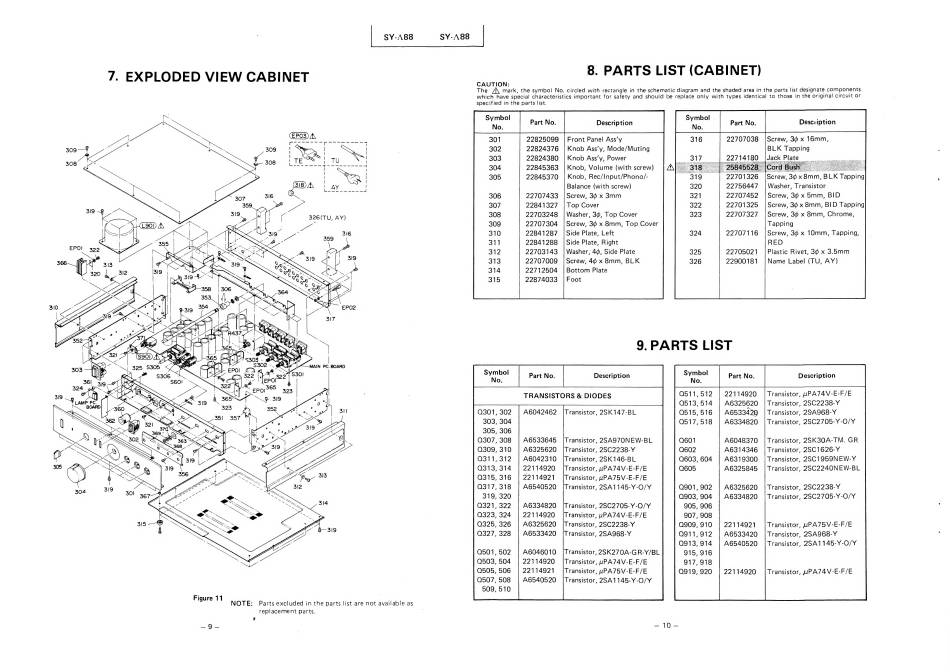

8. PARTS LIST (CABINET)
The /\ mark, the symbol No. circled with rectangle in the schematic diagram and the shaded area in the parts list designate components
which have special characteristics important for safety and should be replace only with types identical to those in the original circuit or
specified in the parts list.
Symbol Symbol . cos
22825099 | Front Panel Ass'y 316 22707038 |Screw, 3¢ x 16mm,
22824376 | Knob Ass'y, Mode/Muting BLK Tapping
22824380 | Knob Ass'y, Power | 317 22714180 |Jack Plate
22845363 | Knob, Volume (with screw) | A\}
22845370 | Knob, Rec/Input/Phono/- Screw, 3¢ x 8mm, BLK Tapping
Balance (with screw) 320 22756447 |Washer, Transistor
22707433 | Screw, 3¢ x 3mm 321 22707452 | Screw, 3¢ x 5mm, BID
22703248 | Washer, 3¢, Top Cover 323 22707327 | Screw, 3¢ x 8mm, Chrome,
22707304 | Screw, 3¢ x 8mm, Top Cover Tapping
22841287 | Side Plate, Left 324 22707116 |Screw, 3¢ x 10mm, Tapping,
22841288 | Side Plate, Right RED
22703143 |Washer, 4¢, Side Plate 325 22705021 | Plastic Rivet, 3¢ x 3.5mm
22707009 | Screw, 4¢ x 8mm, BLK 326 22900181 |Name Label (TU, AY)
22712504 | Bottom Plate
22874033 | Foot
9.PARTS LIST
No. No.
TRANSISTORS & DIODES
Q511,512 | 22114920 | Transistor, uPA74V-E-F/E
0513,514 | A6325620 | Transistor, 2SC2238-Y
0301, 302 A6042462 |Transistor, 2SK147-BL 0515, 516 A6533420 Transistor, 2SA968-Y
303, 304 0517,518 A6334820 | Transistor, 2SC2705-Y-0/Y
305, 306
0307, 308 | A6533645 |Transistor, 2SA970NEW-BL O601 A6048370 | Transistor, 25K30A-TM. GR
0309, 310 | A6325620 Transistor, 2SC2238-Y O602 A6314346 | Transistor, 2SC1626-Y
Q311,312 | A6042310 |Transistor, 2SK146-BL Q603, 604 | A6319300 | Transistor, 2SC1I959NEW-Y
0313, 314 22114920 Transistor, uPA74V-E-F/E Q605 A6325845 | Transistor, 2SC2240NEW-BL
Q315,316 | 22114921 |Transistor, u~PA75V-E-F/E
Q317,318 | A6540520 |Transistor, 2SA1145-Y-O/Y 0901,902 | A6325620 | Transistor, 2SC2238-Y
319, 320 Q903, 904 | A6334820 | Transistor, 25C2705-Y-0/Y
Q321,322 | A6334820 |Transistor, 2SC2705-Y-O/Y 905, 906
Q323, 324 | 22114920 (Transistor, uPA74V-E-F/E 907, 908
0325, 326 | A6325620 |Transistor, 2SC2238-Y Q909,910 | 22114921 |Transistor, uUPA75V-E-F/E
0327,328 | A6533420 |Transistor, 2SA968-Y Q911,912 | A6533420 | Transistor, 2SA968-Y
Q913,914
915,916
917,918
Q919, 920
A6540520 : +| Transistor, 2SA1145-Y-O/Y
Q501, 502
Q503, 504
Q505, 506
0507, 508
509, 510
A6046010
22114920
22114921
A6540520
Transistor, 2SK270A-GR-Y/BL
Transistor, UPA74V-E-F/E
Transistor, uPA75V-E-F/E
Transistor, 2SA1145-Y-O/Y
22114920 |Transistor, uPA74V-E-F/E
