Introduction

Notice

1. Not recommended for PPT, Excel, Word presentations
2. Change your PC/laptop screen resolution to 1280*720 for the best clarity
3. Please note that it is suitable for use only in a totally dark environment.
4. Dolby Audio is NOT supported.

Accessory list

1x AV Signal Cable

1x Remote Control ( battery not included)

1 x HDMI Cable

1x Power Cable

1 x User Manual

1x Warranty Card

1x Operation Guide

1x Adjustable Screw

REMOTE CONTROL

1. Power On/Off
2. Pause/Play
3. Zoom
4. Mute
5. Flip
6. Up/Down/Left/Right
7. Confirm
8. Return
9. Menu
10. Source
11. Volume -
12. Volume +

Do not submerge the remote control in water.
Do not expose the remote control to the outdoors, liquid, moisture, excessive heat, or fire.
Do not use old and new batteries together in the remote control.
Please take the batteries out if not using the remote control for a long time to avoid battery leakage.
The remote control must be held perpendicular to the projector's IR remote sensor to function correctly.

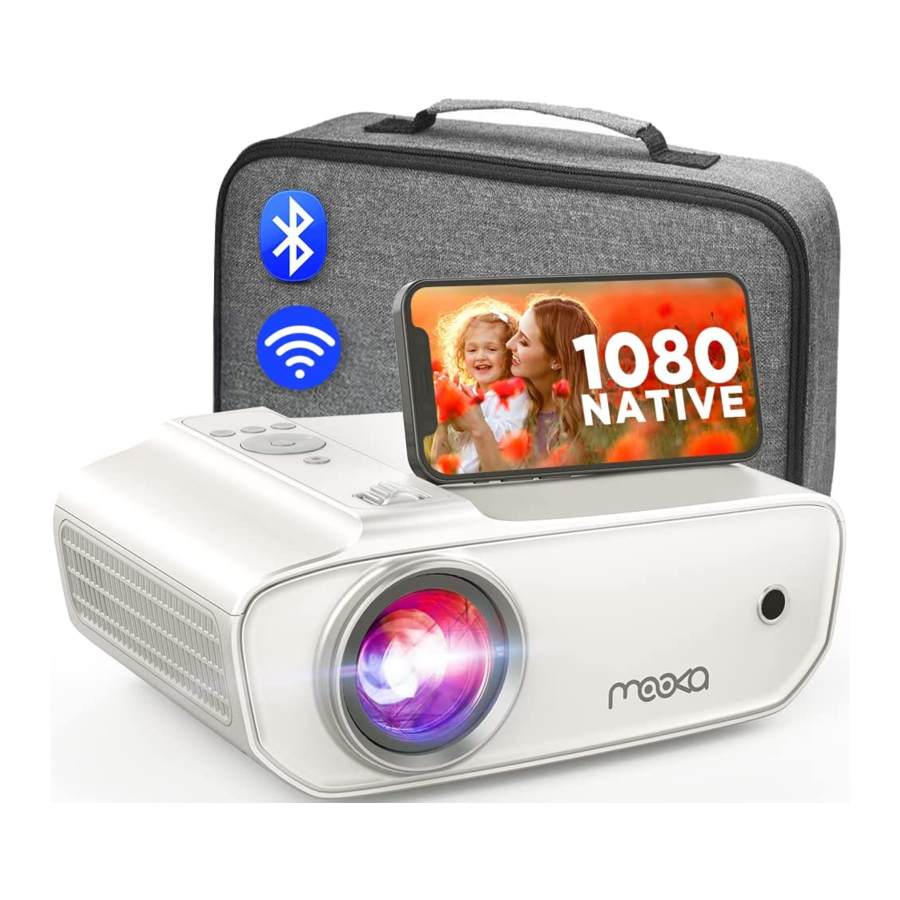

PROJECTOR OVERVIEW

Connecting the projector to power

1. Plug the power cord to the projector.

2. The power indicator on the projector lights up after the power cord has been connected.


Power ON/OFF

Press the "" button on the projector or on the remote control to power on.

Multimedia boot screen

The multimedia screen will be displayed in 10-20 seconds after you press the power button.

Focus& keystone correction

1. If the image is displayed as a trapezoid shape, turn the keystone correction knob on the upper surface of the projector until the projected image becomes rectangular to correct the keystoning issue.
2. Make sure the projector is horizontal to the projector screen and rotate the focus ring to sharpen the projected image.


Optical adjustments

The projector corrects the image deformation by the optical keystone correction.
See the example below:

However, this projector does not have a horizontal keystone correction function.
The projector must be placed horizontally to the projection screen.

If you encounter the problem as shown above, it is probably because the projector has not been placed horizontally to the projection screen, or the projection screen is not vertically positioned.

Solution: Adjust the projector's position so that it is horizontal to the projector screen.

Connections

Playing media files from a USB Drive

1. Insert a USB storage device into a USB port.

2. Pick USB at the Signal Sources menu.


Supported multimedia file formats and types

3. Choose the content you need to display:
   Video/music/photo/text.

4. Choose the file you want to play. Press the "" key to play or to pause.


AV video connection

Use a 3-in-1 AV cable to connect to the projector as shown below. Once connected, pick AV at the Signal Sources menu.

HDMI connection

Use the HDMI slot to connect computers and HDMI compatible devices. Once connected, pick HDM1 at the Signal Sources menu.

Supported resolutions:
576P, 480P, 720P, 1080P, 640x480, 800x600, 1024x768, 1280x1024, 1280x720, 1440x900, 1366x768, 1920x1080, 1280x800, 1440x960, 680x1050

3.5mm audio connection

Use a 3.5mm audio jack to connect headphones/speakers.

Note:Dolby sound is not supported.

Menu settings

Remote control user guide

1. Press the "" key to enter the main menu, then press the "" key to enter each sub-menu.
   Press the "" key to select the sub-menu, then adjust the parameters as required, and press the "OK" key to confirm.

Using the Sub-menu

The Sub-menu picture provided below is for reference only, and may differ from the actual design.

1. Available adjustments: Picture Mode/Color Temperature/Aspect Ratio/Noise Reduction/Screen/Projection Direct/HDMI Mode/Reduce Display


   Zoom:
   Adjust the size of the image using the Zoom function in the Reduce image sub-menu.
   Zoom range: 75%-100%
   (Note: This function is only valid in the video screen)
2. Sound sub-menu:
   Available adjustments: Sound Mode/ Balance/ Auto Volume/ Volume/Bluetooth

   Turn on/off Bluetooth
   When the Bluetooth is turned on, search for nearby Bluetooth speakers or earphones to pair the device.
   Press the "OK" button to pair the device.
   When the device is connected, press the "OK" button again to disconnect the device.
3. Settings sub-menu:
   Timer shutdown: After selecting the timer shutdown duration in the menu, after the selected time is completed The machine will enter standby
   Timer: The projector enters standby mode automatically when the set duration of the timer elapses.

4. Settings sub-menu:
   Timer: The projector enters standby mode automatically when the set duration of the timer elapses.

   Timer shutdown: After selecting the timer shutdown duration in the menu, after the selected time is completed The machine will enter standby
5. Input Source sub-menu:
   Available adjustments: AV/HDMI 1/Screen Mirroring/VGA/USB

Screen Mirroring

1. Select Screen Mirroring in the Input Source list
2. Press the OK key to enter the interface
3. Pick the appropriate variant (Figure 1)

   Figure 1

Android OS

Android Screen has two connection methods.

Method 1: Wireless connection (Recommended)

1. Select Android Screen function

2. Turn on the WLAN on the Android device
3. Launch the Multi-screen / Wireless Display / Screen Mirroring / Smart View / Cast function (Figuer1)

   Figure 1

3. Select "MOOKA-XXXX" from the searching result list (Figure 2)

   Figure 2

Some Android devices may not support screen mirroring due to the compatibility.

Method 2: Wired connection

1. Select Android Screen function.
2. On your Android device, find Developer options and turn on USB debugging.
3. Connect your Android device to the projector OUT5V port via the ORIGINAL USB cable.
4. For the first time, when the "Allow USB Debugging" window appears, select "Always allow from this computer" and tap "OK" to start screen mirroring.

   Figure 1

Tips:
USB debugging steps may vary due to different devices Android OS differences,
Search for "How to open the USB debugging mode on "Your device" in Google.
Actual prompts are based on Samsung Galaxy S8+ 0S.

1. Open the 'Settings', tap About->Software Information->Build number;
2. Tap "Build number" seven times until it shows Developer mode is turned on
3. Go back to settings, scroll down and select 'Developer options'
4. Find the 'Debugging' section;
5. Tap the toggle next to "USB Debugging'.

1. Some Android devices may not support screen mirroring due to the compatibility.
   Such as: some models of Google/Motorala/Sony
2. Some Android devices may only transfer the display without audio due to the protocol restrictions.

iOS

iOS has 4 connection methods:

Method 1: Wireless connection with Wi-Fi router (Recommended)

1. Connect the projector to a Wi-Fi router;
2. Select iOS Screen Mirroring function;
3. Connect your iOS device to the same Wi-Fi router
4. Turn on Screen Mirroring on your iOS device, find the projector for pairing.


Method 2: Wireless connection without Wi-Fi router

1. You don't need to connect the projector to Wi-Fi router;
2. Select iOS Screen Mirroring function;
3. Turn on Wi-Fi on your iOS device and search for the network name of the projector (for example MOOKA-B09586);
4. Pick it and enter the password: 12345678. Your iOS device will connect to the projector automatically.
5. Turn on Screen Mirroring on your iOS device, find the projector for pairing.


Method 3: Streaming with your Wi-Fi router

1. Tum on the projector, select Screen Mirroring as the input source to enter the Screen Mirroring interface for iOS;

2. Open the 'Settings', connect your iOS device to the "LEISURE470-XXXXXX" Wi-Fi (pwd: 12345678);
3. Open the http://192.168.49.1 webpage with the browser on your mobile device, Tap Wi-Fi AP >Scan, select your router's Wi-Fi and enter the appropriate password. Tap 'Connect' to continue;

4. Your router's WiFi will be displayed on the Screen Mirroring interface for iOS after a successful connection;

5. Open the 'Settings', connect your iOS device to the same router's WiFi;
6. Turn on Screen Mirroring on your i0S device, find the projector (LEISURE470-XXXXXX) for pairing.

Tips:
If you'd like to connect to another Wi-Fi router, please repeat the above procedures.

Method 4: Wired connection

1. Select i0S Screen Mirroring function;
2. Connect your iOS device to the projector OUT5V port via the original USB cal
3. Confirm the screen mirroring: when the "Trust this Computer?" window app tap "Trust' to start screen mirroring.

4. Confirm "Turst", then the screen mirroring will start

Setting

Description

WiFi: Connect to Wi-Fi router
Reset: Restore the Screen Mirroring function to its original system state
OTA: Online update
Mirror Setting: Mirror mode/Airplay mode

PROJECTOR INSTALLATION

Installation Method

The projector can be hanged on the ceiling with special hanger frame, and placed on the stable desk to to project the image according to the operating environment and requirement. In addition, the projector can be installed as following methods:

1. Ceiling/front projection

2. Desk/front projection

3. Ceiling/rear projection

4. Desk/rear projection


Install on the ceiling

1. Contact a professional installer for the projector ceiling mounting;
2. Please ensure that the screws used for ceiling mounting are of high quality and the length is enough to prevent the projector from falling;
3. Please purchase an universal projector ceiling mount;
4. Remove the four rubber pads on the bottom of the projector, you will see the screw holes and use the M5*11 mm screws for instaling the ceiling, and then install it.


1. The projector may be damaged beyond repair it is incorrectly mounted on a ceiling or on a surface.
2. The recommended ambient temperature range is 41°F - 95°F.The incorrect temperature may lead to the device malfunction.
3. Please do not place the projector in wel, moist, or dusty conditions to prevent electric shock or malfunction.
4. Poor ventilation can be a significant cause of overheating. It could cause a projector to be damaged.
5. Please use a coarse screw with a diameter of 1/4 inch and a thread of 20/inch to fix.

Throw distance and screen size

For reference only. Throw distance and screen size may vary due to different configurations.

Technical Specifications

CUSTOMER SERVICE

NOTE:

1. Only suitable for home entertainment in a dark environment. NOT for presentation purposes.
2. Dolby audio is NOT supported.
3. DO NOT obstruct the air vents when using. UNPLUG & PREVENT DUST from entering when not in use.

Should you have any questions or feedback about your new product, simply get in touch with our customer support team at:

1-855-6669955

support@mookashops.com

www.mookashops.com

24/7 LIVE CHAT SUPPORT
Scan QR Code & Start Chatting

Safety Precautions

1. Please read the user manual carefully before using the projector.
2. Only use the power cord supplied with this product with an electrical socket that is earthed properly.
3. Please use the same power voltage as marked on the projector.
4. Please do not disassemble the projector by yourself, otherwise it will void your warranty.
5. Please do not look into the lens directly while the projector is turned on, it may cause damage to your eyes.
6. DO NOT block the air vents during the use.
7. Please keep the projector away from water or any other liquid as it is not waterproof.
8. Please do not put the projector in wet or moist conditions to prevent electric shock.
9. Please switch off and unplug the appliance when it is not in use for a long time.
10. Please use the original packaging foam or other anti-shock material when relocating the projector.
11. Please contact the MOOKA customer support team if you encounter any problem with the projector.
12. This mini projector is covered by the MOOKA 12-month warranty.
13. Please contact us if you want to know more about the warranty. (The frame, user manual, and packaging are not covered by the warranty)
