Oregon Scientific RM303P User Manual

Radio Controlled Projection Clock
Model: RM303P
USER MANUAL
EN

BRIEF INTRODUCTION

Thank you for your purchase of this Projection Alarm Clock.
Please read these instructions carefully and keep the manual
well for future reference.
The unit has a clear and easy-to-read display that shows the
time, date and alarm status.
This product is designed to synchronize its date andtime au-
tomatically once it is within range of the signal from the atomic
clock in Germany/UK.

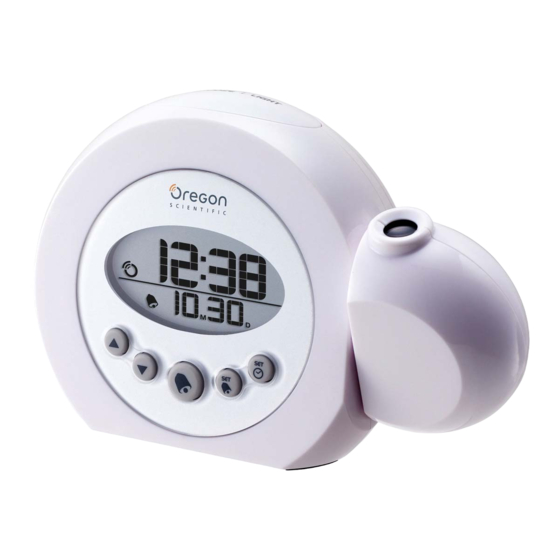

OVERVIEW

2.
3. 13.
12.
1.
4. 9.
11.
5.
6.
8.
7.
1. Projector:
• Use it to project the time.
2. SNOOZE / LIGHT key:
• In normal time mode, press it once to turn on the backlight
for 5 seconds.
• Press it to silence the current alarm when it is going and
enter the snooze mode for 8 minutes.
3. LCD display:
• Displays time, and date.
4. key:
• In time setting mode, press it to increase the setting
values.
5. key:
• In time setting mode, press it to decrease the setting
values.
6. SET CLOCK key:
• In normal time mode, press it once to enter the normal
time setting mode.
• In normal time setting mode, press it once to step into
the setting items. Press and hold it to exit the setting
mode in any step.
7. SET ALARM key:
• Press it once to turn on the backlight for 5 seconds, and
press it again to enter the alarm time setting mode.
• In alarm time setting mode, press it once to step into
the setting items.
ALARM ON / OFF key:
8.
• Press it once to turn on the backlight and display the
alarm time for 5 seconds.
• Press it again to turn on / off the alarm.
9. DC jack:
• Plug DC adaptor to power the clock.
10. BATTERY COMPARTMENT:
• Accommodates 2 AA size batteries.
11. RESET key:
• Press it to return all values to default values.
• In case of malfunction, the unit may be required to reset.
12. PROJECTION ON / OFF slide switch:
• Slide it to turn on / off the projector.
180° FLIP key:
13.
• Press it to rotate the projected image by 180°.
14. RCC key:
• In normal time mode, press it once to receive the RC
signal for reception testing.
15. UK / EU slide switch:
• l S d i e t i o t s e e l t c h t e c o u t n y r v
(Germany) and UK (England).
16. BATTERY DOOR
LCD DISPLAY
1. Low battery indicator
2. Time
3. Alarm time & Date
3.
BATTERY COMPARTMENT
Remove the battery door and slide "UK / EU" switch to
1.
select the desired country version.
2. Insert 2 new AA size batteries as per the polarity
information marked on the battery compartment.
3. Press "RESET" key to restart the clock.
4. Replace the battery door.

RECEPTION OF RADIO CONTROLLED TIME SIGNAL

The time and calendar are radio-controlled. The current time
and calendar are automatically synchronized with time signal
transmitted from Germany / UK.
pressing "RESET" key), the clock will start to receive the time
5 minutes.
SIGNAL RECEPTION INDICATOR
No signal
NOTE:
1. The unit will automatically search for the time signal at
2:00 (3:00 or 4:00 is also available if the signal is not
received at 2:00), 8:00, 14:00 and 20:00 each day.
2. Always place the unit away from interfering sources such
as TV set, computer, etc.
3. Avoid placing the unit on or next to metal plates.
4. Closed area such as airport, basement, tower block or
16.
factory is not recommended.
5. Do not start reception in moving articles such as vehicles
or trains.
15.
14. TIME AND CALENDAR MANUAL SETTING
If you are out of reach of the Radio Controlled sensor or if the
reception is not reachable, the time and calendar can be set
manually. As soon as the signal of sensor is received again,
the clock will automatically synchronize with the exact time
and calendar.
1. In normal time mode, press "SET CLOCK" key once to
enter the time setting mode.
2. Press "
3. Press "SET CLOCK" to confirm. The setting order is:
12 / 24 -hr format, time, + / - 23 hours time difference,
year, day / month format, date.
4. Press "SET CLOCK" key to save and exit the setting
mode.
12/24 Hr setting
Month-Date setting
NOTE:
1. During the setting period, press and hold "
to speed up the change of settings.
2. Through "+ / - 23 hours time difference" setting, the
precise time of another area will be shown.

ALARM TIME SETTING

1. In normal time mode, press "SET ALARM" key once to
enter the alarm time setting mode.
2. Press "
3. Press "SET ALARM" key to save and exit the setting
mode. "
Normal time mode
NOTE:
1. The alarm will be automatically turned on when you set
the alarm time.
2. During the alarm time setting period, press and hold "
or " " key to speed up the change of settings.

USING ALARM FUNCTION

e s r o i n b t e w e e n E U 1. Set the alarm time as the above section.
2. In normal time mode, press "ALARM ON / OFF" key once
to display the current alarm time.
3. Press it again to turn alarm ON / OFF.

TO SILENCE THE ALARM

1. Press "SNOOZE / LIGHT" to silence the alarm for 8
2. 2.
Press any other key to turn the alarm off and activate it
again after 24 hours.
3. If no key is pressed within 120 seconds, the alarm will be
1.
turned off and be activated
again after 24 hours.
Weak signal Excellent signal
" or " " key to change the settings.
Time difference setting Time setting
MD / DM setting Year setting
" or "
" or " " key to set hour / minute.
" indicates alarm is ON.
Alarm time setting

USING THE PROJECTOR

Slide "PROJECTION ON / OFF" to turn on / off the projector,
and project to a dark background within 1-4 meters so that the
time will be shown as below:
NOTE:
1. Slide "PROJECTION ON / OFF" to turn on the projection
function.
2. Press "SNOOZE / LIGHT" to turn on the projector for 5
seconds.
3. When using DC power adapter, the projector will be
turned on all the time.
4. If the alarm is turned, the alarm icon "
5. Press "180 FLIP" to rotate the projected image by 180°.

BATTERY REPLACEMENT

If the low battery indicator "
indicates that battery power of main unit is not enough and
you should replace with 2 new AA size batteries at once.
Low battery indicator
NOTE:
Attention! Please dispose of the used unit or batteries in an
ecologically safe manner.

SPECIFICATIONS

TYPE
MAIN UNIT
L x W x H
Weight
Power
NOTE: We recommend that you use alkaline batteries with this
product for longer usage and lithium batteries in temperatures
below freezing

PRECAUTIONS

• Do not subject the unit to excessive force, shock, dust,
" key
temperature or humidity.
• Do not cover the ventilation holes with any items such as
newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid over it,
dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosivematerials.
Do not tamper with the unit's internal components. This
invalidates the warranty.
• Only use fresh batteries. Do not mix new and old batteries.
• Images shown in this manual may differ from the actual
display.
• When disposing of this product, ensure it is collected
separately for special treatment and not as normal
household waste.
• Placement of this product on certain types of wood may
will not be responsible.
• Consult the furniture manufacturer's care instructions for
information.
• The contents of this manual may not be reproduced without
the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal waste.
Collection of such waste separately for special treatment
is necessary.
• Please note that some units are equipped with a battery
safety strip. Remove the strip from the battery compartment
"
NOTE:
contents of the user manual are subject to change without
notice.
ABOUT OREGON SCIENTIFIC
Visit our website (
products. If you're in the US and
TM
would like to contact our Customer Care department directly,
please visit:
OR
Call 1-800-853-8883.
For international inquiries, please visit:
" will also be projected.
" displays beside the time, it
DESCRIPTION
149 x 57 x 100 mm
(5.87 x 2.24 x 3.94 in)
2 x AA 1.5V batteries
TM
) to learn more
