Medistrom PILOT-19 LITE Quick Start Manual

PILOT-19 LITE QUICK START GUIDE
IMPORTANT!
• Fully charge the battery before storage and recharge it once every 6 months
while stored! Failure to do so will void the warranty.
• DO NOT expose the battery to temperatures above 40°C / 104°F or below
-10°C / 14°F. Extreme temperature ranges can cause damage to the battery
cells and result in fire Hazards!
1 2
Charge times for the Pilot-19 Lite via the BMC
M1 Mini device AC adapter is approximately 4-5
hours.
Charge time via other compatible power adapters
may vary. The Pilot-19 Lite can also be charged
using the Medistrom Pilot Lite AC Adapter
(P24ACCACA).
NOTE: The Medistrom Pilot Lite AC Adapter
(P24ACCACA) should not be used in the backup
configuration.
Please fully charge your Pilot-19 Lite before using
for the first time.
CONNECTING PILOT-19 LITE TO PAP DEVICE
Plug the long L-shaped yellow tipped end of the
DC Output cable for BMC M1 Mini (P19BM1DOC)
into the DC Out Port of your Pilot-19 Lite and plug
the short L-shaped yellow tipped end of the DC
Output cable for BMC M1 Mini (P19BM1DOC) into
the BMC M1 Mini device.
To use in backup configuration, keep battery
charging while connected to PAP device.
For technical support and questions about this product
please email to support@medistrom.com or contact us by phone:
North America: 1-888-407-4791| Australia: 1300-146-358| Europe: +44-800-060-8576

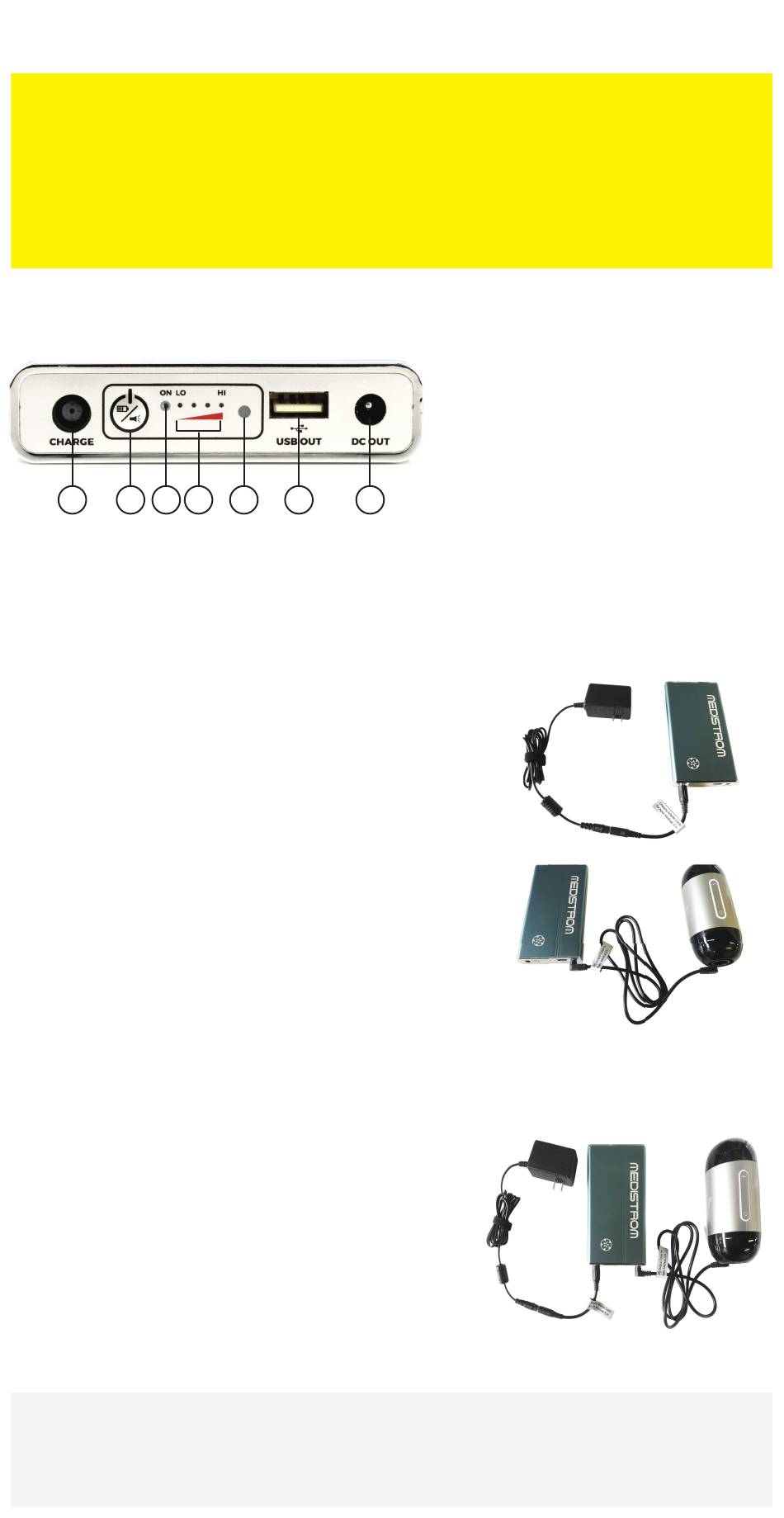

PILOT-19 LITE CONTROL PANEL
3 4 5 6
CHARGING THE PILOT-19 LITE
1. Charge Port
2. Multi Function Button
3. Blue "ON" Indicator Light
4. Green Charge Level Indicator Lights
7
5. LED Flashlight
6. USB Port (5V 2.5A Out)
7. DC Out Port
