Summary of Contents for Oricom UHF2600

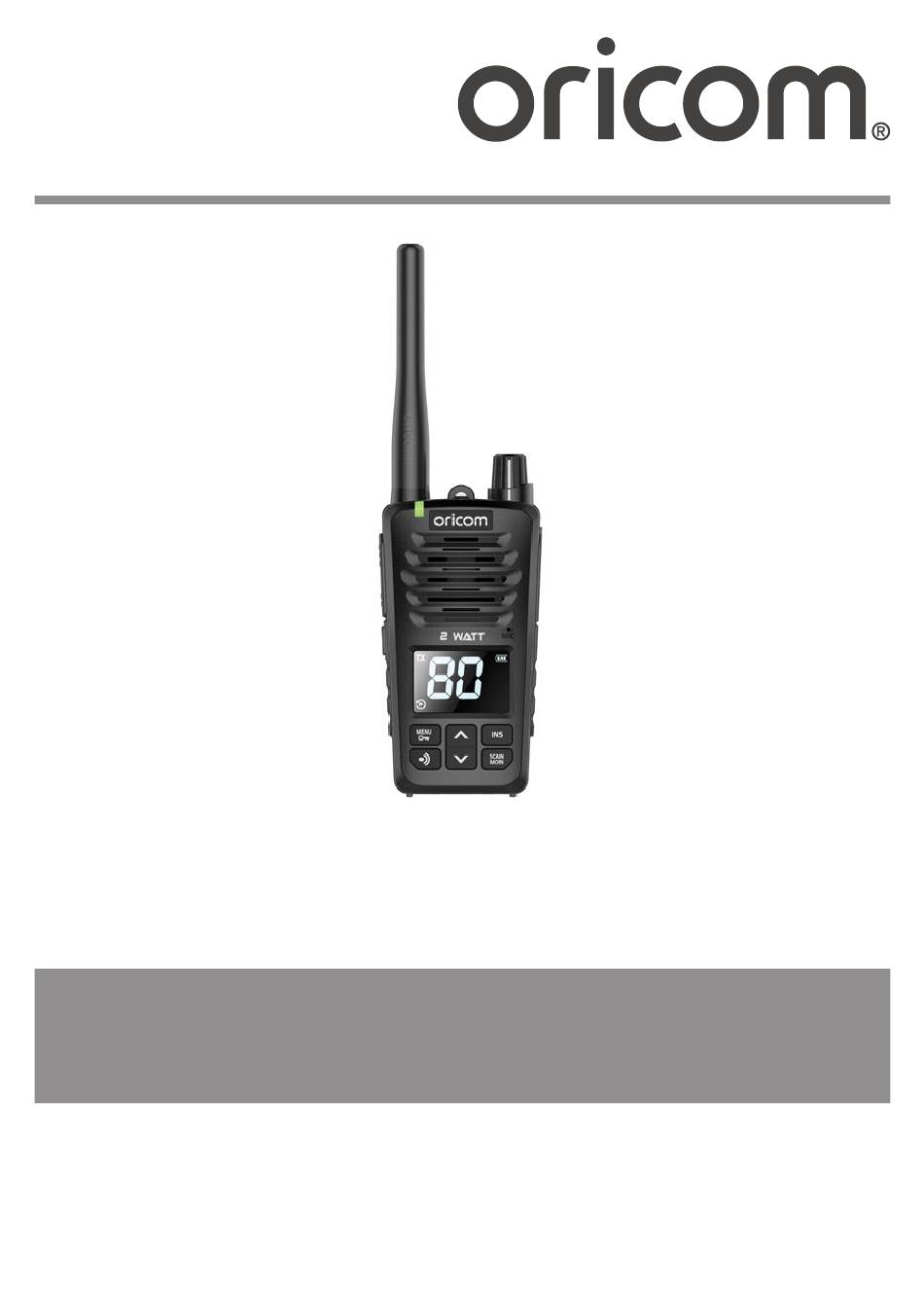

- Page 1 Operating Instruction UHF2600 Floating Waterproof 80 Channel UHF Citizen Band Radio Keep this user guide for future reference. Always retain your proof of purchase in case of warranty service. www.oricom.com.au...
- Page 2 When a narrowband radio receives a transmission from an older wideband radio the speech may sound loud and distorted – simply adjust your radio volume for the best listening performance. When an older wideband radio receives a signal from a new narrowband radio the speech may sound quieter - simply adjust your radio volume for best listening performance.
-
Page 3: Table Of Contents
LCD Display ..........15 Keys Operation ........16 Menu Operation ........21 Express Warranty (Australia) ....23 Need Help? If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support. Australia (02) 4574 8888 www.oricom.com.au Mon-Fri 8am –... -
Page 4: Safety Information And Warnings
• Always keep out of direct sunlight in confined environments. Information on Safe Operation Read This Information Before Using Your Oricom Radio. The operation of your UHF radio in Australia and WARNING New Zealand is subject to conditions in the following... -
Page 5: Potentially Explosive Atmospheres
Safety Information and Warnings Unauthorized antennas, modifications, or attachments could damage the radio and violate compliance. Do WARNING Not change or modify the antenna. Do not hold the antenna when the radio is "in use". Holding the antenna reduces range and may cause bodily harm. -
Page 6: Blasting Caps And Areas
"blasting area" or in areas posted: "Turn off two way radios". Obey all signs and instructions. Exposure to Radio Frequency Energy Your Oricom two-way radio complies with Australian Communication Authority Radio communications (Electromagnetic Radiation-Human Exposure) Standard, 2003. To ensure optimal radio performance and to make sure... -
Page 7: Transmit And Receive Procedure
Safety Information and Warnings Transmit and Receive Procedure Your two-way radio contains a transmitter and a receiver. WARNING To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, always adhere to the following procedures: • Transmit no more than 50% of the time. •... -
Page 8: Electromagnetic Interference/Compatibility
Safety Information and Warnings Electromagnetic Interference/ Compatibility WARNING Nearly every electronic device is susceptible to electromagnetic interference (EMI). To avoid the possibility of electromagnetic interference and/or compatibility conflicts, turn off your radio in any location where posted notices instruct you to do so such as health care facilities. -
Page 9: General Warnings
Safety Information and Warnings People with pacemakers should: • Always keep the radio more than 15cm from their WARNING pacemaker when the radio is turned ON. • Not carry the radio in the breast pocket. • Use the ear opposite the pacemaker to minimize the potential for interference. -
Page 10: Features
Features FEATURES • 2 Watt TX power • Floating and Drop in Water Flash • Waterproof IP67 • Lithium-Polymer rechargeable Battery 3.7V 2600mAh • 80 Channels • 38 CTCSS & 83 DCS codes • Back Lit LCD display • Replay: Record and replay Receive signal up to 6 mins •... -
Page 11: Installation
Installation Pack Included UHF2600 Radio Battery Pack Belt clip Antenna USB Charger Cable User’s guide INSTALLATION Antenna • Screw on the antenna to the radio. • Do not over tighten the antenna. - Page 12 Installation Battery installation • Open battery locking latch. • Slide the battery into battery compartment. • Press down the battery pack and clip on the locking latch. • Make sure the battery pack is locked in tight, waterproofing is compromised if battery is not installed correctly.
- Page 13 Installation Charging the Radio • Open the SPK/MIC cover. • Plug the USB cable into the jack. • Plug the other end into a 5V USB adaptor (not supplied). Note: the output of the 5V USB adaptor must be 1A or above. •...
-
Page 14: Overview
Overview OVERVIEW MENU SCAN 1. Antenna 11. LCD Display 2. Signal Indication LED 12. Instant Channel 3. PTT 13. Scan / Monitor 4. Replay 14. Speaker/Mic & Charging Jack 5. Menu / Key Lock 15. Belt Clip 6. Call Tone 16. -
Page 15: Lcd Display
LCD Display LCD DISPLAY 1. Main Channel number 9. Scan 2. Key Lock 10. Call Tone 3. Battery Level 11. Replay 4. DCS Code 12. Scrambler 5. CTCSS Code 13. Instant Channel 6. DCS / CTCSS Code Number 14. VOX 7. -
Page 16: Keys Operation
Keys Operation KEYS OPERATION Turn On/Off radio • Rotate the Power / VOL knob clockwise until the LCD display turns ON. • Rotate the Power / VOL knob counter clockwise until the LCD display turns Off and you hear a click. Adjust the Speaker Volume •... - Page 17 Keys Operation • LCD displays the scanning channels. • The radio will stop at channels with a signal. • Press Up/Down buttons to continue scanning. • Or if you want to stay on this channel, press PTT to stop scanning. •...
- Page 18 Keys Operation Change Instant Channel Press Menu key, scroll to INS settings LCD display CTCSS TW RPT LCD icon INS on, Big digits - Channel number will flash. Press Up/Down Key to select the channel e.g. CTCSS CTCSS TW RPT TW RPT Press INS again to confirm and set INS 2 Press Up/Down key to select.
- Page 19 Keys Operation Set CTCSS / DCS Code for Instant Channel Press INS key, display INS 1 LCD display CTCSS TW RPT Press MENU key If INS channel with Repeater, LCD will display: For those channel with no Repeater, it will CTCSS skip this display and go directly to the below code setting...
- Page 20 Keys Operation Replay Function • Receive signal recording up to 6 mins. • The default Replay function is set to OFF. • When replay fuction is turned on, the display shows icon. • When the radio receives signal, the radio will automatically record the signal.
-
Page 21: Menu Operation
Menu Operation Note: 1 The radio will not record under the below conditions: - Receive signal less than 500ms - During playback - During Scan or Monitor mode 2 When total recordings have reach maximum combined duration (6mins) the oldest recording will be automatically deleted to free up space. - Page 22 Menu Operation Functions Step Display Default Remarks Repeater ON or OFF Only available in Duplex Channels CTCSS CTCSS Off, 1-38 If the selected channel is not a repeater channel, this feature is not available and all other menu Off, 1-83 features will require less 1 key press to select that feature.
-
Page 23: Express Warranty (Australia)
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Oricom warrants that the product is free from defects in materials or workmanship during the Express Warranty Period. - Page 24 All component parts removed under this Express Warranty become the property of Oricom. In the unlikely event that your Oricom product has a recurring failure, Oricom may always, subject to the Competition...
- Page 25 Express Warranty (Australia) Oricom will not be liable under this Express Warranty, and to the extent permitted by law will not be liable for any defect, loss, damage or injury arising out of or in connection with a: Failure by you to adhere to the warnings and follow the instructions set out in this user guide for the proper installation and use of the product;...
- Page 26 Please note that if a Customer Support Team member advises that your product does not qualify for return, this warranty does not apply to your product. Products that are authorised to be returned to Oricom in Australia must include all of the following: •...
- Page 27 Express Warranty (Australia) Important Information Repair Notice Please be aware that the repair of your goods may result in the loss of any user generated data (such as stored telephone numbers, text messages and contact information). Please ensure that you have made a copy of any data saved on your goods before sending for repair.
- Page 28 Oricom Support - Australia For all product enquiries, troubleshooting or to discuss the range of Oricom products, feel free to contact Oricom or visit our website for answers to frequently asked questions. (02) 4574 8888 Monday - Friday 8am - 6pm AEST Email: support@oricom.com.au...
