Summary of Contents for Artusi CACC70/1

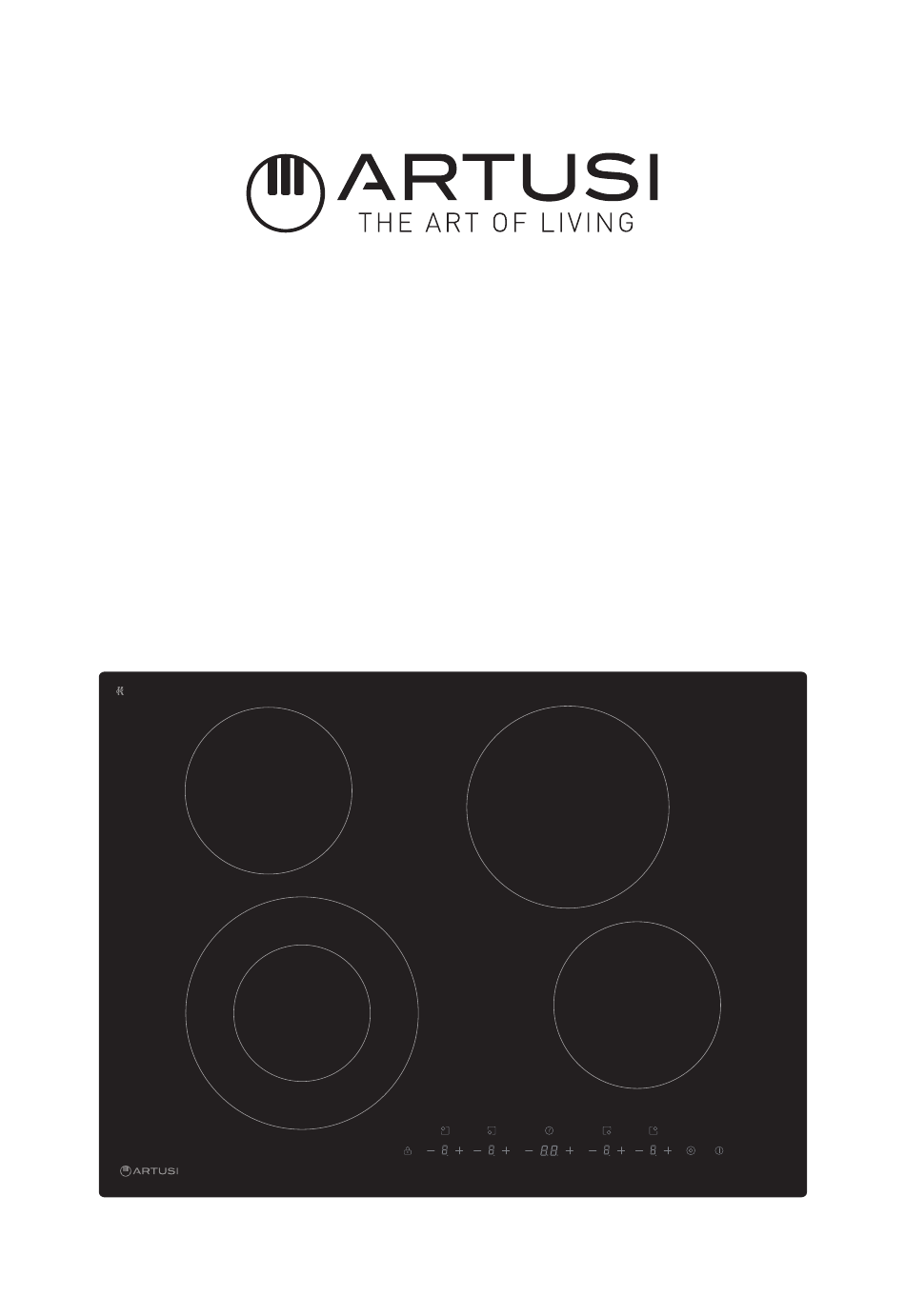

- Page 1 Touch Control C ramic Hob Instruction Manual / Installation Manual MODEL: CACC70/1...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. -
Page 3: Safety Warnings
SAFETY WARNINGS Your safety is important to us. Please read this information before using your cooktop. INSTALLATION Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. •... -
Page 4: Operation And Maintenance
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts. •... - Page 5 • Keep children away. • Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children. • Failure to follow this advice could result in burns and scalds. Cut Hazard •...
- Page 6 • Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass. • Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass. •...
-
Page 7: Specifications
SPECIFICATIONS Cooking Hob CACC70/1 Cooking Zones 4 Zones Supply Voltage 220-240V~ 50Hz or 60Hz Installed Electric Power 5800-7000W Product Size L×W×H(mm) 700X520X51 Building-in Dimensions A×B (mm) 560X480 Weight and Dimensions are approximate. Because we continually strive to improve our products we... -
Page 8: Product Overview
PRODUCT OVERVIEW Top View Max. 1800 W zone Max. 1200 W zone Glass plate Max. 1000/ Max. 1200 W zone 2200 W zone ON / OFF Control panel Control Panel Timer regulating controls Keylock control Power regulating controls Dual zone ON/OFF control control... -
Page 9: Product Information
Product Information resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. The ceramic cooker hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life. Working Principle This ceramic cooker hob directly employs resistance wire heating, and adjust the output power by the power regulation with the touch controls. -
Page 10: Cooking Tips
QUICK START GUIDE Take care when frying as the oil and fat heat up very quickly, particularly if you’re using Power- Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips •... -
Page 11: Heat Settings
Heat Settings The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the Ceramic hob to find the settings that best suit you. Heat setting Suitability •... -
Page 12: Product Installation
PRODUCT INSTALLATION Selection of Installation Equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate. -
Page 13: Before Locating The Fixing Brackets
WARNING: Ensuring Adequate Ventilation Make sure the ceramic hob is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unexpectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 25mm from the bottom of the hob. - Page 14 Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture). CAUTIONS 1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2.
-
Page 15: Connecting The Hob To The Mains Power Supply
Connecting the Hob to the Mains Power Supply The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below. 1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. - Page 16 OPERATION INSTRUCTIONS Touch Controls • The controls respond to touch, so you don’t need to apply any pressure. • Use the ball of your finger, not its tip. • You will hear a beep each time a touch is registered. •...
-
Page 17: Finish Cooking
How to Use 1. Start Cooking After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the stat of standby mode. 1. Touch the ON/OFF control. -
Page 18: Locking The Controls
Beware of hot surfaces “H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot. -
Page 19: Timer Control
4. Touching the dual zone control “◎” , you 3. Central section of the dual cooking zone will can activate the outer section as well. switch on. 6. The cooking zone indicator show “ ” and 5. A neon above the dual cooking zone control “... -
Page 20: Using The Timer As A Minute Minder
Using the Timer as a Minute Minder If you are not selecting any cooking zone 1. Make sure the cooktop is turned on. 2. Adjust the timer setting by touch the “-” or “+” control. The minute minder indicator will start NOTE flashing and will show in the timer display. - Page 21 Set one zone 1. Touch the of the corresponding 2. Set the time by touching the or control of the cooking zone you want to set the timer for. timer. 3. Touching the “-” and “+” together, the timer 4. When the time is set, it will begin to count is cancelled, and the “--”...
-
Page 22: Over Temperature Protection
NOTE The red dot next to power level indicator will flash. (set to 5 minutes) (set to 15 minutes) min. timer and the dot of corresponding zone will flash. zone 1# zone 2# NOTE 1. The red dot next to power level indicator will illuminate indicating that zone is selected. 2.. -
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE What? How? Important! • When the power to the cooktop is surface’ indication but the cooking zone Everyday soiling on 2. Apply a cooktop cleaner while the may still be hot! Take extreme care. glass (fingerprints, glass is still warm (but not hot!) •... -
Page 24: Troubleshooting
TROUBLESHOOTING Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center. Problem Possible causes What to do... - Page 25 Failure code Problem Solution Temperature sensor of the NTC failure --open circuit. Replace the display board. Temperature sensor of the NTC failure --short circuit Supply voltage is below the rated voltage. Please inspect whether power supply is normal. Power on after the power supply is normal. Supply voltage is above the rated voltage.
