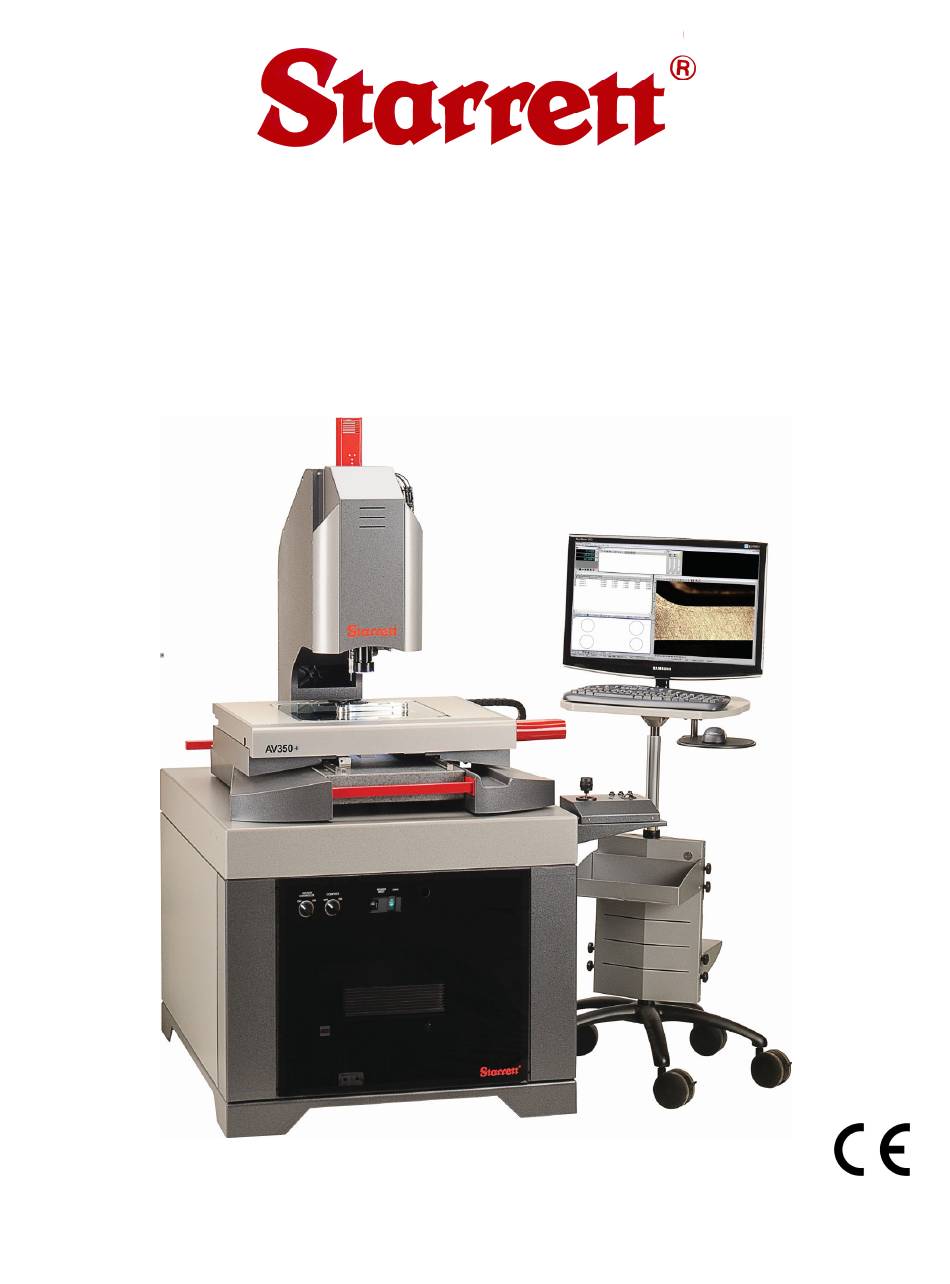

- Page 1 AV300+ and AV350+ Plus Series Multi-Sensor Vision Metrology Systems with QC5300 Software User Manual P/N 3534, Rev. April 27, 2015 Starrett Kinemetric Engineering 26052 Merit Circle, Suite 103 Laguna Hills, CA 92653, USA www.starrettkinemetric.com Phone: (949) 348-1213, Fax: (949) 582-804...
-
Page 2: Table Of Contents
Table of Contents 1. PREFACE ............................... 4 Welcome ............................4 Safety Symbols & Terminology....................4 Warranty ............................4 Regulatory Compliance ....................... 5 Disclaimer of Liabilities ........................ 5 Copyright & Trademark Information .................... 5 2. PRODUCT INTRODUCTION ......................... 6 AV300+ and AV350+ Base System Components ............... 8 2.1.1 X-Y Stages .......................... - Page 3 4.2.1 Magnification Control ....................... 23 4.2.2 Lighting Control ........................ 23 4.2.3 Part Image / Video Probes ....................23 4.2.4 Part View .......................... 23 4.2.5 Measurement Results ...................... 23 4.2.6 Features List ........................23 4.2.7 Programming ........................23 Operating Considerations ......................23 4.3.1 Lighting Considerations ....................
-
Page 4: Preface
Plus Series Vision Metrology System from Starrett. . We are pleased that your search has led you to has led you to Starrett Kinemetric Engineering, a subsidiary of the L.S. Starrett Engineering, a subsidiary of the L.S. Starrett Company. This manual is intended... -
Page 5: Regulatory Compliance
Safety of Laser Products 1.5 Disclaimer of Liabilities The L.S. Starrett Company shall have no liability or responsibility to the customer or any other person or entity with respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by this documentation, or the hardware described in it. -
Page 6: Product Introduction
300 x 150 x 200 mm (12” x 6” x 8”) X-Y-Z measuring range. Model AV350+ is an enhanced version of Starrett’s larger AV350 CNC vision metrology system with an expanded 350 x 350 x 200 mm (14” x 14” x 8”) X-Y-Z measuring range for larger parts. - Page 7 Lighting Control Manual control or software executed by QC5300 5300 Controller. Calibration To NIST traceable artifacts Warranty One year Optional Items Touch probe, laser probe, rotary table, quad ring light , quad ring light, motorized Z-track for quad ring light. System Power 120 Vac ±...
-
Page 8: Av300+ And Av350+ Base System Components
2.1 AV300+ and AV350+ Base System Components Motorized Z-column Motorized optical probe 24” computer Motorized monitor X-Y stage Keyboard Mouse Joystick & track- ball manual control Anthro Cart Pedestal housing: - Lighting Controller - Motion Controller - QC5300 Controller (PC) AV350+ CNC System Components 2.1.1 X-Y Stages Model AV300+ offers a stage for 300 x 150 mm (12”... -
Page 9: Optical Probe Assembly
2.1.3 Optical Probe Assembly The Optical Probe Assembly includes 12:1 zoom optics, a high-resolution digital video camera, a fixed ring light, a coaxial light, and an optional auxiliary lens. The optional 2X Auxiliary Lens (Aux Lens) allows parts inspection at greater magnification and precision. The video camera captures the part image for software analysis and edge detection. -
Page 10: Touch Probe Option
In addition to the components included in the Renishaw touch probe option kit, Starrett In addition to the components included in the Renishaw touch probe option kit, Starrett Kinemetric offers the full range of compatible components available from Renishaw, such as right... -
Page 11: Laser Probe Option
Optimet offers lenses with focal lengths object sizes, Optimet offers lenses with focal lengths from 16 mm to 250 mm. Starrett Kinemetric can include any of these lenses in a system . Starrett Kinemetric can include any of these lenses in a system . -
Page 12: Quad Ring Light Option
6 cm (2-1/4”) for the manual Z-track and 10 cm (4”) for the motorized Z-track. The manual Z-track is shipped with the Quad Ring Light unless the motorized Z-track is ordered. The latter is re- commended by Starrett since it allows repeatable lighting under computer control. Rotary Stage Options 2.1.15 Two precision rotary stages are available as options: a 100 mm stage and a 150 mm stage. -
Page 13: Environmental Considerations
100 mm stage and ±160° for the 150 mm stage. Positioning accuracy is 0.09° peak-to- peak, 0.05° goal. Main spindle run-out TIR is 5 µm 2.2 Environmental Considerations Starrett Vision Metrology Systems are factory calibrated under the standard laboratory environ- mental conditions shown below: Specification... -
Page 14: Safety Considerations
Disconnect all power sources prior to moving or working on the ment performance. Disconnect all power sources prior to moving or working on the equipment. Consult Starrett if you hav ment. Consult Starrett if you have any question regarding transporting, using or e any question regarding transporting, using or maintaining maintaining these systems. -
Page 15: Power Control Panel
2.4 Power Control Panel The front of the pedestals for the AV300+ and AV350+ systems includes power distribution panel with three power switches: 1) a main power switch for the entire system, 2) a two-position rotary power switch for the QC5300 Controller (PC), and 3) a two-position rotary power switch for the 3-Axis Servo Motion Controller. - Page 16 14 x 14 AV350+ Stage Tooling Plate Diagram - 16 -...
-
Page 17: Installation
INSTALLATION Your metrology system was carefully secured in a custom crate for stability and protection during shipment. Exercise care in handling the shipping crate, as excessive force or shock may damage its delicate contents. 3.1 Required Tools The following items will be required to uncrate and install the metrology system: 1. -
Page 18: Equipment Placement
3.7 Country Power Setting Country Power Setting Starrett AV300+ and AV350+ AV300+ and AV350+ Metrology Systems are factory set 115V or 230V AC factory set 115V or 230V AC power, depending on the destination destination country. -
Page 19: Electrical Connections, Motion Amplifier Unit
3.9 Electrical Connections, Motion Amplifier Unit Label on Motion Cable Label on Cable Label on Cable Destination Amplifier Unit Amplifier End Other End X, Y or Z DRIVE X, Y, Z M3 on QC5300 PC COMMS LIMITS OUT M29 M8 on QC5300 PC CNC INPUT M20 M10 on QC5300 PC JOYSTICK M19... - Page 20 Connection Diagram, Basic AV300+ - 20 -...
-
Page 21: Operation
OPERATION 4.1 CNC Operation 4.1.1 Power Switches The AV300+ and AC350+ systems are CNC systems that are configured via the QC5300 Controller, which is a PC (computer). Steps to properly power on the CNC system: 1. Place the Computer Power and Motion Controller switches to their left rotary (OFF) position. 2. -
Page 22: Image Focus Control
4.1.4 Image Focus Control The Z-axis stage control adjusts the image focus. Focus is also partly dependent on magnification. See the General Operation Considerations section below for tips on best adjustment of focus and magnification. The Z axis is controlled by the joystick’s center knob; see Figure 3 - 6. 4.1.5 Lighting Control In CNC systems, light intensity is adjusted in software via the QC5300 Controller. -
Page 23: Magnification Control
4.2.1 Magnification Control Video magnification is controlled via preset levels. These are configured during system calibration to precisely control Field-of-View measurements at each magnification. Ten preset magnification levels are available via buttons labeled LO, M2, M3, M4, M5, M6, M7, M8, M9, HI at the top of the video window. -
Page 24: Magnification Considerations
Options are available from Starrett Kinemetric for off available from Starrett Kinemetric for off-the-shelf, semi-custom or custom fixturing. Please contact custom or custom fixturing. Please contact Starrett Kinemetric sales with your requirements. -
Page 25: Initial Setup
(such as those on Starrett’s MAG checker), and measure the features utilizing the system controls. MAG checker), and measure the features utilizing the system controls. Once MAG checker), and measure the features utilizing the system controls. -
Page 26: System Maintenance
Starrett zoom optics are designed to maintain parfocality through designed to maintain parfocality through- out the available magnification magnification range. -
Page 27: Parcentricity
5. While observing the feature, slowly adjust the magnification lower. Verify that the feature remains focused as the magnification is lowered. 6. Report any observed discrepancy. If the error is verified, contact your Starrett representative for authorized service. 5.2.2 Parcentricity Parcentricity describes the condition wherein a feature will remain at the optical center of the video image throughout the magnification range. -
Page 28: Calibration Verification
A calibration verification standard artifact is available from Starrett authorized distributors or directly from the Starrett service department. Calibration should also be verified after the system has been serviced or moved. The following is a brief description of the steps recommended for the verification of your machine. -
Page 29: Cleaning
Calibration Error Chart Example 5.4 Cleaning To the degree possible, the o the degree possible, the system should be kept in a clean environment, away from di a clean environment, away from dirt, dust, oil and debris which could affect system performance or degrade the system affect system performance or degrade the system’s mechanical and s mechanical and electronic parts. -
Page 30: Cleaning Mechanical Parts
Most critical critical components are covered and require no user service. Should the stage or column mechanics require service, please contact your age or column mechanics require service, please contact your Starrett represen tarrett representative. 5.5 Lubrication Every 6 months, lead-screws screws may be lubricated with a small amount of Tri-Flow®... -
Page 31: Bulb Replacement (Fiber-Optic Lighting)
5.7 Bulb Replacement (Fi (Fiber-optic Lighting) NOTE: The ligh lights of a fiber-optic metrology system generate heat. T To preserve lamp life and reduce unnecessary heat buildup, turn the lights down when the lights down when the system is not in use. WARNING: Power ower the system down properly and unplug the unit from properly and unplug the unit from the power... -
Page 32: Periodic Calibration And Maintenance Service
10. Replace the cover and properly tighten the retaining screws. 11. Plug the unit in and power the system on to check proper bulb function. 12. If further assistance is required, please contact your Starrett dealer or the factory. Eject Bulb Insert New Bulb 5.8 Periodic Calibration and Maintenance Service... -
Page 33: Glossary
GLOSSARY The following terms may have additional meanings. The definitions that follow are in context of the Starrett Vision Metrology Systems. Accuracy A statement of the maximum error that the system will produce when measur- ing a true standard. Resolution A statement of the least significant digit to which a physical quantity can be read. - Page 34 Pixel A picture element. Term used to describe the individual light detectors of a CCD sensor and the individual light emitters of a video monitor. The spacing and number of pixels determines the resolution of a video metrology system. Z-Track An optional motorized rail which can be attached to the video probe assembly to support the optional quad ring light.
