Chesterton 10K Series Installation Instructions

10K, 22K, 23K
Series U-cup Seals
SEAL INSTALLATION - CYLINDER APPLICATION
• Clean the equipment thoroughly; remove sharp edges and burrs before installing sealing components
• Protective fixtures, materials or devices should be used whenever the seal has to pass over threads,
sharp edges, grooves or similar surface profiles
• Installation tools should be soft metal, wood or plastic also free of sharp edges.
The use of screwdrivers and other similar tools should be avoided
• Lubricants are acceptable and in most cases desirable to ease installation. The hydraulic
medium used in the system can often be used to lubricate the seal

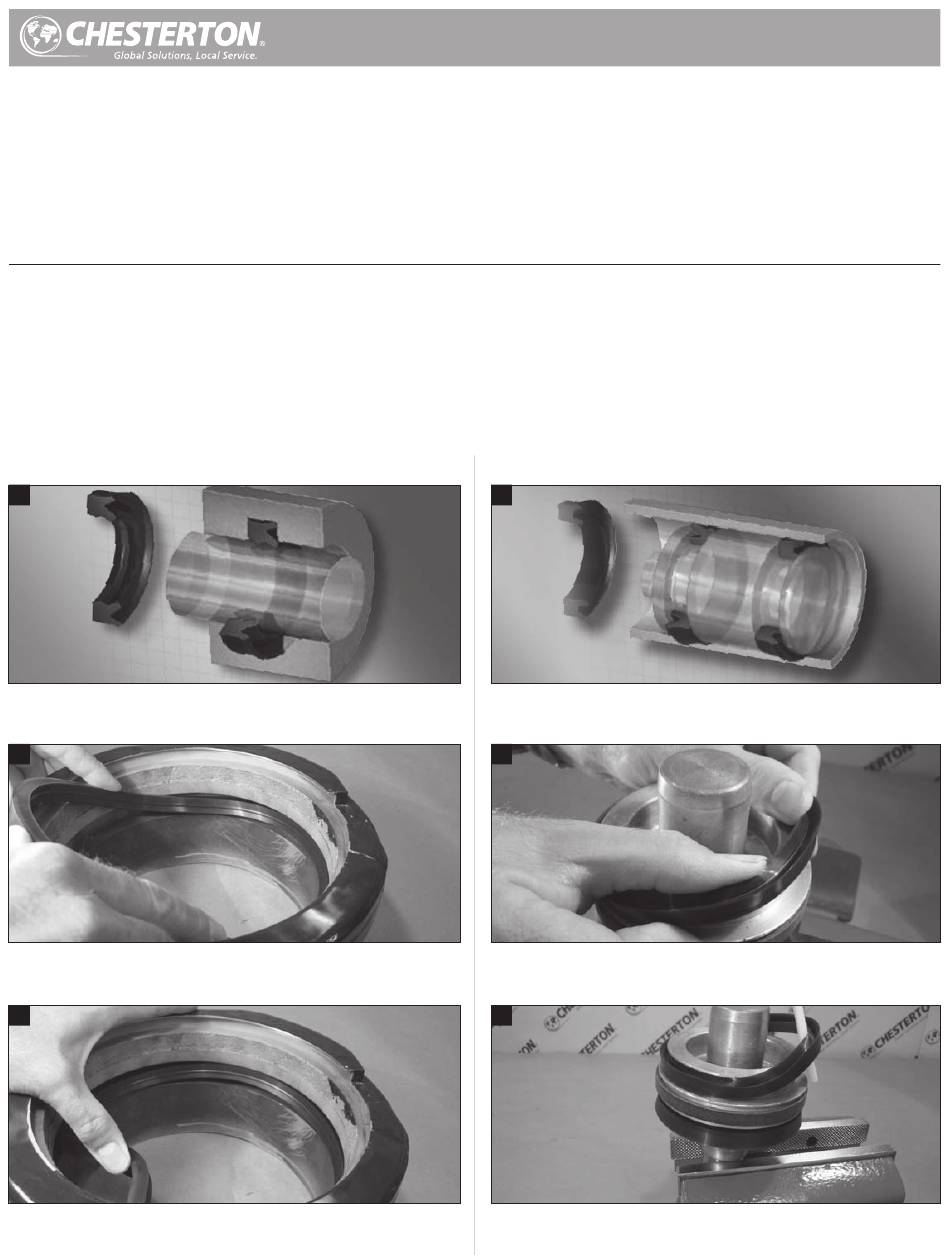

ROD SEAL
1
Rod / Gland Seal Orientation
2
Locate the seal into the groove.
3
Push seal down and towards center of the gland. Release force
and allow seal to snap into groove.
ENGINEERED POLYMER SEALS
INSTALLATION INSTRUCTIONS
PISTON SEAL
1
Bi-directional Piston Seal Orientation
2
Hold piston securely, locate seal into groove and use finger
pressure to begin stretching over piston head.
3
Use a non-metallic tool to assist stretching the seal fully
over the piston.
