DeWalt D25415 Service Training

DeWalt D25415 Service Training

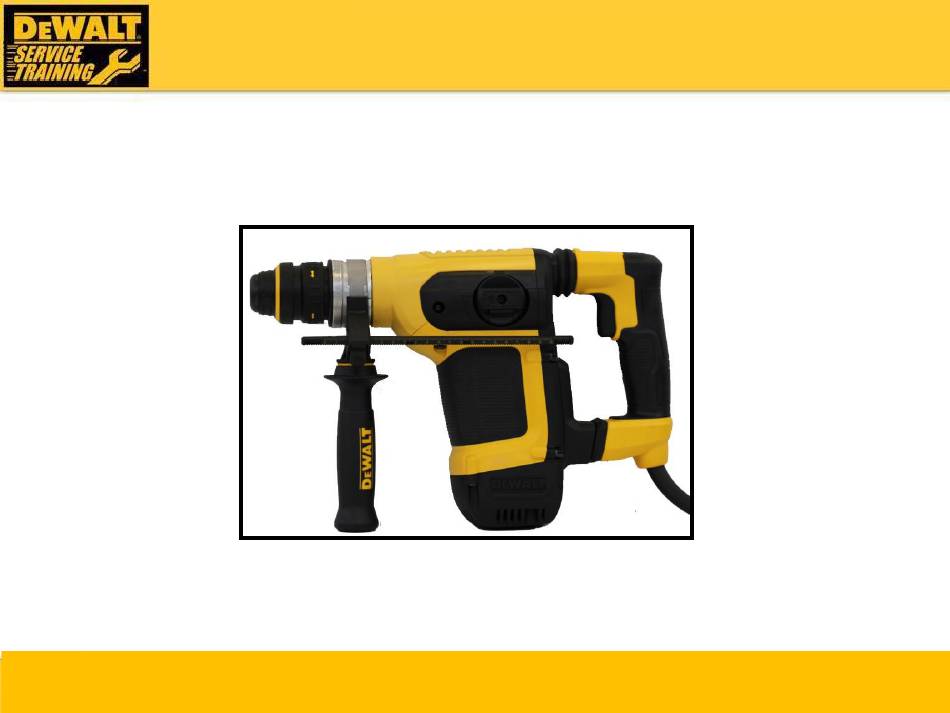

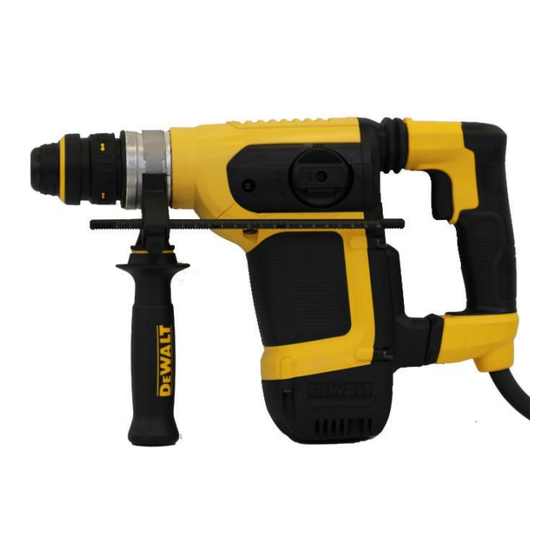

Fully featured combi unit
Hide thumbs Also See for D25415:

Advertisement

Quick Links

Download this manual
D25415 4kg Type 2 - GIRO Improvements
H
H

Advertisement

loading
Need help?

Need help?

Do you have a question about the D25415 and is the answer not in the manual?

Questions and answers

Related Manuals for DeWalt D25415

Summary of Contents for DeWalt D25415

  • Page 1 D25415 4kg Type 2 - GIRO Improvements...
  • Page 2 Fully Featured Combi Unit D25415k daptive rill ontrol Two user inputs required to activate the system: 1) Absolute Angle Exceeds 50° 2) Angular Velocity Exceeds 500° / Second Adaptive Drill Control (ADC) Electronic Self Rotation Avoidance  If sensors detect jamming of the drill bit, the power will be reduced to avoid self rotation of the tool...
  • Page 3 How a giro sensor works How does the Gyro works in the ADC Gyro is continuously measuring velocity by using the Coriolis effect and converts that into an specific voltage which get sampled by a µC If the system exceeds specified limits it sends an signal to the GACC which reduces the output torque of the system...
  • Page 4 How a giro sensor works Axis of Rotation When things rotate around an axis they have what’s called angular velocity. A spinning wheel can be measured in revolutions per second (RPS) or degrees per second (°/s). Note that the z axis of the gyro below aligns with the axis of rotation on the wheel A triple axis MEMS gyroscope, similar to the one pictured above (ITG-3200),...
  • Page 5 Axis of Rotation Gyros are often used on objects that are not spinning very fast at all. Aircrafts (hopefully) do not spin. Instead they rotate a few degrees on each axis. By detecting these small changes gyros help stabilize the flight of the aircraft.
  • Page 6 Durability of pneumatic hammers heavily depends upon CLEANESS during service...
  • Page 7 Before Repair Make sure your working area is in a appropriate condition. Work bench must be tidied up and clean. Only tools and service tools which are needed for repair should lie on the work bench...
  • Page 8 Before Repair Before repair and service Follow the safety instructions...
  • Page 9 Safety Instructions - Wear safety goggles or other eye protection during operating the unit. - Wear safety shoos during the whole repair procedure. - Do not attempt to operate this tool without holding it with both hands. - Never lay the tool down until the bit has come to a complete stop. - Keep the power cord away from the rotating bit.
  • Page 11 ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH CHECK ÜBERPRÜFEN CONTROLLARE CONTROLER COMPROBAR VERIFIQUE CONTROLEREN ATENÇÃO! ATTENTION ! ACHTUNG ATTENZIONE ATTENTION ! ATENCION ATTENTIE ! TOURNEZ DANS LE GIRAR SENTIDO ANTI- TURN COUNTER DREHEN GEGEN GIRARE IN SENSO SENS INVERSE DES GIRO IZQUIERDA HORARIO DRAAI LINKSOM...
  • Page 12 ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH HERSTELLUNGS- DATA DI FECHA CÓDIGO DE 2013 33- DATE CODE DATE CODE DATUM CODE DATUM PRODUZIONE FABRICACION PRODUÇÃO LIFT OVER ANHEBEN SOLLEVARE SOULEVEZ LEVANTAR LEVANTAR SOBRE A OPHEFFEN UTILISEZ UN USE STATIC GEBRUIK ANTI - ANTISTATIK MATTE USARE I DISPOSITIVI EQUIPEMENT DE...
  • Page 13 ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH SCOLLEGARE DISCONNECT TRENNEN QUESTION ? FRAGE? DOMANDE? QUESTION ? ¿PREGUNTA? PERGUNTA? VRAGEN? PROTECTIVE INSULATION SCHUTZISOLIERUNG GO TO WEB SITE GEHE ZUR WEB VISITARE IL SITO ALLEZ SUR NOTRE VISITA LA PAGINA PARA MAIS GA NAAR ONZE WWW.2HELP FOR MORE...
  • Page 14 ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH REVERSE RECHTS LINKS MODE LAUF SEEGERRING CIRCLIP PLIERS EXTERNAL ZANGE WELLE SEEGERRING CIRCLIP PLIERS ZANGE BOHRUNG INTERNAL ASSEMBLY ZUSAMMENBAU SCHLITZ- PLATTE FLAT DESTORNILLADOR SCHRAUBEN- CACCIAVITE PIATTO TOURNEVIS PLAT CHAVE DE FENDA SCHROEVENDRAAI SCREWDRIVER PLANO DREHER...
  • Page 15 2013 33-59...
  • Page 16 VDE 0701 BVG A2 3sec 2500V...
  • Page 18 1;2;3;4 …...
  • Page 20 4x TX20 4x18...
  • Page 22 15mm...
  • Page 24 2x TX25 5x18 4x TX20 4x18...
  • Page 25 2x TX10 3x12...
  • Page 26 1x TX20 4x18 1x TX20 3x10...
  • Page 28 1x TX20 3x10...
  • Page 29 4x TX25 5x18...
  • Page 30 3x TX20 4x18...
  • Page 32 3x TX25 5x18...
  • Page 39 1;2;3;4 …...
  • Page 40 1;2;3;4 …...
  • Page 46 1x TX20 4x12...
  • Page 52 8 mm...
  • Page 55 Rear Handle...
  • Page 56 Rear Handle...
  • Page 57 Rear Handle...
  • Page 58 Rear Handle...
  • Page 59 Rear Handle...
  • Page 60 Rear Handle...
  • Page 61 Rear Handle...
  • Page 62 Rear Handle...
  • Page 63 Rear Handle...
  • Page 64 Rear Handle...
  • Page 65 Rear Handle...
  • Page 66 Rear Handle...
  • Page 67 Rear Handle...
  • Page 68 Rear Handle...
  • Page 70 4Kg Hammer Type 2 improvements N179781 N511816 N511566 N511566 N106174 N181843 N536059 Service Pak 2...
  • Page 71 4Kg Hammer Type 2 improvements...
  • Page 72 Lubrication 5g Paragon...
  • Page 73 Lubrication Paragon 5g...
  • Page 74 Lubrication GLK 5g...
  • Page 75 Lubrication Paragon 15g...
  • Page 76 Lubrication GLK 10g + Paragon 10g GLK 1g...
  • Page 77 Assembling...
  • Page 78 Assembling...
  • Page 79 Assembling...
  • Page 80 Assembling...
  • Page 81 After Repair VDE 0701 BVG A2 3sec 2500V...
  • Page 82 After Repair WWW.2HELPU.COM...
  • Page 83 After Repair Remember: the next check will be made by your customer...
