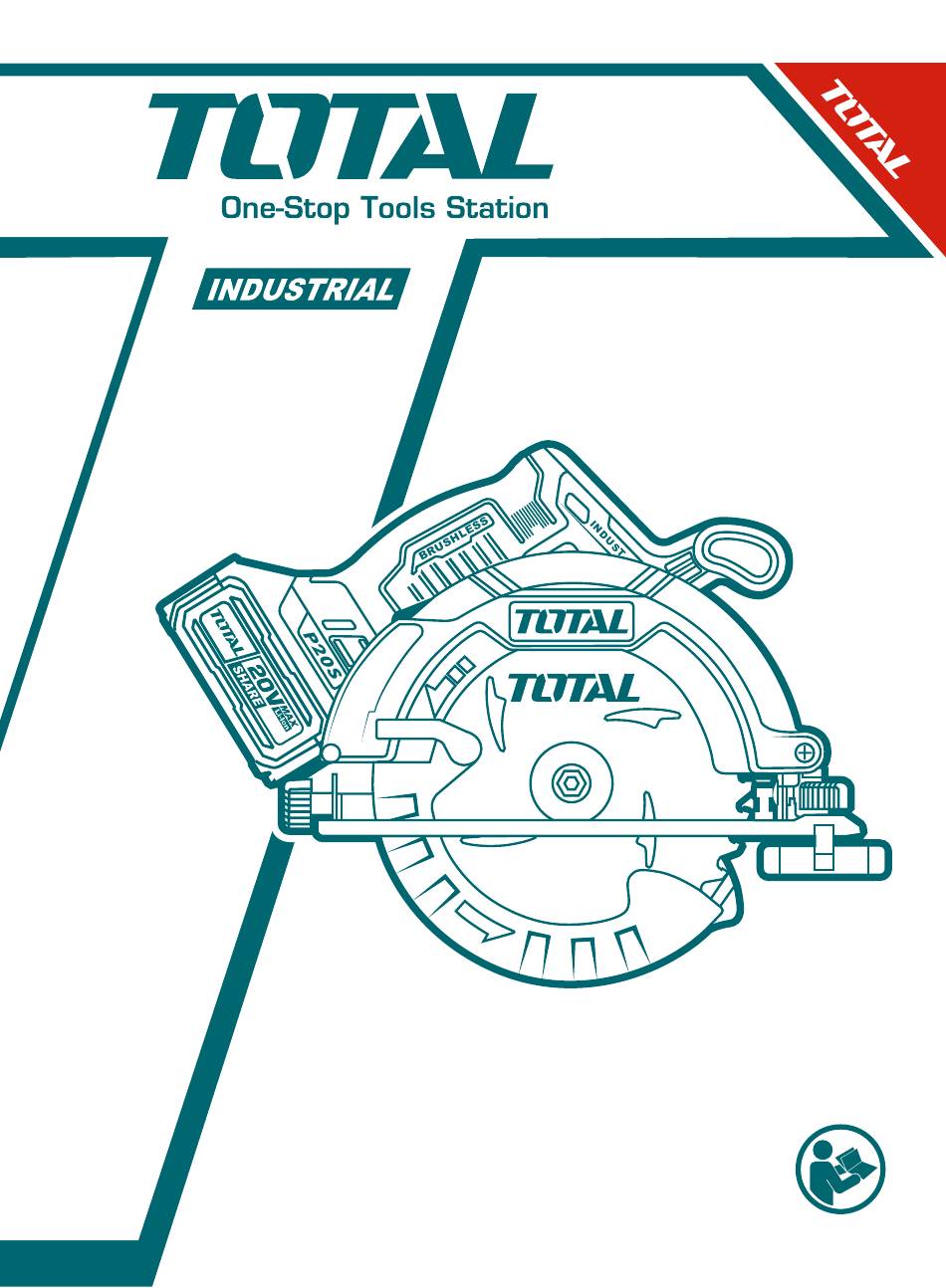

  • Page 1 PRODUCT MANUAL LITHIUM-ION CIRCULAR SAW TSLI1851 UTSLI1851 TSLI1851xy UTSLI1851xy x(blank,1,2,3,4,5,6,7,8,9,E,S,A,M) y(blank,-1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M)

  • Page 2: General Safety Warnings

    | English Original Instructions GENERAL SAFETY WARNINGS ⚠ Warning! Work area safety Keep work area clean and well lit. Cluttered and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust...
  • Page 3 | English Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool.
  • Page 4 | English operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories, and tool bits etc.
  • Page 5 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. Caution: only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
  • Page 6 | English Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life. Charge the battery cartridge with room temperature at 10°C-40°C (50°F- 104°F). Let a hot battery cartridge cool down before charging it. Charge the battery cartridge if you do not use it for a long period (more than six months).
  • Page 7 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

  • Page 8: Additional Safety Warning

    | English ADDITIONAL SAFETY WARNING Safety instructions for all saws Cutting procedures ⚠ Danger Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
  • Page 9 | English of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces.
  • Page 10 | English b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.

  • Page 11: Residual Risks

    | English of the blade must be wider than the thickness of the riving knife. b) Adjust the riving knife as described in this instruction manual. Incorrect spacing, positioning and alignment can make the riving knife ineffective in preventing kickback. c) Always use the riving knife except when plunge cutting.

  • Page 12: Technical Specifications

    | English SPECIFICATIONS Technical specifications TSLI1851, TSLI1851xy, UTSLI1851, UTSLI1851xy x(blank,1,2,3,4,5,6,7,8,9,E,S,A, x(blank,1,2,3,4,5,6,7,8,9,E,S,A, Model NO. y(blank,-1,-2,-3,-4,-5,-6,-7,-8,- y(blank,-1,-2,-3,-4,-5,-6,-7,-8,- 9,E,S,A,M) 9,E,S,A,M) Blade diameter ˝ 4 Max. ˝ 5 90° cutting depth ˝ 4 45° No load 4800/min speed(/min) Rated voltage Due to our continuing program of research and development, the specifications •...
  • Page 13 | English ⚠ Warning! Only use original battery pack and battery charger as below for this power tool: x (blank, 1, 2, 3, 4, 5, 6, 7, 8, 9, E, S, A, M) y (blank, -1, -2, -3, -4, -5, -6, -7, -8, -9, E, S, A, M) TFBLI2001 TFBLI2002 TFBLI2053...
  • Page 14 | English OPERATION PICTURE...
  • Page 15 | English OPERATION PICTURE...
  • Page 16 | English FUNCTION DESCRIPTION Adjusting depth of cut (see Figure A) Figure A: 1. Lever ⚠ Caution After adjusting the depth of cut, always tighten the lever securely. Loosen the lever on the side of the rear handle and move the base up or down. At the desired depth of cut, secure the base by tightening the lever.

  • Page 17: Electric Brake

    | English For your safety, this tool is equipped with lock-off lever which prevents the tool from unintended starting. Never use the tool if it runs when you simply pull the switch trigger without pressing the lock-off lever. Return tool a service center for proper repairs Before further usage.
  • Page 18 | English Be sure the blade is installed with teeth pointing up at the front of the tool. Use only the wrench to install or remove the blade. To remove the blade, press the shaft lock so that the blade cannot revolve and use the wrench to loosen the hex bolt counterclockwise.

  • Page 19: Operation

    | English OPERATION ⚠ Caution (see Figure I) Always insert the battery cartridge all the way until it locks in place. If you • can see the red part on the upper side of the button, it is not locked completely.
  • Page 20 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
  • Page 21 TOTAL TOOLS WORLD MADE IN CHINA T0623.V01 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.
