AN-1

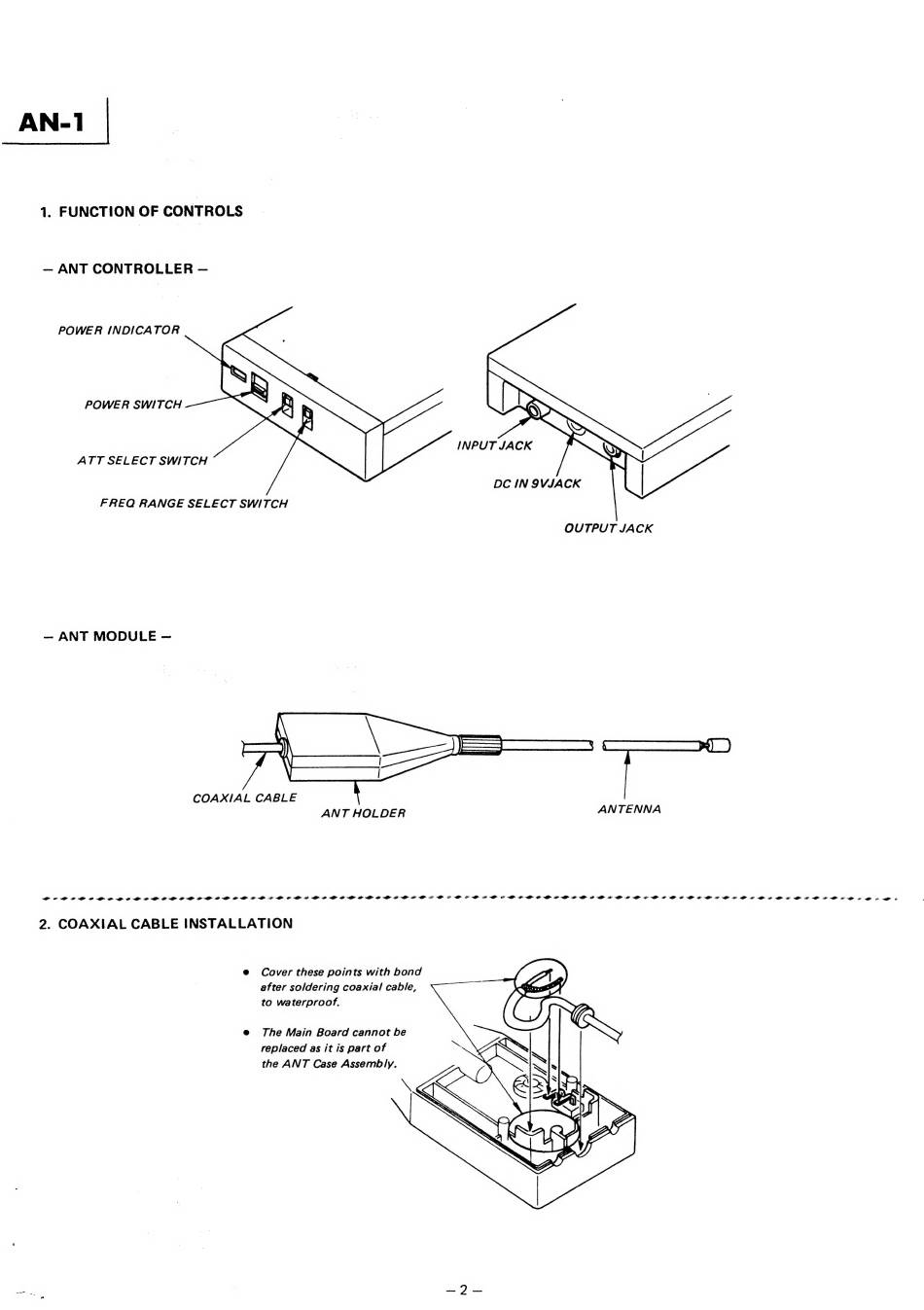

1. FUNCTION OF CONTROLS
— ANT CONTROLLER —
POWER INDICATOR
POWER SWITCH
INPUT JACK
ATT SELECT SWITCH
DC IN 9VJACK
FREQ RANGE SELECT SWITCH
OUTPUT JACK
— ANT MODULE —
COAXIAL CABLE
ANT HOLDER ANTENNA
PA DPA BD ABA BPN BPA GAG ADAG ADAM DIA DADA DAD AGS ADA DAD HOD NOW LH AN DA HIN BIA DAD A DAD MAD AD AP NOGA PMS WE APH OM OKH OH OU OH OK ON Om
2. COAXIAL CABLE INSTALLATION
@ Cover these points with bond
after soldering coaxial cable,
to waterproof.
e The Main Board cannot be
replaced as it is part of
the ANT Case Assembly.
