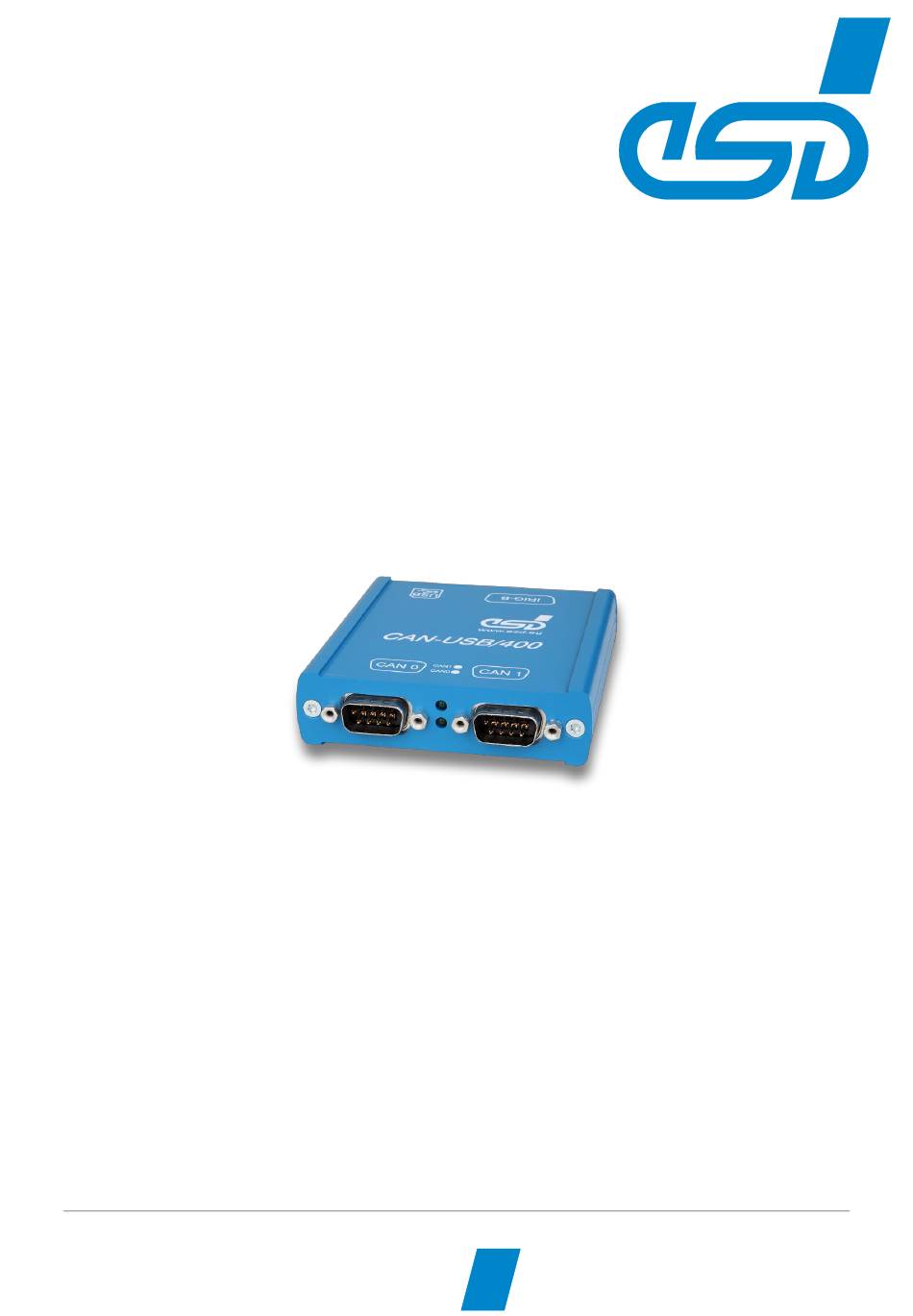

CAN-USB/400
Dual-Channel CAN FD or CAN CC Modules
for connecting with USB,
optional with I/Os and IRIG-B Input
CAN-USB/400-IRIG-B
(C.2069.66)
Hardware Manual
For Product
C.2069.64, C.2069.04
C.2069.66, C.2069.06
CAN-USB/400
Hardware Manual Doc.-Nr.: C.2069.21 / Rev 1.5
Page 1 of 36
esd electronics gmbh
Vahrenwalder Str. 207 • 30165 Hannover • Germany
http://www.esd.eu
Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68
Advertisement
Table of Contents
Related Manuals for ESD CAN-USB/400
Summary of Contents for ESD CAN-USB/400
- Page 1 C.2069.66, C.2069.06 CAN-USB/400 Hardware Manual Doc.-Nr.: C.2069.21 / Rev 1.5 Page 1 of 36 esd electronics gmbh Vahrenwalder Str. 207 • 30165 Hannover • Germany http://www.esd.eu Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68...
- Page 2 Links esd electronics gmbh assumes no liability or guarantee for the content of Internet pages to which this document refers directly or indirectly. Visitors follow links to websites at their own risk and use them in accordance with the applicable terms of use of the respective websites.
-
Page 3: Document Information
Note on CAN FD inserted 2018-03-27 Declaration of Conformity updated 2020-06-04 Safety instructions (Page 5) revised Description of CAN-USB/400-FD-IRIG-B added 1., 3., 10. Chapters revised 2025-02-12 Description of CAN CC and CAN FD ports merged Declaration of Conformity has been updated Technical details are subject to change without further notice. - Page 4 This NOTICE statement contains the general mandatory sign and gives information that must be heeded and complied with for a safe use. INFORMATION INFORMATION Notes to point out something important or useful. Page 4 of 36 Hardware Manual Doc.-Nr.: C.2069.21 / Rev. 1.5 CAN-USB/400...
-
Page 5: Qualified Personnel
● The galvanic isolation of the CAN-USB/400 has only functional tasks and is not a protection against hazardous electrical voltage. ● The CAN-USB/400 is a device of protection class III according to DIN EN IEC 61140 and may only be operated on supply circuits that offer sufficient protection against dangerous voltages. -
Page 6: Intended Use
It is the responsibility of the user of the device to ensure that the necessary safety precautions are taken for the network interface of the device. -
Page 7: Table Of Contents
Table of Contents Safety Instructions .......................... 5 Overview ............................9 About this Manual ......................9 Description of CAN-USB/400(-FD) ..................9 Description of CAN-USB/400(-FD)-IRIG-B ..............10 Glossary ......................... 10 Case View with LEDs and Connectors ................... 11 Indicator States of CAN LEDs ..................12 Installing and Uninstalling Hardware .................. - Page 8 Table 9: Data of the Miscellaneous I/Os ..................17 Table 10: Data of the optional microcontroller ................17 Table 11: Recommended cable lengths at typical bit rates (with esd-CAN interfaces) ....28 Table 12: License and Identifier ....................33 Table 13: Order information hardware ................... 35 Table 14: Order information software ....................
-
Page 9: Overview
ISO-compliant CAN FD and/or CAN 2.0 A/B messages. The CAN-USB/400-FD comes with two CAN FD ports with bit rates up to 8 Mbit/s and the basic CAN CC variant (CAN-USB/400) with two CAN CC ports with bit rates up to 1 Mbit/s. -
Page 10: Description Of Can-Usb/400(-Fd)-Irig-B
Microcontroller Figure 2: Block circuit diagram of CAN-USB/400(-FD)-IRIG-B In addition to the standard features of the CAN-USB/400 module, the CAN FD variant CAN- USB/400-FD-IRIG-B and the CAN CC variant CAN-USB/400-IRIG-B come with IRIG-B inputs. The analog and digital IRIG-B inputs provide synchronized timestamps, ideal for use with ARINC825. -
Page 11: Case View With Leds And Connectors
Case View with LEDs and Connectors 2 Case View with LEDs and Connectors Figure 3: CAN connectors and LEDs (CAN-USB/400-IRIG-B view) Figure 4: USB and IRIG-B (CAN-USB/400-IRIG-B view) See also page 19 for signal assignment of the CAN connectors. NOTICE Read chapter “Installing and Uninstalling Hardware”... -
Page 12: Indicator States Of Can Leds
Case View with LEDs and Connectors 2.1 Indicator States of CAN LEDs The CAN-USB/400-Modules come with two green CAN LEDs (CAN0, CAN1). See Figure 3 on page 11 for the position of the LEDs. The Special Indicator States are indicated by both LEDs together. -
Page 13: Installing And Uninstalling Hardware
CAN-USB/400 is to be integrated. → The CAN-USB/400 is a device of protection class III according to DIN EN IEC 61140 and may only be operated on supply circuits that offer sufficient protection against dangerous voltages. -
Page 14: Uninstalling The Hardware
Observe the safety instructions at the beginning of chapter 3 Make sure that all connected interfaces and power supply are switched off. Disconnect the CAN-USB/400 from the connected interfaces. Page 14 of 36 Hardware Manual Doc.-Nr.: C.2069.21 / Rev. 1.5... -
Page 15: Technical Data
Power supply Nominal voltage: 4.5 ... 5.5 V voltage Current consumption: max. 350 mA USB type B connector CAN0, CAN1 2x 9-pin DSUB pin-contacts Connectors CAN-USB/400(-FD)-IRIG-B only: IRIG-B 15-pin DSUB socket-contacts Ambient temperatures Temperature operating: 0...55 °C range storage: -40...70 °C transport: -40...70 °C... -
Page 16: Can Ports
Technical Data 4.3 CAN Ports INFORMATION The CAN FD ports are only available on CAN-USB/400-FD (C.2069.64) and CAN- USB/400-FD-IRIG-B (C.2069.66). The CAN FD ports are fully backwards compatible with CAN CC environments. CAN-USB/400-FD (C.2069.64), CAN-USB/400-FD-IRIG-B (C.2069.66): 2x CAN FD Number of CAN ports CAN-USB/400 (C.2069.04),... -
Page 17: Sync I/Os
4.4.2 Sync I/Os Number of I/Os 2 (SYNC1+/-, SYNC2+/-) Interface RS-485 trigger channels, Programmable as input or output Timestamp synchronisation of CAN-USB/400(-FD)-IRIG-B modules Evaluation Galvanic isolation None EMC / conformity This interface is not examined with regard to the electromagnetic compliance and immunity. -
Page 18: Software Support
- Windows 32-bit or 64-bit system - esd CAN driver installed As part of the esd software development kit (CAN SDK) of the NTCAN-API the CAN Tools are included in delivery of the CAN-CD. The CAN SDK can also be downloaded free-of-charge from the esd website. -
Page 19: Connector Assignments
Reference potential Connector housing... Connector housings of CAN0, CAN1, USB and (if applicable) IRIG-B are connected to each other and via 10 nF to both CAN_GNDs of CAN0 and CAN1 CAN-USB/400 Hardware Manual Doc.-Nr.: C.2069.21 / 1.5 Page 19 of 36... -
Page 20: Can (Dsub9, Pin Contacts)
Connector housing... Connector housings of CAN0, CAN1, USB and (if applicable) IRIG-B are connected to each other and via 10 nF to both CAN_GNDs of CAN0 and CAN1 Page 20 of 36 Hardware Manual Doc.-Nr.: C.2069.21 / Rev. 1.5 CAN-USB/400... -
Page 21: Irig-B (Dsub15, Socket-Contacts)
Connector Assignments 5.3 IRIG-B (DSUB15, Socket-Contacts) INFORMATION The IRIG-B, Trigger and I/O-option is only available on CAN-USB/400-IRIG-B (C.2069.06) and CAN-USB/400-FD-IRIG-B (C.2069.66). Device connector: 15-pin DSUB connector, socket-contacts Pin Position: Pin Assignment: Signal Signal TRIG0 TRIG1 TRIG2 TRIG3 TRIG4 TRIG5 SYNC1-... -
Page 22: Figure 5: Irig-B Wiring Guidelines
Figure 5: IRIG-B wiring guidelines Use a shielded twisted pair cable to connect the IRIG-B interfaces. The housing of the DSUB15 connector of the CAN-USB/400 must be connected to the cable shield. The cable shield is intended to be connected to functional earth, via the host system or via the remote station or via a separate connection of the shield. -
Page 23: Correct Wiring Of Galvanically Isolated Can Networks
Therefore, the maximum achievable number of nodes, bus lengths and stub lengths may differ from the theoretically possible number! esd has limited its recommendations for CAN wiring to the specifications of ISO 11898-2. A description of the special features of the derived specifications CANopen, ARINC825, DeviceNet,... -
Page 24: Light Industrial Environment (Single Twisted Pair Cable)
6.2.1 General Rules NOTICE esd grants the EU Conformity of the product if the CAN wiring is carried out with at least single shielded single twisted pair cables that match the requirements of ISO 11898-2. Single shielded double twisted pair cable wiring as described in chapter 6.3 ensures the EU Conformity as well. -
Page 25: Cabling
In principle the CAN bus must be realized in a line. The nodes are connected to the main • CAN bus line via short cable stubs. This is normally realised by so called T-connectors. esd offers the CAN-T-Connector (Order No.: C.1311.03) If a mixed application of single twisted and double twisted cables cannot be avoided, •... -
Page 26: Heavy Industrial Environment (Double Twisted Pair Cable)
6 Select a working combination of bit rate and cable length. 7 Keep away CAN cables from disturbing sources. If this cannot be avoided, double shielded cables are recommended. Figure 8: CAN wiring for heavy industrial environment Page 26 of 36 Hardware Manual Doc.-Nr.: C.2069.21 / Rev. 1.5 CAN-USB/400... -
Page 27: Device Cabling
CAN bus line via short cable stubs. This is usually realised via so called T-connectors. When using esd's CAN-T-Connector (order no.: C.1311.03) in heavy industrial environment and with four-wire twisted cables, it must be noted that the shield potential of the conductive DSUB housing is not looped through this type of T-connector. -
Page 28: Electrical Grounding
Table 11: Recommended cable lengths at typical bit rates (with esd-CAN interfaces) Optical couplers are delaying the CAN signals. esd modules typically achieve a wire length of 37 m at 1 Mbit/s within a proper terminated CAN network without impedance disturbances, such as those caused by cable stubs >... -
Page 29: Examples For Can Cables
CiA 106: “Connector pin-assignment recommendations ”. 6.6 Examples for CAN Cables esd recommends the following two-wire and four-wire cable types for CAN network design. These cable types are used by esd for ready-made CAN cables, too. -
Page 30: Can Troubleshooting Guide
If the determined value is higher than 70 Ω, please make sure that: • All CAN_H and CAN_L lines are correctly connected. • Two terminating resistors of 120 Ω each are connected to your CAN network (one at each end). Page 30 of 36 Hardware Manual Doc.-Nr.: C.2069.21 / Rev. 1.5 CAN-USB/400... -
Page 31: Electrical Grounding
Measure the DC voltage between CAN_L and CAN_GND, measuring point (See “Simplified diagram of a CAN network” on previous page). Expected result: The measured voltage should be between 2.0 V and 3.0 V. CAN-USB/400 Hardware Manual Doc.-Nr.: C.2069.21 / 1.5 Page 31 of 36... -
Page 32: Can Transceiver Resistance Test
Another indication of a defective CAN transceiver is a very high deviation of the two measured input resistances (>> 200 %). 7.5 Support by esd If you have followed the troubleshooting steps in this troubleshooting guide and still cannot find a solution to your problem, our support team can help. -
Page 33: Software Licenses
8 Software Licenses NOTICE The software from esd and from third parties used in the CAN-USB/400 is subject to the license terms of the respective authors or rights holders. CAN-USB/400 may only be used in accordance with these license terms! By using the CAN-USB/400 you agree to the terms of these software licenses. -
Page 34: Declaration Of Conformity
Declaration of Conformity 9 Declaration of Conformity Page 34 of 36 Hardware Manual Doc.-Nr.: C.2069.21 / Rev. 1.5 CAN-USB/400... -
Page 35: Order Information
Order No. CAN-USB/400-FD Two High-Speed CAN Ports for USB. C.2069.64 with esd Advanced CAN IP-Core (esdACC) CAN-FD capable according to ISO 11898-1:2015 Physical Layer according to ISO 11898, High Speed, galvanically isolated 2x DSUB9 Connector USB 2.0, high-speed 480 Mbit/s Enhanced diagnostic features. -
Page 36: Software
C.2002.21 Table 15: Available Manuals Printed Manuals If you need a printout of the manual additionally, please contact our sales team (sales@esd.eu) for a quotation. Printed manuals may be ordered for a fee. Page 36 of 36 Hardware Manual Doc.-Nr.: C.2069.21 / Rev. 1.5...
