Summary of Contents for Rinnai Pro FINRP50MBNZ

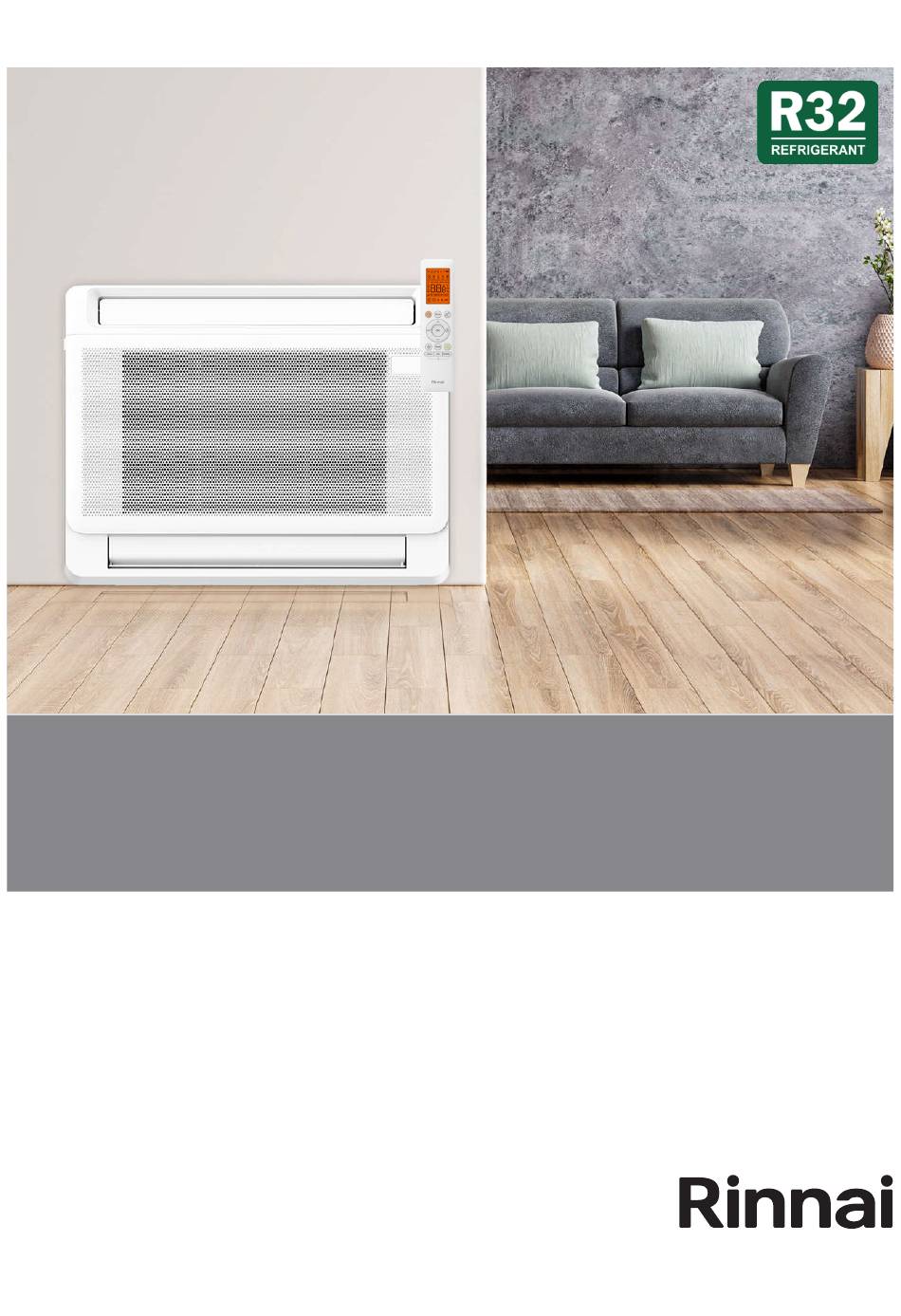

- Page 1 Pro Series Single Split Floor Console Air Conditioner Operation guide...
- Page 2 Warning Improper installation, adjustment, alteration, service and maintenance can cause property damage, personal injury or loss of life. For more information about buying, using, and servicing of Rinnai appliances call: 0800 RINNAI (0800 746 624). Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland...
-
Page 3: Table Of Contents
Check for damaged wires • Clean all filters • Check for leaks • Replace batteries in remote control • Check nothing is blocking the air inlets and outlets For reliable operation Rinnai recommend heat pumps / air conditioners should be serviced annually. -
Page 4: Safety And Important Information
This may cause a a prolonged period of time. fire. If any of the following conditions occur, turn off your unit immediately and contact your installer or Rinnai for advice: • You smell a burning odour •... - Page 5 When moving or relocating the unit, consult a licensed tradesperson for disconnection and re- installation. Genuine Rinnai parts Only use the included accessories, parts, and specified parts for installation. Using non-standard parts can cause water leaks, electrical shock, fire, and cause the unit to fail.
-
Page 6: About Your Unit
About your unit Louvre (air outlet) Displays temperature and error codes Display panel Defrost For 3 secs. when timer on set, or Refrigerant Air inlet swing / silence is turned on connecting (with air filter) pipe Self cleaning Drain hose Louvre (air outlet) When 8 °C heating turned on (frost protection) ECO function activated... -
Page 7: Adjusting Air Flow Direction
• Active clean function The unit temporarily lowers the temperature of the heat exchanger to create frost. This frost forms a layer over the dust, mould, and grease that have accumulated on the heat exchanger. The unit then warms up, causing the frost to melt. As the frost melts, it washes away the contaminants, effectively cleaning the heat exchanger. -
Page 8: Remote Control And Functions
Remote control and functions MODE ON/OFF Scrolls through the Turns the unit on or off. operation modes as follows: TEMP AUTO > COOL > DRY Increase temp. in 0.5 °C > HEAT > FAN increments. Max. temp. is 30 °C. If you press the ECO/GEAR up and down buttons Press this button to... - Page 9 Breeze away Active clean Mode Sleep mode Transmission indicator Follow me Lights up when remote sends a signal to the unit Wireless control Timer on or off Low battery Quiet feature Temperature, timer, fan speed display Displays the set Fan speed temperature by default, fan speed or timer setting Silence...
- Page 10 Fan mode This mode uses the fan to circulate air without changing the room temperature. In this mode swing operations for air direction can still be adjusted. In FAN mode you can’t set the temperature, so no temperature will display on the remote. 1.
- Page 11 Swing function If you press the Swing button the horizontal louvre will swing up and down automatically. To make it stop press the Swing button again. If you continue to hold down the Swing button different airflow directions can be set. The louvre can be moved at a certain range each time you press the button.
-
Page 12: Troubleshooting
Check the following information before making a service call as some performance characteristics are a normal part of operation. If you are still unsure or concerned after reading this section, please contact Rinnai on 0800 746 624. Issue Possible causes... -
Page 13: Multi Room Systems
Sometimes an error code will resolve itself. If not turn the unit off, turn off the mains power to the unit, wait a few minutes, then turn everything back on. If the error code remains contact your installer or Rinnai for advice. Multi Room systems If a multi room system there is one outdoor unit connected to multiple indoor units. -
Page 14: Care And Maintenance
Care and maintenance Before cleaning or maintenance turn off your unit. Pre-season inspection and maintenance, and cleaning of the outdoor unit should be only be done by a licensed service provider. Only use a soft, dry cloth to wipe the unit clean. If the unit is especially dirty, you can use a cloth soaked in warm water to wipe it clean. -
Page 15: Wireless Control
If you are registering and connecting using the App, please refer to the online user guide available on the Rinnai NZ website. Just enter ‘NetHome Plus app’ in the search field. The steps to register and connect are: 1. -
Page 16: Limited Warranty
6 years 6 years The Rinnai NZ heat pump / air conditioner equipment is warranted against defects in design, materials and workmanship for a period of 6 years from the date the equipment is purchased by the original owner. General warranty terms Rinnai reserves the right to make modifications and change specifications and its parts without notice. - Page 17 9. Rinnai reserves the right to have installed product returned to the factory for inspection. 10. Where a system is installed outside the metropolitan area or further than 40 km from a Rinnai NZ accredited installer or authorised service centre, travel and freight charges (inclusive of insurance) shall be the owner’s responsibility.
- Page 18 Any advice or recommendations given by such parties, including advice about product fitness for purpose and overall system design, sizing and application are not the responsibility of Rinnai. This includes but is not limited to the heat load calculations, airflow and system balancing.
-
Page 19: Purchase Details
The website will help guide you as to where this information can be found. Warranty claim Please contact Rinnai as soon as possible after the defect and/or fault has been detected. To make a warranty claim, contact Rinnai on 0800 RINNAI (0800 746 624) or email... - Page 20 Rinnai.co.nz Tel: 0800 746 624 Floor Console operation guide http://www.youtube.com/rinnainz 15315-A I 1-25 http://facebook.com/rinnainz...
