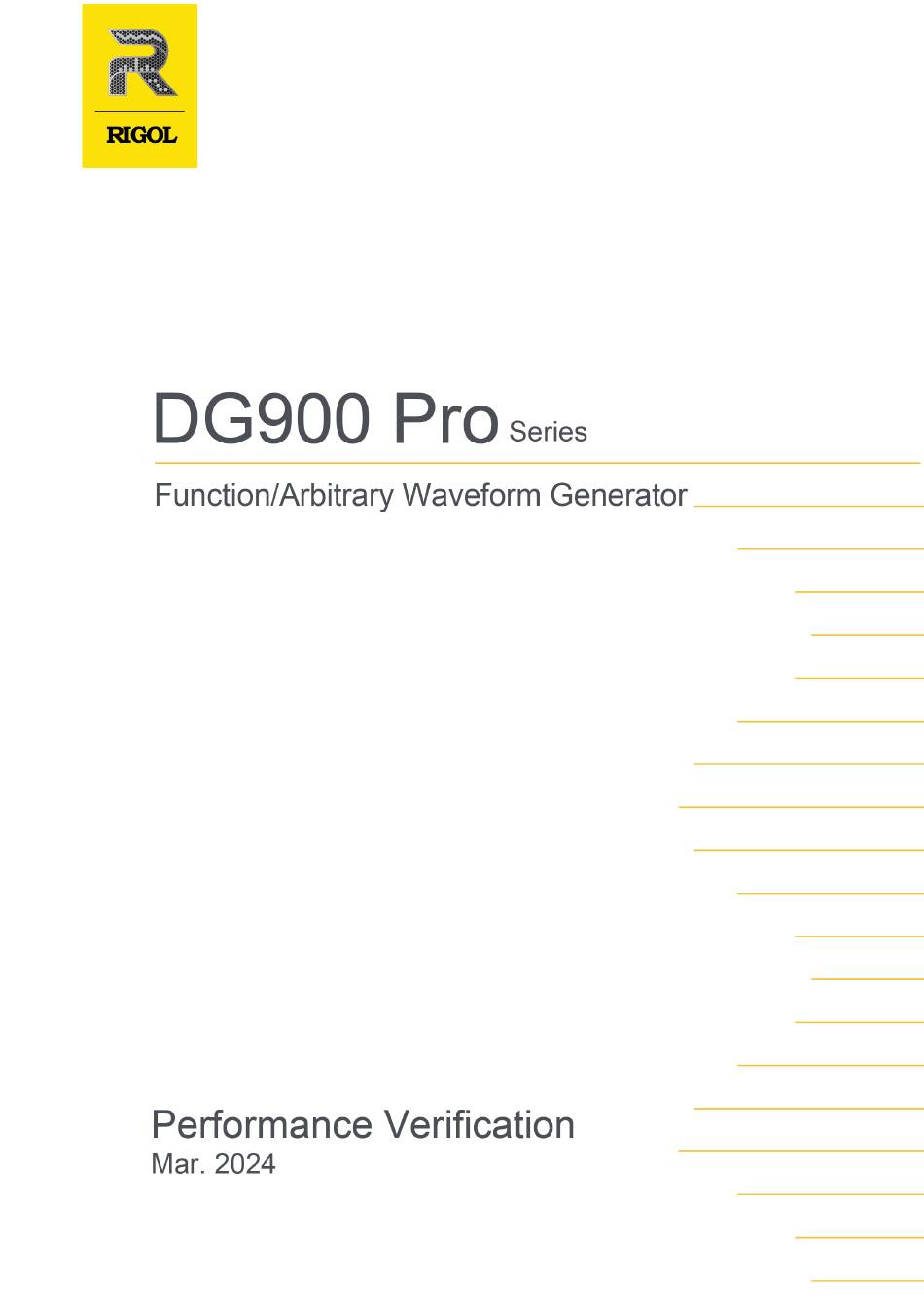

Rigol DG900 Pro Series Manual
Rigol DG900 Pro Series Manual

Rigol DG900 Pro Series Manual

Function/arbitrary waveform generator
Hide thumbs Also See for DG900 Pro Series:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG900 Pro Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Rigol DG900 Pro Series

  • Page 2 • RIGOL products are covered by P.R.C. and foreign patents, issued and pending. • RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at the company's sole decision. • Information in this publication replaces all previously released materials.
  • Page 3: Table Of Contents

    4.4.3 Test Record Form ........................16 4.5 Harmonic Distortion Test ........................17 4.5.1 Specification ...........................17 4.5.2 Test Procedures ........................17 4.5.3 Test Record Form ........................19 4.6 Spurious Signal Test ......................... 4.6.1 Specification ...........................21 Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG900 Pro Performance Verification...
  • Page 4 ........................23 4.7.3 Test Record Form ........................24 4.8 Overshoot Test ........................... 4.8.1 Specification ...........................25 4.8.2 Test Procedures ........................25 4.8.3 Test Record Form ........................26 5 Appendix: Test Record Form ..................27 DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 5: Safety Requirement

    Do Not Operate With Suspected Failures. If you suspect that any damage may occur to the instrument, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel.
  • Page 6: Safety Notices And Symbols

    Do not expose the battery (if available) to high temperature or fire. Keep it out of the reach of children. Improper change of a battery (lithium battery) may cause an explosion. Use the RIGOL specified battery only. • Handle with Caution.
  • Page 7 It calls attention to an operation, if not correctly performed, could result in damage to the product or other devices connected to the product. Safety Symbols on the Product: Hazardous Safety Warning Protective Earth Chassis Ground Test Ground Voltage Terminal Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG900 Pro Performance Verification...
  • Page 8: Document Overview

    Content Conventions in this Manual DG900 Pro Series Function/Arbitrary Waveform Generator includes the following models. Unless otherwise specified, this manual takes DG922 Pro as an example to illustrate the methods for the performance verification test of DG900 Pro series. Max. Output Model No.
  • Page 9: Overview

    Overshoot measurement function Cable BNC (m)-BNC (m) Cable BNC (m)-Dual Banana Plug (m) 50 Ω Load 50 Ω/1 W Power Sensor -35 dBm to +20 dBm Agilent N8482A Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG900 Pro Performance Verification...
  • Page 10: Test Considerations

    Specifications The specification of each test item is provided in this manual. For other technical DG900 Pro Data Sheet (download it from RIGOL website: parameters, refer to www.rigol.com All the specifications are valid only when the instrument has been operating for more than 20 minutes within the specified operating temperature range (23℃±5℃).
  • Page 11: Performance Verification Test

    Performance Verification Test Performance Verification Test This chapter takes the CH1 of DG922 Pro as an example to illustrate the performance verification test methods of DG900 Pro series. The testing methods are also applicable to CH2. Frequency Accuracy Test 4.1.1...
  • Page 12: Test Record Form

    0.999999 MHz to 1.000001 MHz Harmonic 0.999999 MHz to 1.000001 MHz Note : ±10 of the setting value (except Arb and Sequence), 0℃ to 40℃ AC Amplitude Accuracy Test 4.2.1 Specification DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 13: Test Procedures

    DG900 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 4. Set up the DG900 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"...
  • Page 14: Test Record Form

    20 mVpp Frequency: 1 6.3 mVrms to 7.8 mVrms 100 mVpp 34.3 mVrms to 36.4 mVrms Offset: 0 Vdc Impedance: 174.3 mVrms to 179.3 500 mVpp 50 Ω mVrms DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 15: Dc Offset Accuracy Test

    ±(1% of |setting value| + 2 mVdc + 0.5% of amplitude (Vpp)) (into 50 Ω) Specification ±(1% of |setting value| + 5 mVdc + 1% of amplitude (Vpp)) (into HighZ) Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG900 Pro Performance Verification...
  • Page 16: Test Procedures

    DG900 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 4. Set up the DG900 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"...
  • Page 17: Test Record Form

    -2.552 Vdc to -2.448 Vdc -1 Vdc -1.037 Vdc to -0.963 Vdc Amplitude: 5 -500 mVdc -0.532 Vdc to -0.468 Vdc Impedance: 0 Vdc -0.027 Vdc to +0.027 Vdc 50 Ω Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG900 Pro Performance Verification...
  • Page 18: Ac Flatness Test

    The test method also applies to CH2. Then use the BNC-dual banana plug cable to connect the 50 Ω load and the voltage input terminal of the digital multimeter. DG900 Pro Digital Multimeter 50 Ω Load DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 19 DG900 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 3. Set up the DG900 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"...
  • Page 20: Test Record Form

    1 MHz ±0.1 dB 10 MHz ±0.2 dB Amplitude: 0 50 MHz ±0.5 dB Impedance: 50 Ω ±1 dB 100 MHz ±1 dB 200 MHz Channel: CH2 = _________ DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 21: Harmonic Distortion Test

    DG900 Pro to the RF input terminal of the spectrum analyzer. This case takes CH1 as an example. The test method also applies to CH2. DG900 Pro Spectrum Analyzer Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG900 Pro Performance Verification...
  • Page 22 DG900 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 3. Set up the DG900 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"...
  • Page 23: Test Record Form

    Setting Value Result (Fundamental 1 MHz <-55 dBc Wave): Waveform: Sine Amplitude: (Fundamental 0 dBm 10 MHz <-50 dBc Wave): Offset: 0 50 MHz (Fundamental <-40 dBc Wave): Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG900 Pro Performance Verification...
  • Page 24: Spurious Signal Test

    : Calculation Result = Measured Value for the n Harmonic-Measured Value for the Fundamental Wave Note : If the calculation result is greater than the specification, the test fails. Spurious Signal Test DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 25: Specification

    DG900 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 3. Set up the DG900 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"...
  • Page 26: Test Record Form

    10 MHz 0 Hz 100 MHz <-60 dBc 50 MHz 0 Hz 150 MHz <-50 dBc 200 MHz (for DG922 Pro 0 Hz 500 MHz <-32 dBc only) DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 27: Rise/Fall Time Test

    DG900 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 3. Set up the DG900 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"...
  • Page 28: Test Record Form

    Offset: 0 Vdc Channel: CH2 Setting Measured Value Limit Pass/Fail Waveform: Square Rise Time ≤3 ns Frequency: 1 MHz Amplitude: 0 dBm Fall Time ≤3 ns Offset: 0 Vdc DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 29: Overshoot Test

    DG900 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 3. Set up the DG900 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"...
  • Page 30: Test Record Form

    Frequency: 1 MHz <5% Amplitude: 0 dBm Offset: 0 Vdc Channel: CH2 Setting Measured Value Limit Pass/Fail Waveform: Square Frequency: 1 MHz <5% Amplitude: 0 dBm Offset: 0 Vdc DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 31: Appendix: Test Record Form

    Appendix: Test Record Form Appendix: Test Record Form RIGOL DG900 Pro Series Function/Arbitrary Waveform Generator Performance Verification Test Record Form Model: ________________ Tested by: ________________ Test Date: ________________ Frequency Accuracy Test Channel: CH1 Measured Waveform Setting Pass/Fail Limit Value Sine 0.999999 MHz to 1.000001 MHz...
  • Page 32 3.4995 mVrms to 3.5716 10 Vpp mVrms Note : 1 kHz Sine, amplitude > 1 mVpp, 0 Vdc offset, unit: Vpp. ±(1% of the setting value + 2 mVpp). DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 33 : the offset limit value is calculated from the offset setting value ± permissible error. The permissible error is calculated from the specification "±(1% of |the setting value| + 2 mVdc + 0.5% of the amplitude (Vpp))". Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG900 Pro Performance Verification...
  • Page 34 ±1 dB 200 MHz Note : Calculation Result = Amplitude Measured Value - P Note : for DG912 Pro and DG922 Pro only. Note : DG922 Pro only. DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 35 Calculation Frequency Measured Setting Limit Pass/Fail Setting Value Result (Fundamental Waveform: 1 MHz <-55 dBc Wave): Sine Amplitude: 0 dBm Offset: 0 (Fundamental 10 MHz <-50 dBc Wave): Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG900 Pro Performance Verification...
  • Page 36 0 Hz 100 MHz <-60 dBc 50 MHz 0 Hz 150 MHz <-50 dBc 0 Hz 500 MHz <-32 dBc 200 MHz Note : for DG922 Pro only. DG900 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 37 Frequency: 1 MHz <5% Amplitude: 0 dBm Offset: 0 Vdc Channel: CH2 Pass/ Setting Measured Value Limit Fail Waveform: Square Frequency: 1 MHz <5% Amplitude: 0 dBm Offset: 0 Vdc Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG900 Pro Performance Verification...
